Wasserdichte Schutzschalter (Unterputz / Aufputz)

main product photo
Artikel
Seien Sie der Erste, der dieses Produkt bewertet
Ab 120,92 € 101,61 €

Zur Wunschliste hinzufügen
Safe & Secure
iDeal Mastercard Maestro Visa Bancontact PayPal PostNL
Description

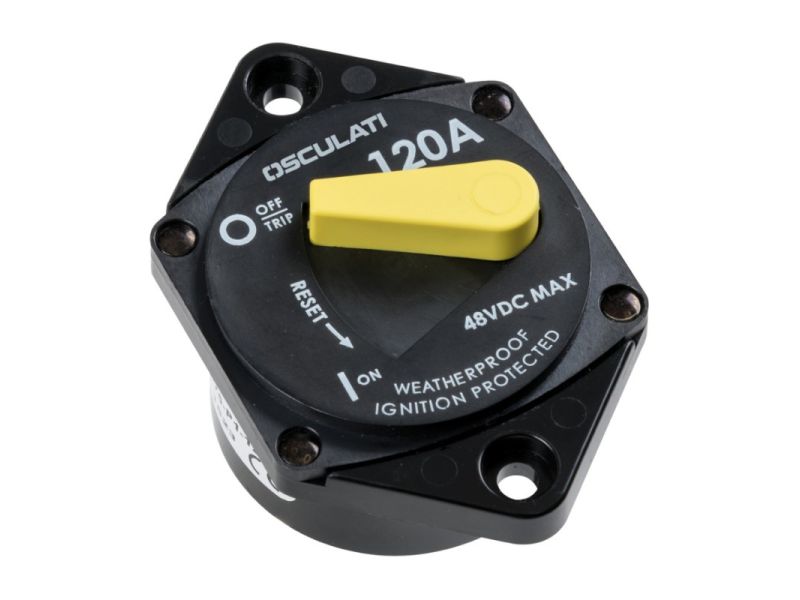

Waterproof Circuit Breaker

Re-armable and detachable via a special lever, they simultaneously serve as a fuse and switch.

Manufactured in accordance with US standards SAEJ1171 and CE 28846 “Vapor Proof”, capacity 3000 intervention cycles.

Allowed voltage: max 48 V,

Upgraded version, electrical terminals at 5/16” (instead of 1/4”) to facilitate cable connection. The recessed model requires a simple circular hole for installation. IP66 Weatherproof. From 100 A to 200 A can also be used as a general battery disconnect.

Maximum voltage capacity:

  • 5000A 14VDC;
  • 3000A 28VDC;
  • 1500A 48VDC.

Operating temperature: -40C° / 85C°

Article
nummer		 Version Max load
(A)
02.710.50 Recess fit 50
02.710.10 Recess fit 70
02.710.20 Recess fit 100*
02.710.20 Recess fit 150*
02.710.40 Recess fit 150*
02.710.41 Recess fit 200*
02.711.50 External 50
02.711.10 External 70
02.711.20 External 100*
02.711.40 External 150*
02.711.41 External 200*

* Can also be used as main battery switch.


Spezifikationen
Brand
Osculati
