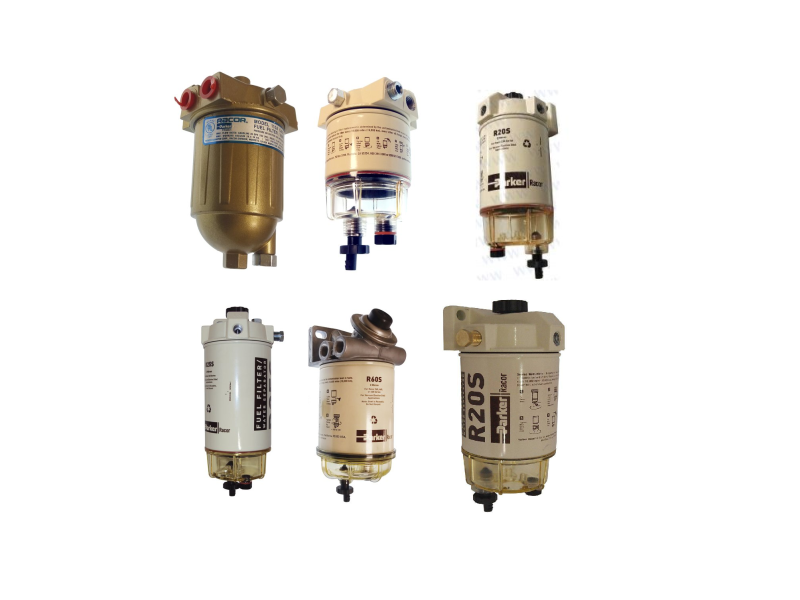

Diesel filter Racor
(1) Pressure installations apply up to the maximum PSI shown
(2) Models with integrated priming pumps are not recommended for gasoline applications
(3) Micron rating replacement element can be specified as "S" for 2 microns = "T" for 10 microns or "P" for 30 microns.
Bestell nummer |
RAC110A | RAC120AS | RAC230R2 | RAC245R2 | RAC460R2 | RAC490R2 |
Capacity (l/h) |
57 | 57 | 114 | 170 | 227 | 341 |
Filter element type |
RACR11T | RACR12 | RACR20 | RACR25 | RACR60 | RACR90 |
Diesel | yes | yes | yes | yes | yes | yes |
Gasoline | yes | yes | no | no | no | no |
Height (mm) |
152 | 165 | 229 | 267 | 279 | 300 |
Width (mm) |
81 | 81 | 102 | 102 | 114 | 114 |
Depth (mm) |
81 | 81 | 102 | 102 | 121 | 121 |
Inlet size |
1/4” NPT |
1/4” NPT |
1/4” NPT |
1/4” NPT |
3/8” NPT |
3/8” NPT |
Weight (kg) |
0,59 | 0,59 | 0,9 | 1 | 1,3 | 1,4 |
Pressure loss (bar) |
0,01 | 0,01 | 0,02 | 0,04 | 0,03 | 0,06 |
Max pressure (psi) |
100 | 7 | 30 | 30 | 30 | 30 |
Number of ports |
4 | 4 | 3 | 3 | 4 | 4 |
Water sensor option |
no | yes | yes | yes | yes | yes |
