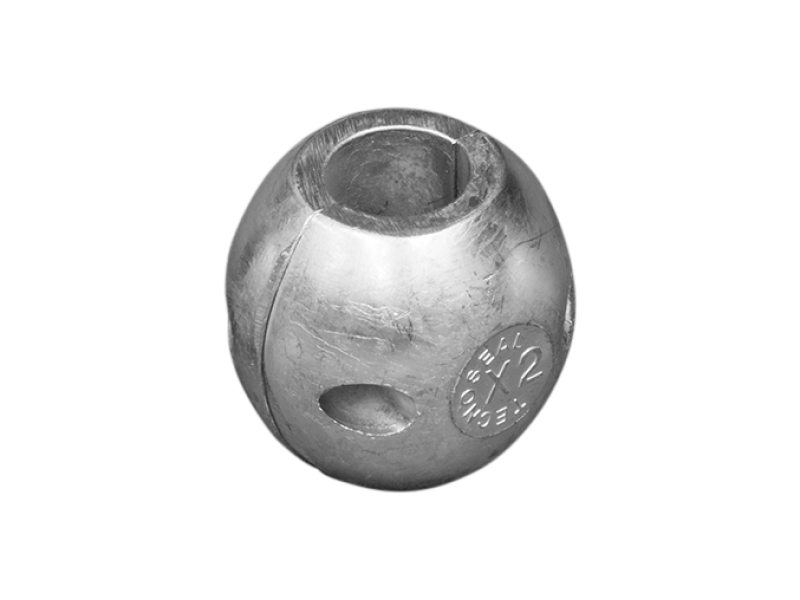

Shaft Anodes (USA Type)
| Article number |
Weight (kg) |
Shaft size Ø1 |
h (mm) |
Ø (mm) |
||
| X-1 | TEN00500USA | ZN | 0,48 | 3/4’’ (19,1 mm) |
51,0 | 54,0 |
| TEN00500USAAL | AL | 0,19 | ||||
| TEN00500USAMG | MG | 0,12 | ||||
| X-2 | TEN00501USA | ZN | 0,43 | 7/8” (22,2 mm) |
51,0 | 54,0 |
| TEN00501USAAL | AL | 0,17 | ||||
| TEN00501USAMG | MG | 0,11 | ||||
| D-25 | TEN00502USA | ZN | 0,41 | 25 mm | 51,0 | 54,0 |
| TEN00502USAAL | AL | 0,16 | ||||
| TEN00502USAMG | MG | 0,10 | ||||
| X-3 | TEN00503USA | ZN | 0,40 | 1’’ (25,5 mm) |
51,0 | 54,0 |
| TEN00503USAAL | AL | 0,16 | ||||
| TEN00503USAMG | MG | 0,10 | ||||
| D-28 | TEN00504USA | ZN | 0,44 | 28 mm | 56,0 | 58,0 |
| TEN00504USAAL | AL | 0,11 | ||||
| TEN00504USAMG | MG | 0,11 | ||||
| X-4 | TEN00505USA | ZN | 0,36 | 1-1/8” (28,6 mm) |
51,0 | 54,0 |
| TEN00505USAAL | AL | 0,14 | ||||
| TEN00505USAMG | MG | 0,09 | ||||
| D-30 | TEN00506USA | ZN | 0,73 | 30 mm | 67,0 | 63,0 |
| TEN00506USAAL | AL | 0,29 | ||||
| TEN00506USAMG | MG | 0,18 | ||||
| X-5 | TEN00507USA | ZN | 0,48 | 1-1/4” (31,8 mm) |
64,0 | 58,0 |
| TEN00507USAAL | AL | 0,19 | ||||
| TEN00507USAMG | MG | 0,12 | ||||
| X-6 D-35 |
TEN00509USA | ZN | 0,70 | 35 mm | 67,0 | 66,0 |
| TEN00509USAAL | AL | 0,29 | ||||
| TEN00509USAMG | MG | 0,18 | ||||
| X-7 | TEN00510USA | ZN | 0,62 | 1-1/2” (38,1 mm) |
67,0 | 66,0 |
| TEN00510USAAL | AL | 0,25 | ||||
| TEN00510USAMG | MG | 0,16 | ||||
| D-40 | TEN00511USA | ZN | 1,10 | 40 mm | 76,0 | 82,0 |
| TEN00511USAAL | AL | 0,43 | ||||
| TEN00511USAMG | MG | 0,15 | ||||
| X-8 | TEN00511MUSA | ZN | 1,36 | 1-3/4” (44,5 mm) |
76,0 | 82,0 |
| TEN00511MUSAAL | AL | 0,54 | ||||
| TEN00511MUSAMG | MG | 0,34 | ||||
| D-45 | TEN00512USA | ZN | 1,10 | 45 mm | 76,0 | 82,0 |
| TEN00512USAAL | AL | 0,43 | ||||
| TEN00512USAMG | MG | 0,27 | ||||
| D-48 | TEN00512MUSA | ZN | 1,05 | 48 mm | 76,0 | 82,0 |
| TEN00512MUSAAL | AL | 0,40 | ||||
| TEN00512MUSAMG | MG | 0,25 | ||||
| D-50 | TEN00513USA | ZN | 1,09 | 50 mm | 76,0 | 82,0 |
| TEN00513USAAL | AL | 0,43 | ||||
| TEN00513USAMG | MG | 0,27 | ||||
| X-9 | TEN00514USA | ZN | 1,10 | 2” (50,8 mm) |
83,0 | 82,0 |
| TEN00514USAAL | AL | 0,43 | ||||
| TEN00514USAMG | MG | 0,28 | ||||
| X-10 | TEN00516USA | ZN | 2,82 | 2-1/4” (57,1 mm) |
102,0 | 107,0 |
| TEN00516USAAL | AL | 1,11 | ||||
| D-60 | TEN00517USA | ZN | 2,60 | 60 mm | 102,0 | 107,0 |
| TEN00517USAAL | AL | 1,00 | ||||
| TEN00517USAMG | MG | 0,65 | ||||
| X-11 | TEN00518USA | ZN | 2,40 | 2-1/2” (63,5 mm) |
102,0 | 107,0 |
| TEN00518USAAL | AL | 0,94 | ||||
| X-12 | TEN00520USA | ZN | 3,20 | 2-3/4” (69,9 mm) |
96,0 | 122,0 |
| TEN00520USAAL | AL | 1,25 | ||||
| X-13 | TEN00521MUSA | ZN | 2,70 | 3” (76,2 mm) |
96,0 | 122,0 |
| TEN00521MUSAAL | AL | 1,05 | ||||
| X-14 | TEN00523USA | ZN | 3,54 | 3-1/4” (82,6 mm) |
95,0 | 130,0 |
| X-15 | TEN00524USA | ZN | 3,08 | 3-1/2” (88,9 mm) |
95,0 | 130,0 |
| X-16 | TEN00525USA | ZN | 3,99 | 3-3/4” (95,3 mm) |
95,0 | 142,0 |
| X-17 | TEN00526USA | ZN | 3,27 | 4” (101,6 mm) |
95,0 | 142,0 |
| X-18 | TEN00528USA | ZN | 3,72 | 4-1/2” (114,3 mm) |
95,0 | 160,0 |
| X-19 | TEN00529USA | ZN | 4,26 | 5” (127 mm) |
95,0 | 171,0 |
| X-20 | TEN00530USA | ZN | 4,99 | 5-1/2” (139,7 mm) |
95,0 | 184,0 |
| X-21 | TEN00531USA | ZN | 5,44 | 6” (152,4 mm) |
95,0 | 197,0 |
| X-22 | TEN00532USA | ZN | 6,35 | 6-1/2” (165,1 mm) |
95,0 | 209,0 |
