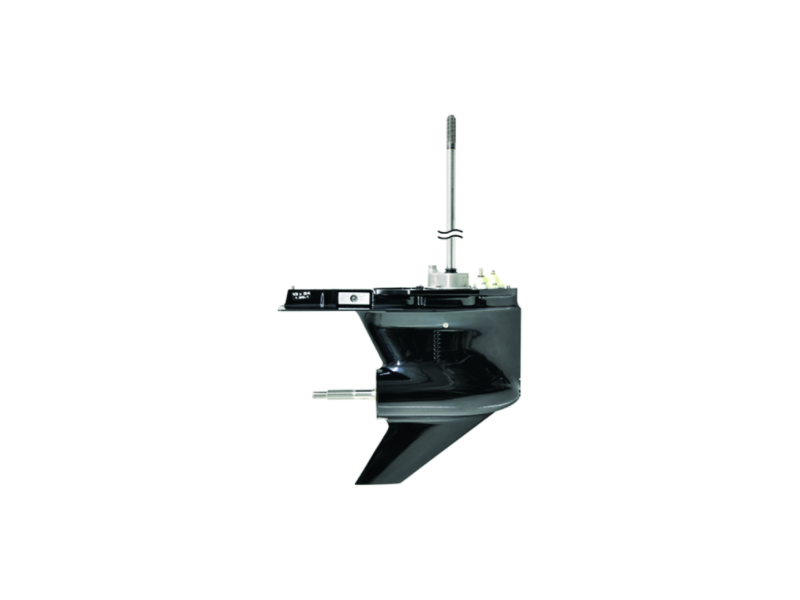

MERCURY VERADO 135-200 HP L4 + VERADO 200-275 HP L6 + VERADO 300 HP GEARCASES
VERADO 135-200 L4 OUTBOARD GEARCASES
1600-880686T23
Black, RH, 2.08:1 gear ratio. 20" (L) long shaft length. 13 pinion teeth.
Fits Mercury 135, 150, 175, 200 hp L4 Verado
1600-880686T24
Black, RH, 2.08:1 gear ratio. 25" (XL) extra long shaft length. 13 pinion teeth.
Fits Mercury 135, 150, 175, 200 hp L4 Verado
1600-880686T25
Black, LH, 2.08:1 gear ratio. 25" (CXL) extra long shaft length. 13 pinion teeth.
Fits Mercury 135, 150, 175, 200 hp L4 Verado
VERADO 200-275 L6 OUTBOARD GEARCASES
1600-880686T13
Black, 1.85:1 gear ratio, 20 inch. 13 pinion teeth. (L model) driveshaft length, right
hand rotation. Fits the 6 cylinder Verado with 4.80 inch torpedo diameter
1600-880686T14
Black, 1.85:1 gear ratio, 25 inch. 13 pinion teeth. (XL model) driveshaft length, right
hand rotation. Fits the 6 cylinder Verado with 4.80 inch torpedo diameter
1600-880686T15
Black, 1.85:1 gear ratio, 25 inch. 13 pinion teeth. (CXL model) driveshaft length, left
hand counter rotation. Fits the 6 cylinder Verado with 4.80 inch torpedo diameter
1600-880686T16
Black, 1.85:1 gear ratio, 30 inch. 13 pinion teeth. (XXL model) driveshaft length,
right hand rotation. Fits the 6 cylinder Verado with 4.80 inch torpedo diameter
1600-880686T17
Black, 1.85:1 gear ratio, 30 inch. 13 pinion teeth. (CXXL model) driveshaft length,
left hand counter rotation. Fits the 6 cylinder Verado with 4.80 inch torpedo diameter
VERADO 300 L6 OUTBOARD GEARCASES
1600-880686T54
Black, 1.75:1 gear ratio, 20 inch. 12 pinion teeth (L model) driveshaft length, right
hand counter rotation. Fits the 6 cylinder Verado with 4.80 inch torpedo diameter.
1600-880686T57
Black, 1.75:1 gear ratio, 20 inch, 12 pinion teeth, (CL model) driveshaft length, left
hand counter rotation. Fits the 6 cylinder Verado with 4.80 inch torpedo diameter.
1600-880686T55
Black, 1.75:1 gear ratio, 20 inch, 12 pinion teeth, (XL model) driveshaft length, right
hand counter rotation. Fits the 6 cylinder Verado with 4.80 inch torpedo diameter.
1600-880686T58
Black, 1.75:1 gear ratio, 25 inch, 12 pinion teeth, (CXL model) driveshaft length, left
hand counter rotation. Fits the 6 cylinder Verado with 4.80 inch torpedo diameter.
1600-880686T56
Black, 1.75:1 gear ratio, 30 inch, 12 pinion teeth, (XXL model) driveshaft length, right hand counter rotation. Fits the 6 cylinder Verado with 4.80 inch torpedo diameter.
1600-880686T59
Black, 1.75:1 gear ratio, 30 inch, 12 pinion teeth, (CXXL model) driveshaft length,
left hand counter rotation. Fits the 6 cylinder Verado with 4.80 inch torpedo diameter.
