F20 / F25
| Nummer: | Bestelnummer: | Yamaha OEM: | Omschrijving: |
| 1 | PAGB/T3452.1-92 | 93210-26130 | O ring |
| 2 | PAF25-04000017 | 61N-44362-10 | Tube water |
| 2 | PAF25-04000017S | 61N-44362-00 | Tube water small |
| 3 | PAF25-04000016 | 65W-44328-00 | Fixed plate waterpump |
| 4 | PAGB/T5782-2000 | Bolt | |
| 5 | PAGB/T97.1-85 | Washer | |
| 6 | PAF25-04050004 | 6L2-44367-00 | Damper water pipe |
| 7 | PAF25-04050001 | 61N-44311-01 | Shell water pump |
| 8 | PAF25-04050002 | 61N-44322-01 | Shell inner |
| 9 | PAF25-04050003 | 93210-45161 | O ring |
| 10 | PAF25-04050000 | Shell assy water pump | |
| 11 | PAF25-04040000 | 6H4-44352-02 | Impeller assy |
| 12 | PAF25-04000014 | 61N-44323-00 | Outer plate |
| 13 | PAGB/T5783-2000 | Bolt | |
| 14 | PAGB/T97.1-85 | Washer | |
| 15 | PAF25-04000012 | 65W-44176-00 | Plate oring |
| 16 | PAF15-06020004 | 93210-06ME6 | O ring |
| 17 | PAF25-04000013 | 61N-45127-00 | Water seal |
| 18 | PAF25-04000007 | 93604-10M03 | Pin dowel |
| 19 | PAF25-04000008 | 65W-45331-00-5B | Base drive shaft |
| 20 | PAF25-04000009 | 61N-45315-00 | Seal |
| 21 | PAF25-04010003 | 93101-22067 | Oil seal drive shaft |
| 22 | PAF25-04010000 | 61N-45510-10 | Drive shaft assy |
| 22 | PAF25-04010000S | 61N-45510-00 | Drive shaft assy small |
| 23 | PAF25-04000015 | 90280-03024 | Semicicular key |
| 24 | PAHI-CAP32004JRKOYO | 93332-000W5 | Housing bearing |
| 25 | PAF25-04000003-1 | 61N-45587-00-07 | Shim t:0.7mm |
| 25 | PAF25-04000003-2 | 61N-45587-00-10 | Shim t:1.0mm |
| 25 | PAF25-04000003-3 | 61N-45587-00-11 | Shim t:1.1mm |
| 25 | PAF25-04000003-4 | 61N-45587-00-12 | Shim t:1.2mm |
| 25 | PAF25-04000003-5 | 61N-45587-00-13 | Shim t:1.3mm |
| 25 | PAF25-04000003-6 | 61N-45587-00-14 | Shim t:1.4mm |
| 25 | PAF25-04000003-7 | 61N-45587-00-15 | Shim t:1.5mm |
| 25 | PAF25-04000003-8 | 61N-45587-00-16 | Shim t:1.6mm |
| 26 | PAF25-04000002 | 61N-45536-00 | Bushing nylon |
| 27 | PAF25-04030000L | 65W-44150-10 | Cam assy shift rod |
| 27 | PAF25-04030000S | 65W-44150-00 | Cam assy shift rod small |
| 28 | PAF4-03000023 | 90340-08M04 | Plug hole oil |
| 29 | PAF4-03000024 | 93210-06ME6 | Gasket |
| 30 | PAGB/T889.1-2000 | Nut locking | |
| 31 | PAF25-04000023 | 6L2-45215-00 | Water inlet B |
| 32 | PAF25-04000031 | 688-45341-00 | Plug drain |
| 33 | PAF25-04000001 | 61N-45311-02-4D | Lower casing |
| 34 | PAGB/T5782-M6X125 | Bolt | |
| 35 | PAGB/T861.1-87 | 92990-06300 | Washer locking |
| 36 | PAF15-06000004 | 61N-45251-00 | Anode lower |
| 37 | PAGB/T5783-2000 | Bolt | |
| 38 | PAF25-04000021 | 61N-45214-00 | Tab course |
| 39 | PAGB/T820-M5X30 | Screw pan head | |
| 40 | PAF25-04000022 | 6L2-45214-00 | Water inlet A |
| 41 | PAF25-04000006 | 90179-10M14 | Nut pinion |
| 42 | PAF25-04000005 | 61N-45551-00 | Pinion |
| 43 | PAF25-04000004-1 | 6L2-45567-10 | Shim t:1.0mm |
| 43 | PAF25-04000004-2 | 6L2-45567-11 | Shim t:1.1mm |
| 43 | PAF25-04000004-3 | 6L2-45567-12 | Shim t:1.2mm |
| 43 | PAF25-04000004-4 | 6L2-45567-13 | Shim t:1.3mm |
| 43 | PAF25-04000004-5 | 6L2-45567-14 | Shim t:1.4mm |
| 44 | PANTN4T-302051L | 93332-00005 | Taper roller bearing |
| 45 | PAF25-04020000 | 61N-45560-00 | Gear forward |
| 46 | PAF25-04060003 | 664-45631-02 | Clutch dog |
| 47 | PAF15-06070004 | 90250-05010 | Pin clutch |
| 48 | PAF15-06070005 | 648-45633-00 | Ring clutch |
| 49 | PAF25-04060006 | 648-45635-00 | Plunger shaft |
| 50 | PAF25-04060002 | 90501-10065 | Spring clutch |
| 51 | PAF25-04060001 | 612-45611-00 | Shaft propeller |
| 52 | PAF25-04060007 | 90201-20417 | Plate reverse gear |
| 53 | PAF25-04060000 | Propeller shaft assy | |
| 54 | PAF25-04070004 | 61N-45571-00 | Gear reverse |
| 55 | PAF25-04070005-1 | 6L2-45577-00-10 | Shim t:1.0mm |
| 55 | PAF25-04070005-2 | 6L2-45577-00-11 | Shim t:1.1mm |
| 55 | PAF25-04070005-3 | 6L2-45577-00-12 | Shim t:1.2mm |
| 55 | PAF25-04070005-4 | 6L2-45577-00-13 | Shim t:1.3mm |
| 56 | PAF25-04070002 | 93210-64ME7 | O ring |
| 57 | REC93306-00612 | 93306-00612 | Ball bearing |
| 58 | PAF25-04070001 | 61N-45361-01-4D | Cover lower casing |
| 59 | PANTN HK2016HU | 93315-22004 | Roller gearing |
| 60 | PAF25-04070006 | 93101-20M07 | Oil seal |
| 61 | PAF25-04070003 | 93210-65M50 | O ring |
| 62 | PAGB/T5783-2000 | Bolt | |
| 63 | PAF25-04070000 | Cover assy lower casing | |
| 64 | PAF2020 | 93315-220V7 | Needle bearing |
| 65 | PAF25-04090000L | 65W-45300-10-4D | Complete gear housing large |
| 65 | PAF25-04090000S | 65W-45300-00-4D | Complete gear housing small |
| 66 | PAF15-00000006 | 93606-11M24 | Pin dowel |
| 67 | PAF25-02000019 | 90202-12060 | Washer nylon |
| 68 | PAF25-02000004L | 65W-44361-10 | Tube water large |

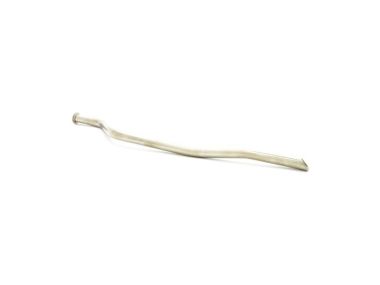

| 68 | PAF25-02000004S | 65W-44361-00 | Tube water small |
| 69 | PAF25-02000005 | 90430-12072 | Gasket water pipe |
| 70 | PAGB/T97.1-85 | 92995-10600 | Washer |
| 71 | PAF25-00000011 | 90105-10M12 | Bolt |
| 72 | PAF25-04000024 | 6L2-45987-01 | Spacer propeller |
| 73 | PAF25-04080000 | 664-45947-01-EL | Propeller assy |
| 74 | PAF25-04000025 | 689-45997-00 | Spacer |
| 75 | PAGB/T97.1-85 | 92990-14200 | Washer |
| 76 | PAF25-04000027 | 90171-14013 | Nut |
| 77 | PAGB/T91-1.6X12 | 91490-30022 | Pin cotter |
-
Yamaha/Parsun Outer Plate 20/25/30 HP (61N-44323-00)Ab 26,50 € 22,27 €
-
Yamaha / Parsun Screw (703-44189-10-00)Ab 6,84 € 5,74 €
-
Yamaha Komplette Kleine Getriebe F20 - F25 PS 65W-45300-00-4DAb 978,55 € 822,31 €
-
Yamaha / Parsun Nadellager 20 / 25 / 30 PS 93315-220V7Ab 41,26 € 34,67 €
-
Yamaha Kugellager 20 / 25 / 30 PS 93306-00612Ab 25,52 € 21,45 €
Yamaha F20 - F25 Saitenhalter Teile finden Sie bei Allesmarine.nl. Wir haben den größten Vorrat und am nächsten Tag ist alles in Ihrem Haus.
| Nummer: | Bestellnummer: | Yamaha OEM: | Beschreibung: |
| 1 | PAGB/T3452.1-92 | 93210-26130 | O ring |
| 2 | PAF25-04000017 | 61N-44362-10 | Tube water |
| 2 | PAF25-04000017S | 61N-44362-00 | Tube water small |
| 3 | PAF25-04000016 | 65W-44328-00 | Fixed plate waterpump |
| 4 | PAGB/T5782-2000 | Bolt | |
| 5 | PAGB/T97.1-85 | Washer | |
| 6 | PAF25-04050004 | 6L2-44367-00 | Damper water pipe |
| 7 | PAF25-04050001 | 61N-44311-01 | Shell water pump |
| 8 | PAF25-04050002 | 61N-44322-01 | Shell inner |
| 9 | PAF25-04050003 | 93210-45161 | O ring |
| 10 | PAF25-04050000 | Shell assy water pump | |
| 11 | PAF25-04040000 | 6H4-44352-02 | Impeller assy |
| 12 | PAF25-04000014 | 61N-44323-00 | Outer plate |
| 13 | PAGB/T5783-2000 | Bolt | |
| 14 | PAGB/T97.1-85 | Washer | |
| 15 | PAF25-04000012 | 65W-44176-00 | Plate oring |
| 16 | PAF15-06020004 | 93210-06ME6 | O ring |
| 17 | PAF25-04000013 | 61N-45127-00 | Water seal |
| 18 | PAF25-04000007 | 93604-10M03 | Pin dowel |
| 19 | PAF25-04000008 | 65W-45331-00-5B | Base drive shaft |
| 20 | PAF25-04000009 | 61N-45315-00 | Seal |
| 21 | PAF25-04010003 | 93101-22067 | Oil seal drive shaft |
| 22 | PAF25-04010000 | 61N-45510-10 | Drive shaft assy |
| 22 | PAF25-04010000S | 61N-45510-00 | Drive shaft assy small |
| 23 | PAF25-04000015 | 90280-03024 | Semicicular key |
| 24 | PAHI-CAP32004JRKOYO | 93332-000W5 | Housing bearing |
| 25 | PAF25-04000003-1 | 61N-45587-00-07 | Shim t:0.7mm |
| 25 | PAF25-04000003-2 | 61N-45587-00-10 | Shim t:1.0mm |
| 25 | PAF25-04000003-3 | 61N-45587-00-11 | Shim t:1.1mm |
| 25 | PAF25-04000003-4 | 61N-45587-00-12 | Shim t:1.2mm |
| 25 | PAF25-04000003-5 | 61N-45587-00-13 | Shim t:1.3mm |
| 25 | PAF25-04000003-6 | 61N-45587-00-14 | Shim t:1.4mm |
| 25 | PAF25-04000003-7 | 61N-45587-00-15 | Shim t:1.5mm |
| 25 | PAF25-04000003-8 | 61N-45587-00-16 | Shim t:1.6mm |
| 26 | PAF25-04000002 | 61N-45536-00 | Bushing nylon |
| 27 | PAF25-04030000L | 65W-44150-10 | Cam assy shift rod |
| 27 | PAF25-04030000S | 65W-44150-00 | Cam assy shift rod small |
| 28 | PAF4-03000023 | 90340-08M04 | Plug hole oil |
| 29 | PAF4-03000024 | 93210-06ME6 | Gasket |
| 30 | PAGB/T889.1-2000 | Nut locking | |
| 31 | PAF25-04000023 | 6L2-45215-00 | Water inlet B |
| 32 | PAF25-04000031 | 688-45341-00 | Plug drain |
| 33 | PAF25-04000001 | 61N-45311-02-4D | Lower casing |
| 34 | PAGB/T5782-M6X125 | Bolt | |
| 35 | PAGB/T861.1-87 | 92990-06300 | Washer locking |
| 36 | PAF15-06000004 | 61N-45251-00 | Anode lower |
| 37 | PAGB/T5783-2000 | Bolt | |
| 38 | PAF25-04000021 | 61N-45214-00 | Tab course |
| 39 | PAGB/T820-M5X30 | Screw pan head | |
| 40 | PAF25-04000022 | 6L2-45214-00 | Water inlet A |
| 41 | PAF25-04000006 | 90179-10M14 | Nut pinion |
| 42 | PAF25-04000005 | 61N-45551-00 | Pinion |
| 43 | PAF25-04000004-1 | 6L2-45567-10 | Shim t:1.0mm |
| 43 | PAF25-04000004-2 | 6L2-45567-11 | Shim t:1.1mm |
| 43 | PAF25-04000004-3 | 6L2-45567-12 | Shim t:1.2mm |
| 43 | PAF25-04000004-4 | 6L2-45567-13 | Shim t:1.3mm |
| 43 | PAF25-04000004-5 | 6L2-45567-14 | Shim t:1.4mm |
| 44 | PANTN4T-302051L | 93332-00005 | Taper roller bearing |
| 45 | PAF25-04020000 | 61N-45560-00 | Gear forward |
| 46 | PAF25-04060003 | 664-45631-02 | Clutch dog |
| 47 | PAF15-06070004 | 90250-05010 | Pin clutch |
| 48 | PAF15-06070005 | 648-45633-00 | Ring clutch |
| 49 | PAF25-04060006 | 648-45635-00 | Plunger shaft |
| 50 | PAF25-04060002 | 90501-10065 | Spring clutch |
| 51 | PAF25-04060001 | 612-45611-00 | Shaft propeller |
| 52 | PAF25-04060007 | 90201-20417 | Plate reverse gear |
| 53 | PAF25-04060000 | Propeller shaft assy | |
| 54 | PAF25-04070004 | 61N-45571-00 | Gear reverse |
| 55 | PAF25-04070005-1 | 6L2-45577-00-10 | Shim t:1.0mm |
| 55 | PAF25-04070005-2 | 6L2-45577-00-11 | Shim t:1.1mm |
| 55 | PAF25-04070005-3 | 6L2-45577-00-12 | Shim t:1.2mm |
| 55 | PAF25-04070005-4 | 6L2-45577-00-13 | Shim t:1.3mm |
| 56 | PAF25-04070002 | 93210-64ME7 | O ring |
| 57 | REC93306-00612 | 93306-00612 | Ball bearing |
| 58 | PAF25-04070001 | 61N-45361-01-4D | Cover lower casing |
| 59 | PANTN HK2016HU | 93315-22004 | Roller gearing |
| 60 | PAF25-04070006 | 93101-20M07 | Oil seal |
| 61 | PAF25-04070003 | 93210-65M50 | O ring |
| 62 | PAGB/T5783-2000 | Bolt | |
| 63 | PAF25-04070000 | Cover assy lower casing | |
| 64 | PAF2020 | 93315-220V7 | Needle bearing |
| 65 | PAF25-04090000L | 65W-45300-10-4D | Complete gear housing large |
| 65 | PAF25-04090000S | 65W-45300-00-4D | Complete gear housing small |
| 66 | PAF15-00000006 | 93606-11M24 | Pin dowel |
| 67 | PAF25-02000019 | 90202-12060 | Washer nylon |
| 68 | PAF25-02000004L | 65W-44361-10 | Tube water large |
| 68 | PAF25-02000004S | 65W-44361-00 | Tube water small |
| 69 | PAF25-02000005 | 90430-12072 | Gasket water pipe |
| 70 | PAGB/T97.1-85 | 92995-10600 | Washer |
| 71 | PAF25-00000011 | 90105-10M12 | Bolt |
| 72 | PAF25-04000024 | 6L2-45987-01 | Spacer propeller |
| 73 | PAF25-04080000 | 664-45947-01-EL | Propeller assy |
| 74 | PAF25-04000025 | 689-45997-00 | Spacer |
| 75 | PAGB/T97.1-85 | 92990-14200 | Washer |
| 76 | PAF25-04000027 | 90171-14013 | Nut |
| 77 | PAGB/T91-1.6X12 | 91490-30022 | Pin cotter |
