E40GMH / 40GWH

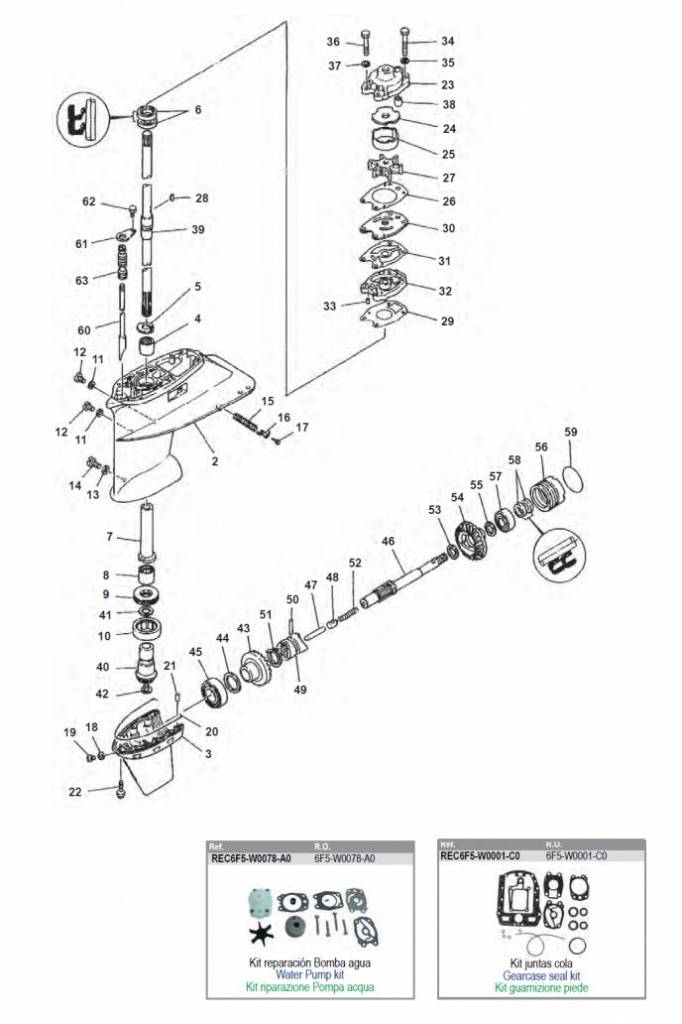

| Nummer: | Bestelnummer: | Yamaha OEM: | Omschrijving: |
| 3 | REC6F5-45312-00-4D | 6F5-45312-01-4D | CASING |
| 4 | REC93315-217U0 | 93315-217U0 | BEARING |
| 5 | REC676-45533-00 | 676-45533-00 | WASHER |
| 6 | REC93101-22M00 | 93101-22M00 | OIL SEAL |
| 8 | REC93315-324U1 | 93315-324U1 | BEARING |
| 9 | REC93342-624U0 | 93342-624U0 | BEARING |
| 10 | REC93390-000U0 | 93390-000UO | BEARING |
| 11 | REC90430-08020 | 90430-08020 | GASKET |
| 18 | REC90430-08020 | 90430-08020 | GASKET |
| 19 | REC688-45341-00 | 688-45341-10 | BOLT DRAIN |
| 20 | REC676-45314-00 | 676-45314-00 | SEAL |
| 22 23 |
REC90105-06M01 REC676-44311-00 |
90105-06M01 676-44311-00 |
BOLT Waterpomp huis |
| 26 | REC676-44315-00 | 676-44315-A1 | GASKET |
| 27 | REC6F5-44352-00 | 6F5-44352-00 | IMPELLER |
| 28 | REC90280-04M00 | 90280-04M00 | KEY WOODRUFF |
| 29 | REC676-44316-A1 | 676-44316-A1 | GASKET |
| 30 | REC676-44323-00-40 | 676-44323-40 | PLATE |
| 31 | REC676-44324-A0 | 676-44324-A1 | GASKET |
| 32 | REC676-44341-00 | 676-44341-94 | HOUSING WATER PUMP |
| 34 | REC97095-08055 | 97095-08055 | BOLT |
| 36 | REC97095-08045 | 97095-08045 | BOLT |
| 38 | REC663-44366-00 | 663-44366-00 | DAMPER WATER SEAL |
| 39 | REC676-45501-10 | 676-45501-10 | DRIVE SHAFT |
| 40 | REC6F5-45551-00 | 6F5-45551-00 | PINION (13T) |
| 41 | REC676-45587-00-70 | 676-45587-00-70 | SHIM (t:0.070mm) |
| 41 | REC676-45587-00-75 | 676-45587-00-75 | SHIM (t:0.075mm) |
| 41 | REC676-45587-00-80 | 676-45587-00-80 | SHIM (t:0.080mm) |
| 43 | REC6F5-45560-00 | 6F5-45560-00 | GEAR |
| 44 | 676-45567-00-07 | SHIM (t:0.7mm) | |
| 45 | REC93332-000U0 | 93332-000U0 | BEARING |
| 46 | REC6F6-45611-00 | 6F6-45611-00 | SHAFT PROPELLER |
| 47 | REC676-45635-00 | 676-45635-00 | PLUNGER SHIFT |
| 48 | REC663-45634-00 | 663-45634-00 | SLIDE SHIFT |
| 49 | REC663-45631-00 | 663-45631-01 | CLUTCH DOG |
| 50 | REC90250-06023 | 90250-06023 | PIN, STRAIGHT |
| 51 | REC663-45633-00 | 663-45633-00 | RING, CROSS PIN |
| 54 | REC6F5-45570-00 | 6F5-45570-00 | GEAR |
| 56 | REC676-4536-01-94 | 676-45361-01-94 | CAP LOWER CASING |
| 57 | REC93306-204Y7 | 93306-20401 | BEARING |
| 58 | REC93101-20048 | 93101-20048 | OIL SEAL |
| 63 | REC650-44147-00 | 650-44147-00 | BOOT, SHIFT ROD |
| SOL3311-115-10-P | 676-45945-62-EL | Propeller |
-
Yamaha Propeller 40 PS Pin DriveAb 215,38 € 180,99 €
-
Yamaha Slide Schiebe 40 / 55 PS 663-45634-00Ab 13,72 € 11,53 €
-
Yamaha Bolzen E40GMH - 40GWH 90105-06M01Ab 4,87 € 4,09 €
-
Lager Yamaha E40GMH - 40GWH 93306-2040117,65 € 14,83 €
-
Yamaha Stift 40 / 50 PS 676-45635-00-0015,69 € 13,18 €
-
Yamaha Tube, water 1 (67C-44361-00-00)116,98 € 98,31 €
-
Yamaha Lager E40GMH - 40GWH 93315-324U133,39 € 28,06 €
Yamaha E40GMH - 40GWH Saitenhalter Teile finden Sie bei Allesmarine.nl. Wir haben den größten Vorrat und am nächsten Tag ist alles in Ihrem Haus.
| Nummer: | Bestellnummer: | Yamaha OEM: | Beschreibung: |
| 3 | REC6F5-45312-00-4D | 6F5-45312-01-4D | CASING |
| 4 | REC93315-217U0 | 93315-217U0 | BEARING |
| 5 | REC676-45533-00 | 676-45533-00 | WASHER |
| 6 | REC93101-22M00 | 93101-22M00 | OIL SEAL |
| 8 | REC93315-324U1 | 93315-324U1 | BEARING |
| 9 | REC93342-624U0 | 93342-624U0 | BEARING |
| 10 | REC93390-000U0 | 93390-000UO | BEARING |
| 11 | REC90430-08020 | 90430-08020 | GASKET |
| 18 | REC90430-08020 | 90430-08020 | GASKET |
| 19 | REC688-45341-00 | 688-45341-10 | BOLT DRAIN |
| 20 | REC676-45314-00 | 676-45314-00 | SEAL |
| 22 23 |
REC90105-06M01 REC676-44311-00 |
90105-06M01 676-44311-00 |
BOLT Waterpomp huis |
| 26 | REC676-44315-00 | 676-44315-A1 | GASKET |
| 27 | REC6F5-44352-00 | 6F5-44352-00 | IMPELLER |
| 28 | REC90280-04M00 | 90280-04M00 | KEY WOODRUFF |
| 29 | REC676-44316-A1 | 676-44316-A1 | GASKET |
| 30 | REC676-44323-00-40 | 676-44323-40 | PLATE |
| 31 | REC676-44324-A0 | 676-44324-A1 | GASKET |
| 32 | REC676-44341-00 | 676-44341-94 | HOUSING WATER PUMP |
| 34 | REC97095-08055 | 97095-08055 | BOLT |
| 36 | REC97095-08045 | 97095-08045 | BOLT |
| 38 | REC663-44366-00 | 663-44366-00 | DAMPER WATER SEAL |
| 39 | REC676-45501-10 | 676-45501-10 | DRIVE SHAFT |
| 40 | REC6F5-45551-00 | 6F5-45551-00 | PINION (13T) |
| 41 | REC676-45587-00-70 | 676-45587-00-70 | SHIM (t:0.070mm) |
| REC676-45587-00-75 | 676-45587-00-75 | SHIM (t:0.075mm) | |
| REC676-45587-00-80 | 676-45587-00-80 | SHIM (t:0.080mm) | |
| 43 | REC6F5-45560-00 | 6F5-45560-00 | GEAR |
| 44 | 676-45567-00-07 | SHIM (t:0.7mm) | |
| 45 | REC93332-000U0 | 93332-000U0 | BEARING |
| 46 | REC6F6-45611-00 | 6F6-45611-00 | SHAFT PROPELLER |
| 47 | REC676-45635-00 | 676-45635-00 | PLUNGER SHIFT |
| 48 | REC663-45634-00 | 663-45634-00 | SLIDE SHIFT |
| 49 | REC663-45631-00 | 663-45631-01 | CLUTCH DOG |
| 50 | REC90250-06023 | 90250-06023 | PIN, STRAIGHT |
| 51 | REC663-45633-00 | 663-45633-00 | RING, CROSS PIN |
| 54 | REC6F5-45570-00 | 6F5-45570-00 | GEAR |
| 56 | REC676-4536-01-94 | 676-45361-01-94 | CAP LOWER CASING |
| 57 | REC93306-204Y7 | 93306-20401 | BEARING |
| 58 | REC93101-20048 | 93101-20048 | OIL SEAL |
| 63 | REC650-44147-00 | 650-44147-00 | BOOT, SHIFT ROD |
| SOL3311-115-10-P | 676-45945-62-EL | Propeller |
