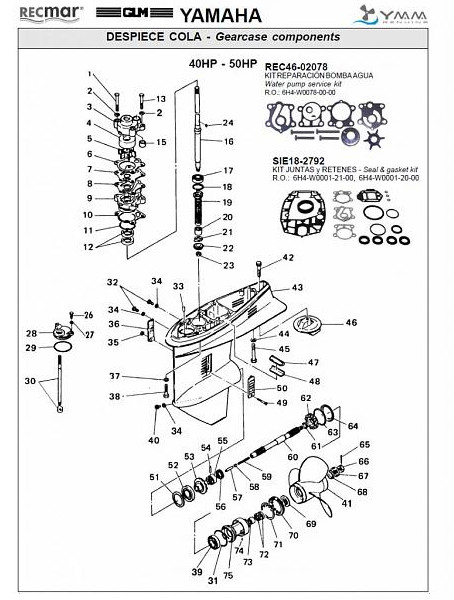

40 PS / 50 PS
| Nr: | Bestelnummer: | Yamaha OEM: | Omschrijving: |
| REC46-02078 | 6H4-W0078-00-00 | Water pump service kit | |
| SIE18-2792 | 6H4-W0001-21-00 | Seal & gasket kit | |
| 1 | REC97095-08055 | 97095-08055 | Bolt |
| 2 | REC92995-08600 | 92995-08600 | Washer |
| 3 | REC663-44311-02 | 663-44311-02 | HOUSING, WATER PUMP |
| 4 | REC663-44322-00 | 663-44322-00-00 | Insert, Cartridge |
| 5 | GLM89900 | 6H4-44352-02-00 | Impeller |
| 6 | REC663-44315-00 | 663-44315-A0-00 | Gasket |
| 7 | REC663-44323-00 | 663-44323-00-00 | Outer plate |
| 8 | REC663-44324-00 | 663-44324-A0-00 | Gasket |
| 10 | REC663-44316-A0 | 663-44316-A0-00 | Gasket |
| 11 | REC93210-41042 | 93210-41042-00 | O-ring |
| 12 | REC93101-23070 | 93101-23070-00 | Oil seal |
| 13 | GLM22502 | 97395-08045-00 | Bolt |
| 15 | REC663-44366-00 | 663-44366-00-00 | Oil seal |
| 20 | REC93315-32224 | 93315-32224-00 | Bearing |
| 21 | REC663-45552-00 | 663-45552-00-00 | Bearing |
| 22 | REC6H4-45551-00 | 6H4-45551-00-00 | pinnion |
| 23 | REC90170-12138 | 90170-12138-00 | Nut |
| 24 | REC90280-03024 | 90280-03024-00 | Key |
| 39 | REC93306-00702 | 93306-00702-00 | Bearing |
| 40 | REC688-45341-00 | 688-45341-00-00 | Plug |
| 46 | CM664-45371-01 | 664-45371-01 | Tab-trim |
| 46 | CM664-45371-01A | 664-45371-01 | Tab-trim Aluminium |
| 53 | REC6H4-45560-00 | 6H4-4556-00-00 | Gear |
| 54 | REC90250-06023 | 90250-06023-00 | Pin |
| 55 | REC663-45631-00 | 663-45631-01-00 | Clutch |
| 56 | REC663-45633-00 | 663-45633-00-00 | Ring, cross pin |
| 57 | REC676-45635-00 | 676-45635-00-00 | Pin |
| 60 | REC679-45611-00 | 679-45611-01-00 | Shaft, Propeller |
| 61 | REC90201-22429 | 90201-22429-00 | Waser |
| 62 | REC6H4-45570-00 | 6H4-45571-00-00 | Gear back |
| 66 | REC90171-16011 | 90171-16011-00 | Nut |
| 67 | GLM21225 | 92990-16200-00 | Waser |
| 68 | REC670-45997-00 | 670-45997-02-00 | Spacer |
| 69 | REC663-45987-00 | 663-45987-02-00 | Spacer |
| 70 | REC697-45384-00 | 697-45384-00-00 | Nut |
| 72 | REC93101-22067 | 93101-22067-00 | Oil seal |
| 73 | REC93317-22204 | 93317-22204-00 | Clindric bearing |
| 74 | REC90282-04010 | 90282-04010-00 | Key |
| SOL3311-121-09 | 663-45956-01-EL | Propeller |
-
Yamaha Propellerwelle 40 / 50 PS 679-45611-01-00127,80 € 107,40 €
-
Yamaha Stift 40 / 50 PS 676-45635-00-0015,69 € 13,18 €
-
Yamaha Tube, water 1 (67C-44361-00-00)116,98 € 98,31 €
Yamaha 40HP – 50HP Saitenhalter Teile finden Sie bei Allesmarine.nl. Wir haben den größten Vorrat und am nächsten Tag ist alles in Ihrem Haus.
| Nr | Bestellnummer: | R.O. | Beschreibung: |
| REC46-02078 | 6H4-W0078-00-00 | Water pump service kit | |
| SIE18-2792 | 6H4-W0001-21-00 | Seal & gasket kit | |
| 1 | REC97095-08055 | 97095-08055 | Bolt |
| 2 | REC92995-08600 | 92995-08600 | Washer |
| 3 | REC663-44311-02 | 663-44311-02 | HOUSING, WATER PUMP |
| 4 | REC663-44322-00 | 663-44322-00-00 | Insert, Cartridge |
| 5 | GLM89900 | 6H4-44352-02-00 | Impeller |
| 6 | REC663-44315-00 | 663-44315-A0-00 | Gasket |
| 7 | REC663-44323-00 | 663-44323-00-00 | Outer plate |
| 8 | REC663-44324-00 | 663-44324-A0-00 | Gasket |
| 10 | REC663-44316-A0 | 663-44316-A0-00 | Gasket |
| 11 | REC93210-41042 | 93210-41042-00 | O-ring |
| 12 | REC93101-23070 | 93101-23070-00 | Oil seal |
| 13 | GLM22502 | 97395-08045-00 | Bolt |
| 15 | REC663-44366-00 | 663-44366-00-00 | Oil seal |
| 20 | REC93315-32224 | 93315-32224-00 | Bearing |
| 21 | REC663-45552-00 | 663-45552-00-00 | Bearing |
| 22 | REC6H4-45551-00 | 6H4-45551-00-00 | pinnion |
| 23 | REC90170-12138 | 90170-12138-00 | Nut |
| 24 | REC90280-03024 | 90280-03024-00 | Key |
| 39 | REC93306-00702 | 93306-00702-00 | Bearing |
| 40 | REC688-45341-00 | 688-45341-00-00 | Plug |
| 46 | CM664-45371-01 | 664-45371-01 | Tab-trim |
| 46 | CM664-45371-01A | 664-45371-01 | Tab-trim Aluminium |
| 53 | REC6H4-45560-00 | 6H4-4556-00-00 | Gear |
| 54 | REC90250-06023 | 90250-06023-00 | Pin |
| 55 | REC663-45631-00 | 663-45631-01-00 | Clutch |
| 56 | REC663-45633-00 | 663-45633-00-00 | Ring, cross pin |
| 57 | REC676-45635-00 | 676-45635-00-00 | Pin |
| 60 | REC679-45611-00 | 679-45611-01-00 | Shaft, Propeller |
| 61 | REC90201-22429 | 90201-22429-00 | Waser |
| 62 | REC6H4-45570-00 | 6H4-45571-00-00 | Gear back |
| 66 | REC90171-16011 | 90171-16011-00 | Nut |
| 67 | GLM21225 | 92990-16200-00 | Waser |
| 68 | REC670-45997-00 | 670-45997-02-00 | Spacer |
| 69 | REC663-45987-00 | 663-45987-02-00 | Spacer |
| 70 | REC697-45384-00 | 697-45384-00-00 | Nut |
| 72 | REC93101-22067 | 93101-22067-00 | Oil seal |
| 73 | REC93317-22204 | 93317-22204-00 | Clindric bearing |
| 74 | REC90282-04010 | 90282-04010-00 | Key |
| SOL3311-121-09 | 663-45956-01-EL | Propeller |
