4 / 5 PS 2-Takt
| Nummer: | Bestelnummer: | Yamaha OEM: | Omschrijving: |
| 0 | MAL9-74503 | 6E0-W0001-C1-00 | Seal kit |
| 1 | 6E0-W0078-00 | REC6E0-W0078-A2 | Waterpomp service set |
| 3 | REC6E0-45317-00 | 6E0-45317-09 | Bushing |
| 4 | REC6E0-45316-00 | 6E0-45316-09 | Bushing |
| 5 | REC93101-10M14 | 93101-10M14 | Oil seal |
| 6 | PAGB/T276-6004C2 | 93306-004UO | BEARING |
| 7 | REC6L5-45251-02 | 6L5-45251-03 | Anode |
| 10 | REC90430-08020-00 | 90430-08020 | Gasket |
| 11 | PAF4-03000023 | 90340-08002 | CARTER PLUG |
| 13 | PAF4-00000001 | 90387-06M14 | COLLAR |
| 14 | PAF4-03000012 | 6E0-45321-01-5B | PLATE |
| 15 | PAF4-03000011 | 6E0-45315-A0 | PACKING |
| 18 | PAF4-03050001 | 6E0-45361-01-4D | CAP |
| 19 | PAGB/T276-6004-C2 | 93306-004UO | BEARING |
| 20 | REC93101-13M12 | 93101-13M12 | Oil seal |
| 21 | REC93210-48214 | 93210-48214 | O-ring |
| 23 | PAF4-03000019 | 6E0-44311-00-00 | Waterpomp huis |
| 24 | PAF4-03000018 | 6E0-44315-A0-00 | Gasket |
| 25 | PAF4-03000017 | 6E0-44322-02-00 | Inner waterpomp |
| 26 | PAF4-03000015 | 6E0-44323-00-00 | Plaat |
| 27 | PAF4-03000021 | 6E0-44366-00 | DAMPER |
| 28 | GLM89860 | 6E0-44352-00 | Impeller |
| 29 | PAF4-03000016 | 93604-09066 | PIN, DOWEL |
| 31 | PAF4-03000013 | 93604-18080 | PIN, DOWEL |
| 32 | PAF4-03000020 | 6E0-44328-00 | PLATE |
| 35 | REC6E0-45511-01 | 6E0-45511-01 | Shaft, Drive |
| 35 | REC6E0-45511-11 | 6E0-45511-11 | Shaft, Drive |
| 36 | PAF4-03000005 | 90467-08M01 | CLIP |
| 37 | REC6E0-45551-00 | 6E0-45551-00 | Pinion |
| 38 | PAGB/T896-86 | 99001-06600 | CIRCLIP |
| 39 | PAF4-03000006 | 90201-11M49 | WASHER |
| 40 | REC6E0-45560-00 | 6E0-45560-00 | Gear |
| 41 | REC6E0-45570-00 | 6E0-45570-00 | Gear |
| 43 | REC6E0-45631-00 | 6E0-45631-00 | Clutch, Dog |
| 44 | REC90250-05046 | 90250-05046 | Pin, Straight |
| 48 | REC6E0-45611-01 | 6E0-45611-01 | Shaft, Propeller |
| 49 | PAF4-03000025 | 6L5-45987-01 | SPACER |
| 51 | PAGB/T91-1.6X12 | 91490-25030 | PIN, COTTER |
| 52 | PAF4-03000026 | 90201-08M54 | WASHER |
| 55 | 6E0-45945-00 | 6E0-45945-00 | Breekpen orgineel |
-

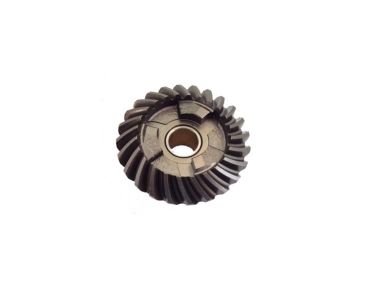

Yamaha Ritzel 5PS - 4AC/MSHKZ/AS - 5C/CMH/CS 6E0-45570-00Ab 148,45 € 124,75 €
-
Yamaha Ritzel 5PS - 4AC/MSHKZ/AS - 5C/CMH/CS 6E0-45560-00Ab 103,22 € 86,74 €
-
Yamaha Clip 4/5 PS 90467-08M01Ab 4,87 € 4,09 €
-
Yamaha Drive Shaft (Small) 4 / 5 PS (6E0-45511-01-00)Ab 68,79 € 57,81 €
-
Yamaha Drive Shaft (Long) 4 / 5 PS (6E0-45511-11-00)Ab 68,79 € 57,81 €
-
Yamaha Lager / Buchse 4/5 PS 6E0-45317-09Ab 15,69 € 13,18 €
-
Yamaha Unterlegscheibe 4/5 PS 90204-11M49Ab 4,87 € 4,09 €
-
Yamaha Zahnrad 4/5 PS 6E0-45551-00Ab 49,12 € 41,28 €
-
Yamaha Lager / Buchse 4/5 PS 6E0-45316-09Ab 27,49 € 23,10 €
-
Yamaha Simmerring 4/5 PS 93101-10M14Ab 12,74 € 10,70 €
-
Yamaha Platte 4/5 PS 6E0-44323-00Ab 17,65 € 14,83 €
Yamaha 5HP - 4AC/MSHKZ/AS - 5C/CMH/CS Saitenhalter Teile finden Sie bei Allesmarine.nl. Wir haben den größten Vorrat und am nächsten Tag ist alles in Ihrem Haus.
| Nummer: | Bestellnummer: | Yamaha OEM: | Beschreibung: |
| 0 | MAL9-74503 | 6E0-W0001-C1-00 | Seal kit |
| 1 | 6E0-W0078-00 | REC6E0-W0078-A2 | Waterpomp service set |
| 3 | REC6E0-45317-00 | 6E0-45317-09 | Bushing |
| 4 | REC6E0-45316-00 | 6E0-45316-09 | Bushing |
| 5 | REC93101-10M14 | 93101-10M14 | Oil seal |
| 6 | PAGB/T276-6004C2 | 93306-004UO | BEARING |
| 7 | REC6L5-45251-02 | 6L5-45251-03 | Anode |
| 10 | REC90430-08020-00 | 90430-08020 | Gasket |
| 11 | PAF4-03000023 | 90340-08002 | CARTER PLUG |
| 13 | PAF4-00000001 | 90387-06M14 | COLLAR |
| 14 | PAF4-03000012 | 6E0-45321-01-5B | PLATE |
| 15 | PAF4-03000011 | 6E0-45315-A0 | PACKING |
| 18 | PAF4-03050001 | 6E0-45361-01-4D | CAP |
| 19 | PAGB/T276-6004-C2 | 93306-004UO | BEARING |
| 20 | REC93101-13M12 | 93101-13M12 | Oil seal |
| 21 | REC93210-48214 | 93210-48214 | O-ring |
| 23 | PAF4-03000019 | 6E0-44311-00-00 | Waterpomp huis |
| 24 | PAF4-03000018 | 6E0-44315-A0-00 | Gasket |
| 25 | PAF4-03000017 | 6E0-44322-02-00 | Inner waterpomp |
| 26 | PAF4-03000015 | 6E0-44323-00-00 | Plaat |
| 27 | PAF4-03000021 | 6E0-44366-00 | DAMPER |
| 28 | GLM89860 | 6E0-44352-00 | Impeller |
| 29 | PAF4-03000016 | 93604-09066 | PIN, DOWEL |
| 31 | PAF4-03000013 | 93604-18080 | PIN, DOWEL |
| 32 | PAF4-03000020 | 6E0-44328-00 | PLATE |
| 35 | REC6E0-45511-01 | 6E0-45511-01 | Shaft, Drive |
| 35 | REC6E0-45511-11 | 6E0-45511-11 | Shaft, Drive |
| 36 | PAF4-03000005 | 90467-08M01 | CLIP |
| 37 | REC6E0-45551-00 | 6E0-45551-00 | Pinion |
| 38 | PAGB/T896-86 | 99001-06600 | CIRCLIP |
| 39 | PAF4-03000006 | 90201-11M49 | WASHER |
| 40 | REC6E0-45560-00 | 6E0-45560-00 | Gear |
| 41 | REC6E0-45570-00 | 6E0-45570-00 | Gear |
| 43 | REC6E0-45631-00 | 6E0-45631-00 | Clutch, Dog |
| 44 | REC90250-05046 | 90250-05046 | Pin, Straight |
| 48 | REC6E0-45611-01 | 6E0-45611-01 | Shaft, Propeller |
| 49 | PAF4-03000025 | 6L5-45987-01 | SPACER |
| 51 | PAGB/T91-1.6X12 | 91490-25030 | PIN, COTTER |
| 52 | PAF4-03000026 | 90201-08M54 | WASHER |
| 55 | 6E0-45945-00 | 6E0-45945-00 | Breekpen orgineel |
