25 / 30 PS 2-Takt

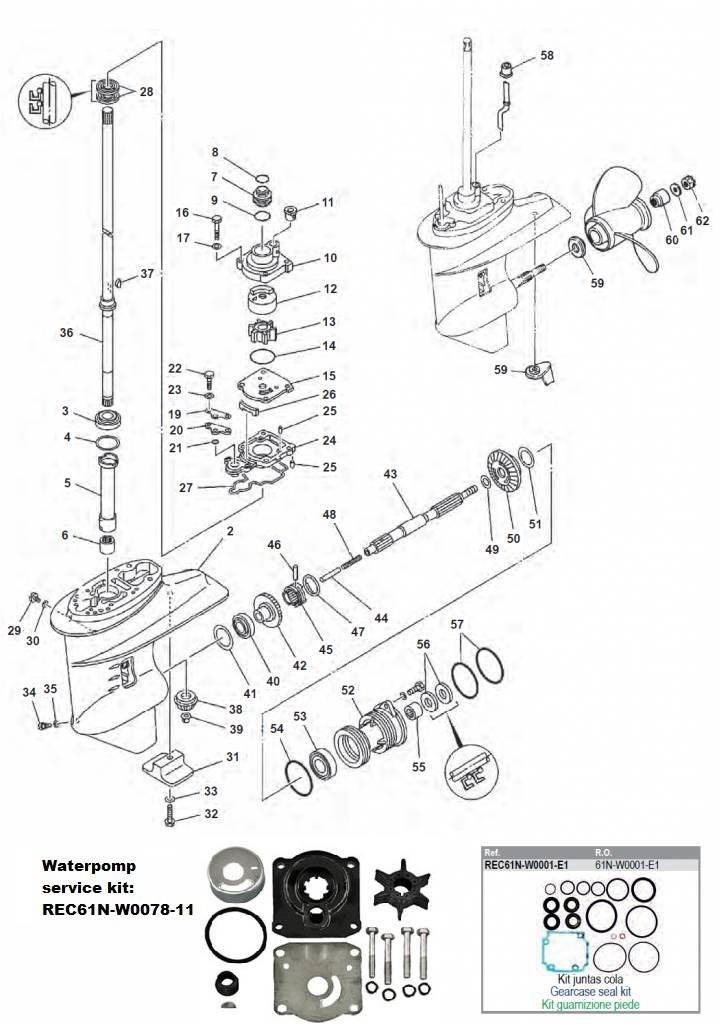

| Nr | Bestelnummer: | Yamaha OEM: | Omschrijving: |
| REC61N-W0001-E1 | 61N-W0001-E1-00 | Seal kit | |
| REC61N-W0078-11 | 61N-W0078-11-00 | Waterpomp service kit | |
| 3 | REC93332-000W5 | 93332-000W5 | Bearing |
| 4 | PAF25-04000003-1 | 61N-45587-00-07 | SHIM (t:0.7mm) |
| 5 | PAF25-04000002 | 61N-45536-00 | SLEEVE, DRIVE SHAFT |
| 6 | REC93315-220V7 | 93315-220V7 | Bearing |
| 7 | PAF25-04000017S | 61N-44362-00 | LARGE WATER TUBE |
| 7 | PAF25-04000017 | 61N-44362-10 | LARGE WATER TUBE |
| 8 | PAGB/T3452.1-25.8X2. | 93210-22164 | O-RING |
| 9 | PAGB/T3452.1-25.8X2. | 93210-26130 | O-RING |
| 10 | PAF25-04050001 | 69P-44311-00 | HOUSING, WATER PUMP |
| 11 | GLM38304 | 6L2-44367-00 | Damper, Water seal |
| 12 | REC61N-44322-00 | 61N-44322-01 | Insert, Cartridge |
| 13 | GLM89900 | 6H4-44352-02 | Impeller |
| 14 | GLM84310 | 93210-45161 | O-ring |

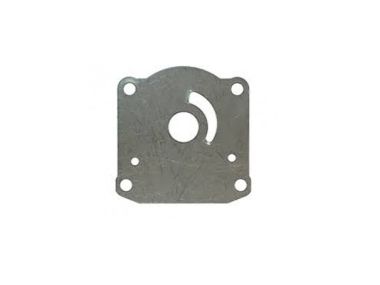

| 15 | REC61N-44323-00 | 61N-44323-00 | Outer plate, Cartridge |
| 16 | GLM22428 | 97095-06040 | Bolt |
| 17 | PAGB/T97.1-6 | 92995-06600 | WASHER |
| 25 | PAF25-04000007 | 93604-10M03 | PIN, DOWEL |
| 26 | PAF25-04000013 | 61N-45127-00 | SEAL |
| 27 | PAF25-04000009 | 61N-45315-00 | PACKING, LOWER CASING |
| 28 | REC93101-22067 | 93101-22067 | Oil seal |
| 29 | MAL9-72653 | 90340-08002 | Plug, Straight screw |
| 30 | GLM38015 | 90430-08020 | Gasket |
| 31 | CM61N-45251-01 | 61N-45251-01 | Anode |
| 34 | REC688-45341-00 | 688-45341-10 | Plug drain |
| 35 | GLM38015 | 90430-08020 | Gasket |

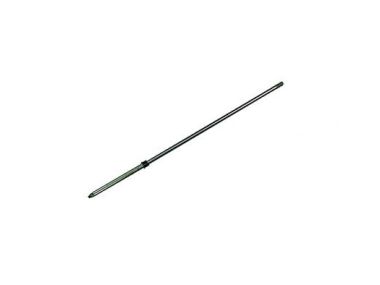

| 36 | REC61N-45510-00 | 61N-45510-00 | DRIVE SHAFT ASSY |
| 36 | REC61N-45510-10 | 61N-45510-10 | Aandrijf as |
| 37 | REC90280-03M03 | 90280-03M03 | Key, Woodruff |

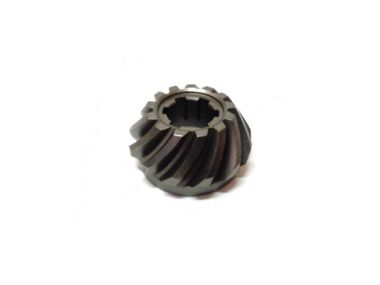

| 38 | REC61N-45551-00 | 61N-45551-00 | Pinion |
| 39 | REC90179-10M14 | 90179-10M14 | Nut |
| 40 | REC93332-00005 | 93332-00005 | Bearing |
| 41 | PAF25-04000004-1 | 6L2-45567-00-10 | SHIM (t:1.0mm) |
| 42 | REC61N-45560-10 | 61N-45560-10 | Gear |
| 43 | REC6L2-45611-00 | 6L2-45611-00 | Shaft, Propeller |
| 44 | REC648-45635-00 | 648-45635-00 | Plunger shift |
| 45 | REC664-45631-00 | 664-45631-02 | Clutch, dog |
| 46 | REC90250-05010 | 90250-05010 | Pin, Straight |
| 47 | REC648-45633-00 | 648-45633-00 | Ring, Cross pin |
| 48 | PAF25-04060002 | 90501-10065 | SPRING, COMPRESSION |
| 49 | REC90201-20417 | 90201-20417 | Washer plate |
| 50 | REC61N-45570-00 | 61N45571-00 | Gear |
| 51 | PAF25-04070005-1 | 6L2-45577-00-10 | SHIM (t:1.0mm) |
| 52 | PAF25-04070001 | 61N-45361-01-4D | CAP, LOWER CASING |
| 53 | REC93306-00612 | 93306-00612 | Bearing |
| 54 | REC93210-64ME7 | 93210-64ME7 | O-ring |
| 55 | REC93315-22004 | 93315-22004 | Bearing |
| 56 | REC93101-20M07 | 93101-20M07 | Oil seal |
| 57 | REC93210-65M50 | 93210-65M50 | O-ring |

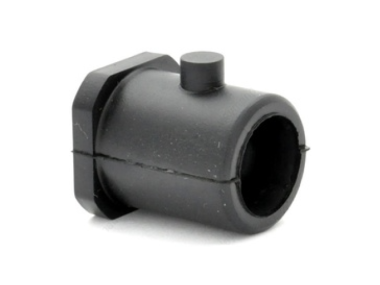

| 58 | GLM38305 | 689-44366-00 | Damper, Water seal |
| 59 | CM61N-45371-00 | 61N-45371-00 | Tab-trim |
| 60 | REC6L2-45987-00 | 6L2-45987-01 | Spacer |
| 61 | REC689-45997-00 | 689-45997-00 | Spacer |
| 62 | GLM21224 | 92990-14200 | Washer, Plain |
| 63 | REC90171-14013-00 | 90171-14013 | Nut, Castle |
| SOL3211-099-09 | 664-45941-01-EL | Propeller |
-
Yamaha/Parsun Outer Plate 20/25/30 HP (61N-44323-00)Ab 16,67 € 14,01 €
-
Yamaha / Parsun Nadellager 20 / 25 / 30 PS 93315-220V7Ab 41,26 € 34,67 €
-
Yamaha Kugellager 20 / 25 / 30 PS 93306-00612Ab 25,52 € 21,45 €
-
Yamaha / Parsun Zahnrad 20 / 25 / 30 PS 61N-45551-00Ab 79,61 € 66,90 €
-
Yamaha / Parsun Mutter 20 / 25 / 30 PS 90179-10M14Ab 16,67 € 14,01 €
-
Yamaha / Parsun Nadellager 20/25/30 PS (93332-000W5)Ab 52,07 € 43,76 €
