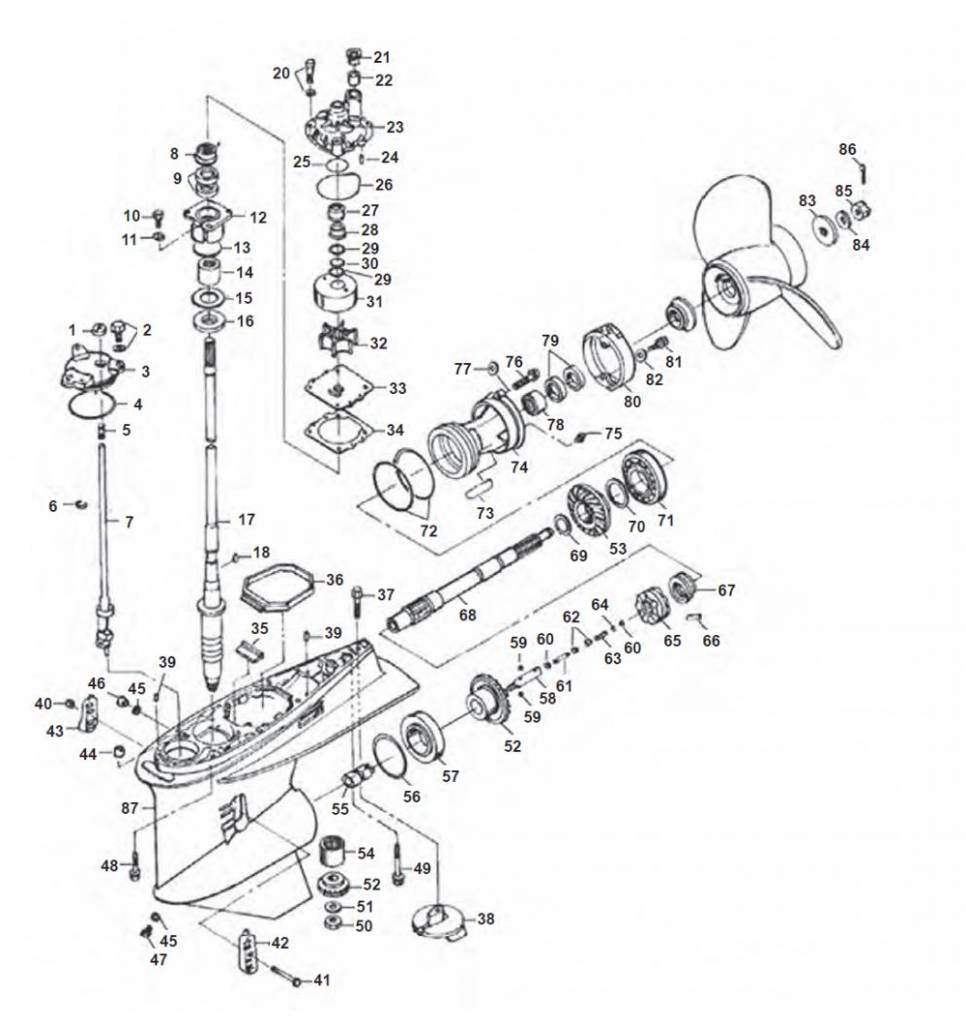

225 / 250 PS 2-Takt
| Nummer: | Bestelnummer: | Yamaha OEM: | Omschrijving: |
| 1 | REC93106-09014 | 93106-09014 | SEAL, SHIFT ROD |
| 2 | REC90119-06M10 | 90119-06M10 | BOLT WITH WASHER |
| 3 | REC61A-45321-01 | 61A-45321-01 | SHIFT SHAFT COVER |
| 4 | REC93210-65752-00 | 93210-65752 | O-RING |
| 5 | REC90501-11M10-00 | 90501-11M10 | SPRING |

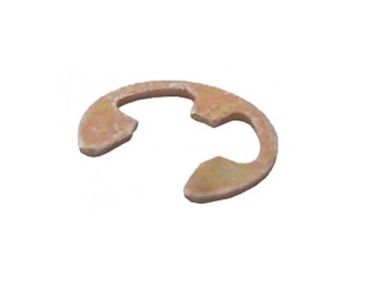

| 6 | REC99001-08600-00 | 99001-08600 | CLIP |
| 7 | REC60V-44150-00 | 60V-44150-00 | SHIFT SHAFT |
| 8 | REC6E5-45344-00 | 6E5-45344-00 | COVER, DRIVE SHAFT SEALS |
| 9 | REC93101-28M16 | 93101-28M16 | DRIVE SHAFT SEAL |
| 12 | REC61A-45331-00-94 | 61A-45331-00-94 | DRIVE SHAFT BEARING HOUSING |
| 13 | REC93210-54534 | 93210-54534 | O-RING |
| 14 | REC93317-330U2 | 93317-330U2 | BEARING |
| 15 | REC61A-45587-00/60-0 | 61A-45587-00/60 | SHIM KIT |
| 16 | REC93341-93020 | 93341-93020 | THRUST BEARING |
| 17 | REC66K-45501-00 | 66K-45501-00 | DRIVE SHAFT, 20” |
| 17 | REC61A-45501-20 | 61A-45501-20 | DRIVE SHAFT, 25” |
| 17 | REC61A-45501-30 | 61A-45501-30 | DRIVE SHAFT, 30” |
| 18 | REC90280-04M05 | 90280-04M05 | WOODRUFF KEY |
| 20 | REC90119-08M14 | 90119-08M14 | BOLT WITH WASHER |
| 21 | REC6E5-44312-00 | 6E5-44312-00 | OVER |
| 22 | REC6E5-44365-00 | 6E5-44365-00 | DAMPER, WATER TUBE |
| 23 | REC61A-44311-00 | 61A-44311-00 | WATER PUMP HOUSING |
| 24 | REC93606-12019 | 93606-12019 | ALIGNMENT PIN |
| 25 | REC93210-37M67 | 93210-37M67 | O-RING |
| 26 | REC93210-86M38 | 93210-86M38 | O-RING |
| 27 | REC61A-45527-00 | 61A-45527-00 | COLLAR |
| 28 | REC61A-45538-00 | 61A-45538-00 | SPACER |
| 29 | REC90201-22M01 | 90201-22M01 | WASHER |
| 30 | REC90206-22M19 | 90206-22M19 | WAVE WASHER |
| 31 | REC61A-44322-02 | 61A-44322-02 | WATER PUMP LINER |
| 32 | REC6E5-44352-01 | 6E5-44352-01 | IMPELLER |
| 33 | REC6G5-44323-00 | 6G5-44323-00 | WEAR PLATE |
| 34 | REC6E5-44315-A0 | 6E5-44315-A0 | BASE GASKET |
| 35 | REC61A-45376-00-94 | 61A-45376-00-94 | GUIDE |
| 36 | REC69J-45375-00 | 69J-45375-00 | EXHAUST DAMPER |
| 38 | CM61A-45371 | 61A-45371-00 | TRIM TAB |
| 39 | REC93608-12M05 | 93608-12M05 | ALIGNMENT DOWELS |
| 42 | REC61A-45214-10 | 61A-45214-10 | WATER SCREEN, PORT |
| 43 | REC61A-45215-10 | 61A-45215-10 | WATER SCREEN, STARBOARD |
| 44 | REC663-44366-00 | 663-44366-00 | PITOT SEAL |
| 45 | REC90430-08020 | 90430-08020 | GASKET, DRAIN PLUG |
| 46 | REC90340-08002 | 90340-08002 | VENT PLUG |
| 50 | REC90170-16M19 | 90170-16M19 | PINION NUT |
| 51 | REC90201-16M00 | 90201-16M00 | WASHER |
| 54 | REC93311-83280 | 93311-83280 | PINION BEARING |
| 55 | REC61A-45641-02 | 61A-45641-02 | SHIFTER |
| 57 | REC93332-000W1 | 93332-000W1 | BEARING, FORWARD GEAR |
| 58 | REC61A-45634-01 | 61A-45634-01 | SHIFT SLIDE |
| 59 | REC93501-04011 | 93501-04011 | DETENT BALL |
| 60 | REC90183-02M03 | 90183-02M03 | SPRING NUT |
| 61 | REC6H1-45668-00 | 6H1-45668-00 | FREE SHAFT |
| 62 | REC61A-45635-00 | 61A-45635-00 | SHIFT PLUNGER |
| 63 | REC90501-10M77 | 90501-10M77 | COMPRESSION SPRING |
| 64 | REC90201-02M00 | 90201-02M00 | PLATE WASHER |
| 65 | REC61A-45631-03 | 61A-45631-03 | CLUTCH, 2 STROKE |
| 66 | REC61A-45632-00 | 61A-45632-00 | CROSS PIN |
| 67 | REC61A-45633-00 | 61A-45633-00 | SPRING |
| 68 | REC60V-45611-00 | 60V-45611-00 | PROP SHAFT |
| 69 | REC90201-31M00 | 90201-31M00 | WASHER |
| 71 | REC93306-210U0 | 93306-210U0 | BEARING, REVERSE GEAR |
| 72 | REC93211-04384 | 93211-04384 | O-RING, BEARING CARRIER |
| 73 | REC99590-10114 | 99590-10114 | ALIGNMENT DOWEL |
| 74 | REC60V-45332-00-94 | 60V-45332-00-94 | BEARING CARRIER |
| 78 | REC93315-43061 | 93315-43061 | PROP SHAFT BEARING |
| 79 | REC93101-30M17 | 93101-30M17 | PROP SHAFT SEAL |
| 80 | REC69J-45361-00-8D | 69J-45361-00-8D | CAP, LOWER CASING |
| 83 | REC688-45997-00 | 688-45997-00 | SPACER |
| 85 | REC90171-18M04 | 90171-18M04 | PROP NUT |
| 86 | REC91490-40030 | 91490-40030 | COTTER PIN |
-
Yamaha Mutter 4 bis 250 PS (90171-18M04-00)Ab 17,65 € 14,83 €
Yamaha 225FET - 250AET - 250BET- L250AET Saitenhalter Teile finden Sie bei Allesmarine.nl. Wir haben den größten Vorrat und am nächsten Tag ist alles in Ihrem Haus.
| Nummer: | Bestellnummer: | Yamaha OEM: | Beschreibung: |
| 1 | REC93106-09014 | 93106-09014 | SEAL, SHIFT ROD |
| 2 | REC90119-06M10 | 90119-06M10 | BOLT WITH WASHER |
| 3 | REC61A-45321-01 | 61A-45321-01 | SHIFT SHAFT COVER |
| 4 | REC93210-65752-00 | 93210-65752 | O-RING |
| 5 | REC90501-11M10-00 | 90501-11M10 | SPRING |
| 6 | REC99001-08600-00 | 99001-08600 | CLIP |
| 7 | REC60V-44150-00 | 60V-44150-00 | SHIFT SHAFT |
| 8 | REC6E5-45344-00 | 6E5-45344-00 | COVER, DRIVE SHAFT SEALS |
| 9 | REC93101-28M16 | 93101-28M16 | DRIVE SHAFT SEAL |
| 12 | REC61A-45331-00-94 | 61A-45331-00-94 | DRIVE SHAFT BEARING HOUSING |
| 13 | REC93210-54534 | 93210-54534 | O-RING |
| 14 | REC93317-330U2 | 93317-330U2 | BEARING |
| 15 | REC61A-45587-00/60-0 | 61A-45587-00/60 | SHIM KIT |
| 16 | REC93341-93020 | 93341-93020 | THRUST BEARING |
| 17 | REC66K-45501-00 | 66K-45501-00 | DRIVE SHAFT, 20” |
| 17 | REC61A-45501-20 | 61A-45501-20 | DRIVE SHAFT, 25” |
| 17 | REC61A-45501-30 | 61A-45501-30 | DRIVE SHAFT, 30” |
| 18 | REC90280-04M05 | 90280-04M05 | WOODRUFF KEY |
| 20 | REC90119-08M14 | 90119-08M14 | BOLT WITH WASHER |
| 21 | REC6E5-44312-00 | 6E5-44312-00 | OVER |
| 22 | REC6E5-44365-00 | 6E5-44365-00 | DAMPER, WATER TUBE |
| 23 | REC61A-44311-00 | 61A-44311-00 | WATER PUMP HOUSING |
| 24 | REC93606-12019 | 93606-12019 | ALIGNMENT PIN |
| 25 | REC93210-37M67 | 93210-37M67 | O-RING |
| 26 | REC93210-86M38 | 93210-86M38 | O-RING |
| 27 | REC61A-45527-00 | 61A-45527-00 | COLLAR |
| 28 | REC61A-45538-00 | 61A-45538-00 | SPACER |
| 29 | REC90201-22M01 | 90201-22M01 | WASHER |
| 30 | REC90206-22M19 | 90206-22M19 | WAVE WASHER |
| 31 | REC61A-44322-02 | 61A-44322-02 | WATER PUMP LINER |
| 32 | REC6E5-44352-01 | 6E5-44352-01 | IMPELLER |
| 33 | REC6G5-44323-00 | 6G5-44323-00 | WEAR PLATE |
| 34 | REC6E5-44315-A0 | 6E5-44315-A0 | BASE GASKET |
| 35 | REC61A-45376-00-94 | 61A-45376-00-94 | GUIDE |
| 36 | REC69J-45375-00 | 69J-45375-00 | EXHAUST DAMPER |
| 38 | CM61A-45371 | 61A-45371-00 | TRIM TAB |
| 39 | REC93608-12M05 | 93608-12M05 | ALIGNMENT DOWELS |
| 42 | REC61A-45214-10 | 61A-45214-10 | WATER SCREEN, PORT |
| 43 | REC61A-45215-10 | 61A-45215-10 | WATER SCREEN, STARBOARD |
| 44 | REC663-44366-00 | 663-44366-00 | PITOT SEAL |
| 45 | REC90430-08020 | 90430-08020 | GASKET, DRAIN PLUG |
| 46 | REC90340-08002 | 90340-08002 | VENT PLUG |
| 50 | REC90170-16M19 | 90170-16M19 | PINION NUT |
| 51 | REC90201-16M00 | 90201-16M00 | WASHER |
| 54 | REC93311-83280 | 93311-83280 | PINION BEARING |
| 55 | REC61A-45641-02 | 61A-45641-02 | SHIFTER |
| 57 | REC93332-000W1 | 93332-000W1 | BEARING, FORWARD GEAR |
| 58 | REC61A-45634-01 | 61A-45634-01 | SHIFT SLIDE |
| 59 | REC93501-04011 | 93501-04011 | DETENT BALL |
| 60 | REC90183-02M03 | 90183-02M03 | SPRING NUT |
| 61 | REC6H1-45668-00 | 6H1-45668-00 | FREE SHAFT |
| 62 | REC61A-45635-00 | 61A-45635-00 | SHIFT PLUNGER |
| 63 | REC90501-10M77 | 90501-10M77 | COMPRESSION SPRING |
| 64 | REC90201-02M00 | 90201-02M00 | PLATE WASHER |
| 65 | REC61A-45631-03 | 61A-45631-03 | CLUTCH, 2 STROKE |
| 66 | REC61A-45632-00 | 61A-45632-00 | CROSS PIN |
| 67 | REC61A-45633-00 | 61A-45633-00 | SPRING |
| 68 | REC60V-45611-00 | 60V-45611-00 | PROP SHAFT |
| 69 | REC90201-31M00 | 90201-31M00 | WASHER |
| 71 | REC93306-210U0 | 93306-210U0 | BEARING, REVERSE GEAR |
| 72 | REC93211-04384 | 93211-04384 | O-RING, BEARING CARRIER |
| 73 | REC99590-10114 | 99590-10114 | ALIGNMENT DOWEL |
| 74 | REC60V-45332-00-94 | 60V-45332-00-94 | BEARING CARRIER |
| 78 | REC93315-43061 | 93315-43061 | PROP SHAFT BEARING |
| 79 | REC93101-30M17 | 93101-30M17 | PROP SHAFT SEAL |
| 80 | REC69J-45361-00-8D | 69J-45361-00-8D | CAP, LOWER CASING |
| 83 | REC688-45997-00 | 688-45997-00 | SPACER |
| 85 | REC90171-18M04 | 90171-18M04 | PROP NUT |
| 86 | REC91490-40030 | 91490-40030 | COTTER PIN |
