115 PS / 130 PS
| Nr. | Bestelnummer: | Yamaha OEM: | Omschrijving: |
| GLM12286 | 6N6-W0078-02 | Water pump kit | |
| GLM87838 | 6E5-W0001-C1 (130C) 6E5-W0001-F1 (115C) | Gear case seal set | |
| 1 | REC405-A20 | 6E5-45300-16-8D | LOWER UNIT ASSY |
| 1 | REC405-A25 | 6E5-45300-26-8D | LOWER UNIT ASSY |

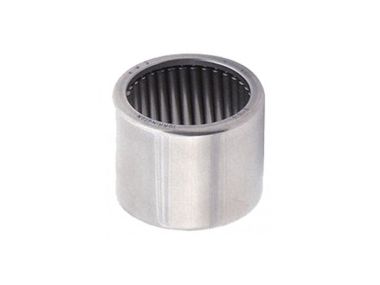

| 3 | REC93315-628U9 | 93315-628U9 | Bearing |
| 4 | REC93332-000U7 | 93332-000U7 | Bearing |
| 5 | REC6E5-45567-01 | 6E5-45567-01-60 | SHIM |
| 6 | MAL9-72653 | 90340-08M04 | Plug, Straight screw |
| 7 | REC688-45341-00 | 688-45341-00 | Plug drain |
| 8 | REC90430-08020-00 | 90430-08020 | Gasket |
| 9 | GLM38300 | 6E5-44365-00 | Damper |

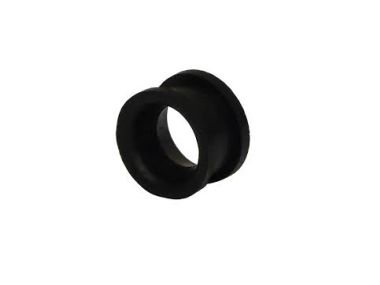

| 10 | GLM38301 | 6E5-44366-00 | Damper |
| 11 | GLM38300 | 6E5-44365-00 | Damper, Water seal |
| 12 | REC91490-40030 | 91490-40030 | Pin, cotter |
| 13 | REC6E5-45321-00 | 6E5-45321-00 | PLATE |
| 14 | GLM84240 | 93210-58144 | O-ring |
| 15 | REC93106-09014 | 93106-09014 | Oil seal |
| 16 | REC90119-06M10 | 90119-06M10 | BOLT WITH WASHER |
| 17 | GLM12744 | 6E5-45371-10 | Tab-trim |
| 18 | REC6E5-45371-01 | 6E5-45371-01 | Tab-trim |
| 19 | REC6E5-45987-00 | 6E5-45987-01 | Spacer |
| 20 | REC688-45997-00 | 61A-45538-00 | Spacer |
| 21 | GLM21221 | 92990-18200 | Washer |
| 22 | REC90171-18M04 | REC90171-18M04 | Nut, Castle |
| 23 | REC61A-45527-00 | 61A-45527-00 | COLLAR, DRIVE SHAFT |
| 24 | MAL9-43252 | 61A-44311-01 | Housing, water pump |
| 25 | REC61A-44322-02 | 61A-44322-02 | Insert, Cartridge |
| 26 | REC93210-86M38 | 93210-86M38 | O-ring |
| 27 | REC93210-37160 | 93210-37160 | O-ring |
| 28 | GLM89930 | 6E5-44352-01 | Impeller |
| 29 | REC90280-04M05 | 90280-04M05 | Key, Woodruff |
| 30 | REC6E5-44323-00-40 | 6E5-44323-00 | OUTTER PLATE, CARTRIDGE |
| 31 | REC6E5-44315-00 | 6E5-44315-A0 | Gasket, Water pump |
| 32 | GLM12808 | 93606-12019 | Pin, dowel |
| 33 | REC90119-08M14 | 90119-08M14 | Bolt, With washer |
| 34 | REC6E5-45331-00-94 | 6E5-45331-0094 | Housing, bearing |
| 35 | REC93101-28M16 | 93101-28M16 | Oil seal |
| 36 | REC93317-330U2 | 93317-330U2 | Bearing |
| 37 | REC6E5-45587-01 | 6E5-45587-01 | SHIM |
| 38 | REC93341-930V2 | 93341-930V2 | Bearing |
| 39 | GLM84215 | 93210-55M14 | O-ring |
| 40 | REC6E5-45344-00 | 6E5-45344-00 | Cover, Oil seal |
| 42 | GLM21720 | 92995-08600 | WASHER |
| 43 | REC6E5-45551-01 | 6E5-45501-01 | DRIVE SHAFT COMP |
| 43 | REC6E5-45501-21 | 6E5-45501-21 | DRIVE SHAFT COMP |

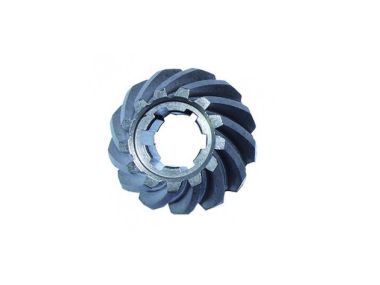

| 44 | REC6E5-45551-00 | 6E5-45551-02 | Pinion |
| 45 | REC90170-16M01 | 90170-16M01 | Nut |
| 46 | REC6E5-45560-00 | 6E5-45560-01 | Pinion |
| 47 | REC93315-425U7 | 93315-425U7 | Bearing |
| 48 | REC6E5-45611-00 | 6E5-45611-01 | Shaft, Propeller |
| 49 | REC6E5-45641-03 | 6E5-45641-02 | SHIFTER |
| 50 | REC6E5-45634-01 | 6E5-45634-01 | SLIDE, SHIFT |
| 51 | REC90501-16M37 | 90501-16M37 | SPRING, COMPRESSION |
| 52 | REC93507-32031 | 93507-32031 | BALL |

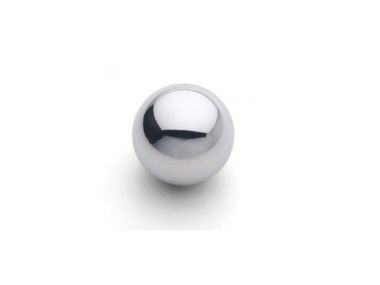

| 53 | REC93511-32027 | 93511-32027 | BALL |
| 54 | REC93503-16003 | 93503-16003 | BALL |
| 55 | REC90250-08M07 | 90250-08M07 | Pin, Straight |
| 56 | REC6E5-45631-00 | 6E5-45631-01 | Clutch, dog |
| 57 | REC6E5-45633-01 | 6E5-45633-01-00 | Ring, Cross pin |
| 58 | REC6E5-45332-00-94 | 6E5-45332-00-94 | HOUSING, BEARING |
| 59 | REC93306-208U0 | 93306-208U0 | Bearing |
| 60 | REC6E5-45570-00 | 6E5-45571-01 | Pinion |
| 61 | REC6E5-45576-00 | 6E5-45576-00 | WASHER, THURST |
| 62 | REC93315-430U8 | 93315-430U8-00 | Bearing |
| 63 | REC93101-30M17 | 93101-30M17 | Oil seal |
| 64 | REC93210-86M39 | 93210-86M39 | O-ring |
| 66 | REC90201-30M92 | 90201-30M92 | Washer, plate |
| 67 | REC90282-04010 | 90282-04010 | Key, straight |
| 68 | REC688-45383-01 | 688-45383-02 | Washer, claw |
| 69 | REC688-45384-00 | 688-45384-00 | Nut |
| 70 | REC6E5-45536-00 | 6E5-45536-00 | SLEEVE |
-
