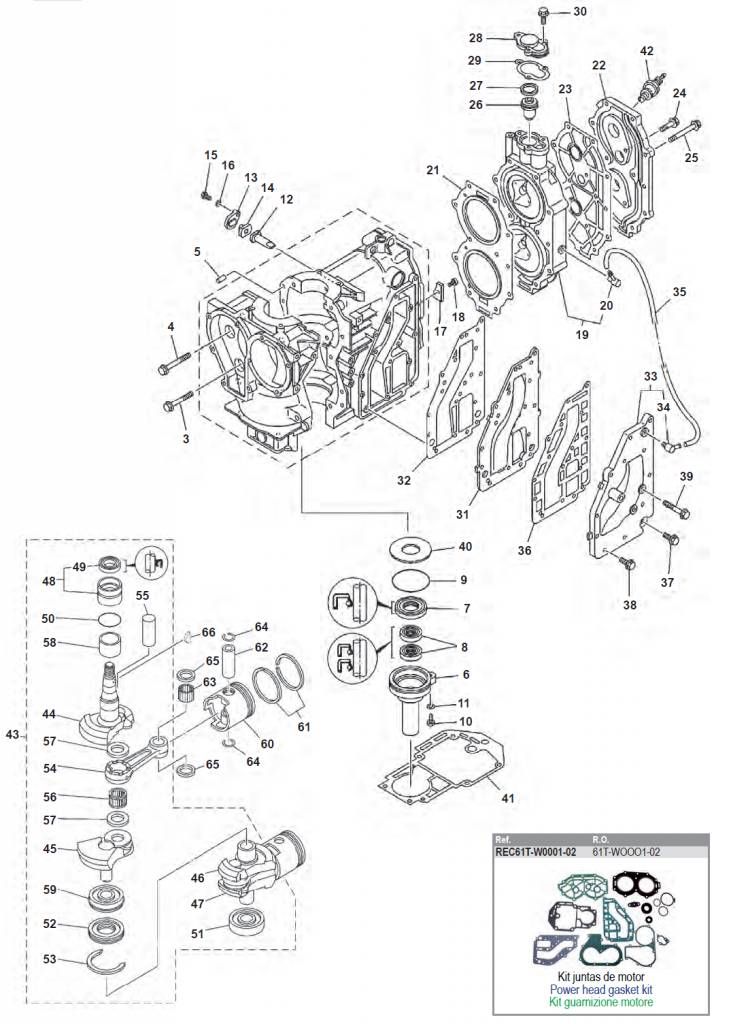

25 / 30 PS 2-Takt 2-Zyl. Motorblock & Kurbelwelle
| Nummer: | Bestelnummer: | Yamaha OEM: | Omschrijving: |
| REC61T-W0001-02 | 61T-W0001-02 | Pakking set | |
| 5 | GLM12808 | 93606-12019 | Pin dowel |
| 7 | REC93102-25008 | 93102-25008 | Oil seal |
| 8 | REC93101-16001 | 93101-16001 | Oil seal |
| 9 | REC93210-58M21 | 93210-58M21 | O-ring |
| 11 | PAGB/T97.1-85 | 92995-06600 | WASHER |
| 12 | CM6J8-11325-00 | 6J8-11325-00 | Anode |
| 17 | CM689-11325-00 | 689-11325-00 | ANODE |
| 20 | PAF15-04000005 | 676-11372-00 | NIPPLE HOSE |
| 21 | REC61N-11181-00 | 61N-11181-A1 | Gasket, Cylinder head |
| 23 | REC61T-11193-A0 | 61T-11193-A1 | Gasket, head over |
| 26 | GLM13320 | 6E5-12411-01 | Thermostat |
| 29 | REC655-12414-A1 | 655-12414-A1 | Gasket, cover |
| 32 | REC6K8-41122-A1 | 6K8-41122-A1 | Gasket, exhaust inner cover |
| 34 | PAF15-04000005 | 676-11372-00 | NIPPLE, HOSE |
| 36 | REC6K8-41124-A1 | 6K8-41124-A1 | Gasket, exhaust outer cover |
| 41 | REC689-45113-A1 | 689-45113-A1 /61T-45113-A0 | Gasket, upper casing |
| 42 | NGKBR7HS-10 | NGK-B7HS10-PK10 | Plug, spark |
| 42 | NGKBR8HS-10 | NGK-B8HS10-PK10 | Plug, spark |
| 44 | REC6G0-11412-00 | 69P-11412-00 | CRANK 1 |
| 45 | REC6G0-11422-00 | 61N-11422-00 | CRANK 2 |
| 46 | REC6G0-11432-00 | 61N-11432-00 | CRANK 3 |
| 47 | REC6G0-11442-00 | 61N-11442-00 | CRANK 4 |

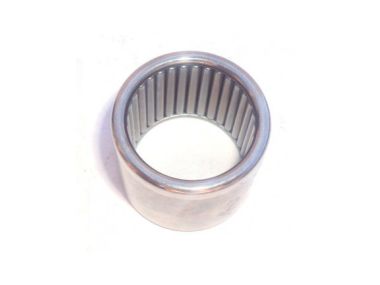

| 48 | REC93399-99951 | 93399-99951 | BEARING |
| 49 | REC93102-32M07 | 93102-32M07 | OIL SEAL |
| 50 | REC93210-46M16 | 93210-46M16 | O-RING |
| 51 | REC93306-305U3 | 93306-305U3 | BEARING |
| 52 | REC61N-11515-00 | 61N-11515-00 | SEAL, LABYRINTH |
| 54 | REC689-11651-00 | 689-11651-00 | ROD CONNECTING |
| 55 | REC689-11681-00 | 689-11681-01 | PIN, CRANK 1 |
| 56 | REC93310-624U5 | 93310-62406 | BEARING |
| 57 | REC90209-24M03 | 90209-24M03 | WASHER |
| 58 | REC90387-32002 | 90387-32002 | COLLAR |
| 60 | REC61N-11631-00K | 61N-11631-00-95 | PISTON (STD) |
| 60 | REC61N-11635-00K | 61N-11635-00 | PISTON (25mm O/S) |
| 60 | REC61N-11636-00K | 61N-11636-00 | PISTON (50mm O/S) |
| 61 | REC61N-11603-00 | 61N-11603-00 | PISTON RING TEST (STD) |
| 61 | REC61N-11604-00 | 61N-11604-00 | PISTON RING SET (25mmO/S) |
| 61 | REC61N-11605-00 | 61N-11605-00 | PISTON RING SET (50mmO/S) |
| 62 | REC689-11633-00 | 689-11633-00 | PIN, PISTON |
| 63 | REC93602-20M02 | 93602-20M02 | PIN, DOWEL |
| 64 | REC688-11634-00 | 688-11634-00 | CLIP, PISTON PIN |
| 65 | REC90201-20M27 | 90201-20M27 | WASHER, PLATE |

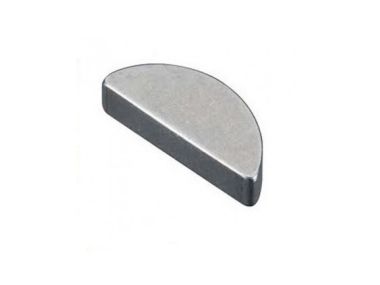

| 66 | REC90280-05015 | 90280-05049 | KEY WOODRUFF |
-
Yamaha O-Ring 9.9 bis 80 PS 93210-46M16Ab 7,82 € 6,57 €
-
Yamaha 25 /30 HP stay 2 656-15772-00-94Ab 49,12 € 41,28 €
-
Yamaha 25 /30 HP stay 1 656-15771-00-94Ab 34,42 € 28,93 €
