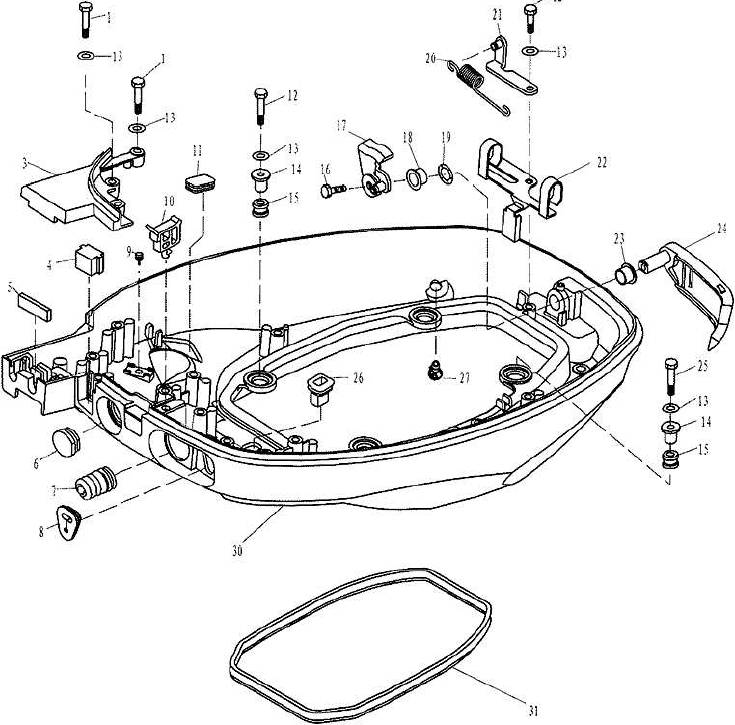

Bottom Cowling
| Nummer: |
Bestelnummer: |
Yamaha OEM: |
Omschrijving: |
| 1 |
PAGB/T5783-2000 |
|
BOLT HEXAGON M6X30 |
| 2 |
PAF15-05000019 |
6D4-26393-00 |
ORIENTED PLATE, CHOKE |
| 3 |
PAF15-05000018 |
|
COVER BOARD, BOTTOM COWLING |
| 4 |
66M-42725-10 |
66M-42725-10 |
SHEATH, CHOKE |
| 5 |
PAF15-05000017 |
65W-42724-00, 65W-42727-00 |
SEAL, RUBBER |
| 6 |
PAF15-05000007 |
682-42724-00 |
RUBBER PLUG, CIRCULAR |
| 7 |
PAF15-05000006 |
65W-42726-00 |
SHEATH, WAVE |
| 8 |
PAF15-01000015 |
66M-26326-00 |
JACKET, CABLE |
| 9 |
PAF15-05000015 |
689-85547-00 |
RUBBER PLUG, NEEDLE |
| 10 |
PAF15-05000008 |
90465-25M57 |
CLAMP A |
| 11 |
PAF15-05000003 |
6H442726-00 |
RUBBER PLUG, QUADRATE |
| 12 |
PAGB/T5783-2000 |
|
BOLT HEXAGON M6X25 |
| 13 |
PAGB/T97.1-85 |
|
WASHER 6 |
| 14 |
PAF15-05000005 |
90387-06034 |
BUSHING, DAMPER |
| 15 |
PAF15-05000004 |
90480-15M31-00 |
DAMPER |
| 16 |
PAGB/T5783-2000 |
|
BOLT, HEXAGON M6X12 |
| 17 |
PAF15-05030000 |
6D4-42816-00 |
LOCKING ASSY, TOP COWLING |
| 18 |
PAF15-05000036 |
90386-12M37 |
BUSHING B |
| 19 |
PAF15-05000023 |
|
WASHER, WAVE |
| 20 |
PAF15-05000026 |
90506-18010 |
SPRING, TENSION |
| 21 |
PAF15-05000025 |
|
BRACKET ASSY, TENSIONAL SPRING |
| 22 |
PAF15-05000024 |
|
CLIP, WATER PIPE |
| 23 |
PAF15-05000022 |
90386-12MA2 |
BUSHING A |
| 24 |
PAF15-05020000 |
|
LOCKING HANDLE ASSY, TOP COWLING |
| 25 |
PAGB/T5783-2000 |
|
BOLT HEXAGON M6X35 |
| 26 |
PAF15-05000033 |
682-42727-00 |
JACKET, LEVER |
| 27 |
PAF15-05000009 |
6BL-44391-00, 6H3-44391-01 |
NIPPLE, PLASTIC |
| 28 |
PAGB/T7583-2000 |
|
BOLT, HEXAGON M6X20 |
| 29 |
PAF15-05000021 |
|
COVERING |
| 30 |
PAF15-05000001 |
|
BOTTOM COWLING |
| 31 |
PAF15-05000002 |
|
SEAL, BOTTOM COWLING |
| Nummer: |
Bestellnummer: |
Yamaha OEM: |
Beschreibung: |
| 1 |
PAGB/T5783-2000 |
|
BOLT HEXAGON M6X30 |
| 2 |
PAF15-05000019 |
6D4-26393-00 |
ORIENTED PLATE, CHOKE |
| 3 |
PAF15-05000018 |
|
COVER BOARD, BOTTOM COWLING |
| 4 |
66M-42725-10 |
66M-42725-10 |
SHEATH, CHOKE |
| 5 |
PAF15-05000017 |
65W-42724-00, 65W-42727-00 |
SEAL, RUBBER |
| 6 |
PAF15-05000007 |
682-42724-00 |
RUBBER PLUG, CIRCULAR |
| 7 |
PAF15-05000006 |
65W-42726-00 |
SHEATH, WAVE |
| 8 |
PAF15-01000015 |
66M-26326-00 |
JACKET, CABLE |
| 9 |
PAF15-05000015 |
689-85547-00 |
RUBBER PLUG, NEEDLE |
| 10 |
PAF15-05000008 |
90465-25M57 |
CLAMP A |
| 11 |
PAF15-05000003 |
6H442726-00 |
RUBBER PLUG, QUADRATE |
| 12 |
PAGB/T5783-2000 |
|
BOLT HEXAGON M6X25 |
| 13 |
PAGB/T97.1-85 |
|
WASHER 6 |
| 14 |
PAF15-05000005 |
90387-06034 |
BUSHING, DAMPER |
| 15 |
PAF15-05000004 |
90480-15M31-00 |
DAMPER |
| 16 |
PAGB/T5783-2000 |
|
BOLT, HEXAGON M6X12 |
| 17 |
PAF15-05030000 |
6D4-42816-00 |
LOCKING ASSY, TOP COWLING |
| 18 |
PAF15-05000036 |
90386-12M37 |
BUSHING B |
| 19 |
PAF15-05000023 |
|
WASHER, WAVE |
| 20 |
PAF15-05000026 |
90506-18010 |
SPRING, TENSION |
| 21 |
PAF15-05000025 |
|
BRACKET ASSY, TENSIONAL SPRING |
| 22 |
PAF15-05000024 |
|
CLIP, WATER PIPE |
| 23 |
PAF15-05000022 |
90386-12MA2 |
BUSHING A |
| 24 |
PAF15-05020000 |
|
LOCKING HANDLE ASSY, TOP COWLING |
| 25 |
PAGB/T5783-2000 |
|
BOLT HEXAGON M6X35 |
| 26 |
PAF15-05000033 |
682-42727-00 |
JACKET, LEVER |
| 27 |
PAF15-05000009 |
6BL-44391-00, 6H3-44391-01 |
NIPPLE, PLASTIC |
| 28 |
PAGB/T7583-2000 |
|
BOLT, HEXAGON M6X20 |
| 29 |
PAF15-05000021 |
|
COVERING |
| 30 |
PAF15-05000001 |
|
BOTTOM COWLING |
| 31 |
PAF15-05000002 |
|
SEAL, BOTTOM COWLING |
