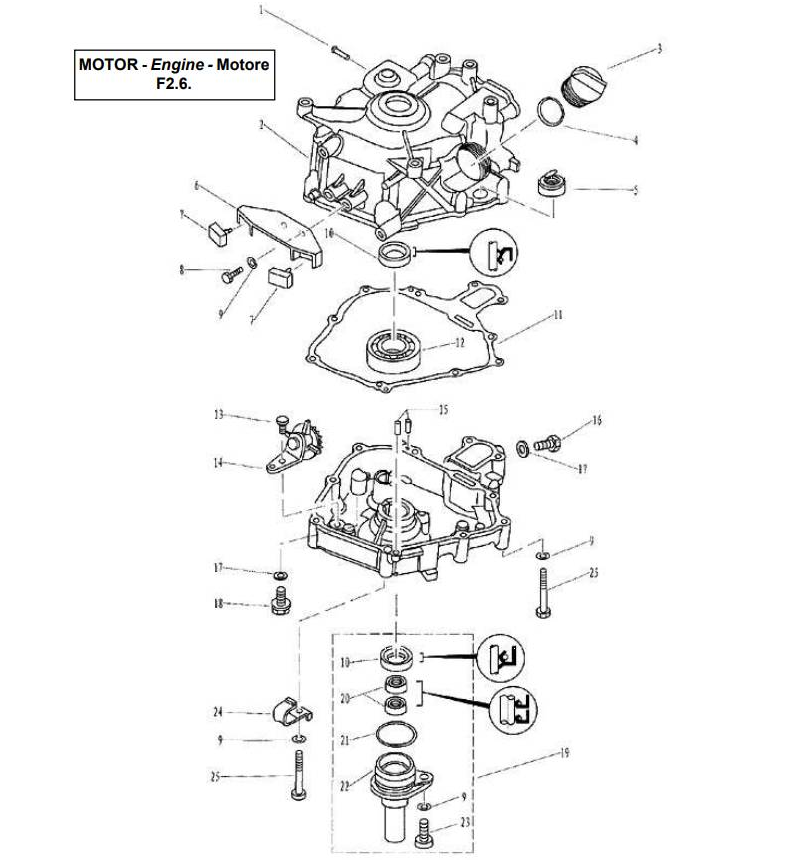

Cylinder & Crankcase 2
| Nummer: | Bestelnummer: | OEM: | Omschrijving: |
| 1 | PAT15-04010202 | 6H1-14485-00 | PIPE, WATER |
| 2 | PAF2.6-04010100 | 69M-E1311-00-1S | CRANK CASE |
| 3 | PAF15-07050004 | 69M-E5363-00 | PLUG, OIL |
| 4 | PAJASO F404 31-025 | 93210-24800-00 | O-RING |
| 5 | PAF2.6-04010102 | 69M-15361-00 | GAUGE, LEVEL |
| 6 | PAF2.6-04000008 | 69M-G2743-00 | BRACKET, DAMPER |
| 7 | PAF2.6-04000009 | 6G8-44532-00 | RUBBER BLOCK, DAMPER |
| 8 | PAGB/T5783-2000 | 68D-E5362-00 | BOLT |
| 9 | PAGB/T97.1-85 | 66M-11327-00-94 | WASHER |
| 10 | PAF2.6-04010001 | 93102-20108 | OIL SEAL |
| 11 | PAF2.6-04000004 | 69M-11351-A0 | CRANK CASE COMPLEX GASKET |
| 12 | PA62/22C3 | 93306-272Y2-00 | BALL BEARING |
| 13 | PAGB/T5783-2000 | 68D-E5362-00 | BOLT |
| 14 | PAF2.6-04050100 | 69M-E3102-00 | GEAR UNIT ASSY |
| 15 | PAF15-0000013 | P I N | |
| 16 | PAGB/T5783-2000 | 68D-E5362-00 | BOLT |
| 17 | PAF4-04000006 | 90201-08818 | WASHER |
| 18 | PAF4-04000001 | 90105-08M76 | BOLT, DISCHARGING OIL |

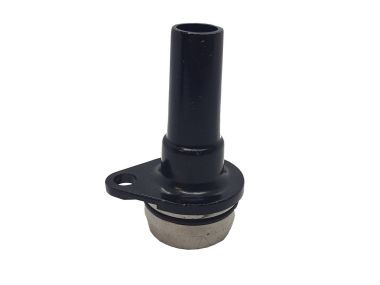

| 19 | PAF2.6-04060000 | OIL SEAL SHELL ASSY | |
| 20 | PAF2.6-04060002 | 93102-09004 | OIL SEAL |
| 21 | PAF4-04060002 | 93210-35537 | O RING |
| 22 | PAF2.6-04060001 | 69M-E5396-00-5B | SHELL, OIL SEAL |
| 23 | PAGB/T5783-2000 | 68D-E5362-00 | BOLT |
| 24 | PAF25-05000013 | CLAMP A | |
| 25 | PAGB/T5783-2000 | 68D-E5362-00 | BOLT |
| 26 | PAF2.6-04050001 | 69M-E5111-00-1S | CRANKCASE COVER |
-
Yamaha / Parsun Kugel Lager F2.6 (93306-272Y2-00)Ab 17,65 € 14,83 €
-
Yamaha / Parsun O-Ring F2.5 / F4 93210-35537Ab 4,87 € 4,09 €
-

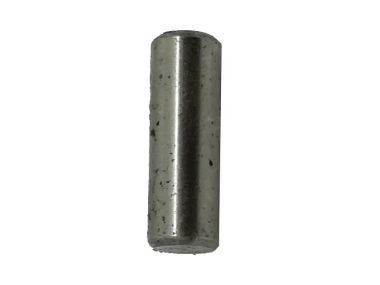

Parsun Pin F2.6 (PAF15-0000013)4,87 € 4,09 €
| Nummer: | Bestellnummer: | OEM: | Beschreibung: |
| 1 | PAT15-04010202 | 6H1-14485-00 | PIPE, WATER |
| 2 | PAF2.6-04010100 | 69M-E1311-00-1S | CRANK CASE |
| 3 | PAF15-07050004 | 69M-E5363-00 | PLUG, OIL |
| 4 | PAJASO F404 31-025 | 93210-24800-00 | O-RING |
| 5 | PAF2.6-04010102 | 69M-15361-00 | GAUGE, LEVEL |
| 6 | PAF2.6-04000008 | 69M-G2743-00 | BRACKET, DAMPER |
| 7 | PAF2.6-04000009 | 6G8-44532-00 | RUBBER BLOCK, DAMPER |
| 8 | PAGB/T5783-2000 | 68D-E5362-00 | BOLT |
| 9 | PAGB/T97.1-85 | 66M-11327-00-94 | WASHER |
| 10 | PAF2.6-04010001 | 93102-20108 | OIL SEAL |
| 11 | PAF2.6-04000004 | 69M-11351-A0 | CRANK CASE COMPLEX GASKET |
| 12 | PA62/22C3 | 93306-272Y2-00 | BALL BEARING |
| 13 | PAGB/T5783-2000 | 68D-E5362-00 | BOLT |
| 14 | PAF2.6-04050100 | 69M-E3102-00 | GEAR UNIT ASSY |
| 15 | PAF15-0000013 | P I N | |
| 16 | PAGB/T5783-2000 | 68D-E5362-00 | BOLT |
| 17 | PAF4-04000006 | 90201-08818 | WASHER |
| 18 | PAF4-04000001 | 90105-08M76 | BOLT, DISCHARGING OIL |
| 19 | PAF2.6-04060000 | OIL SEAL SHELL ASSY | |
| 20 | PAF2.6-04060002 | 93102-09004 | OIL SEAL |
| 21 | PAF4-04060002 | 93210-35537 | O RING |
| 22 | PAF2.6-04060001 | 69M-E5396-00-5B | SHELL, OIL SEAL |
| 23 | PAGB/T5783-2000 | 68D-E5362-00 | BOLT |
| 24 | PAF25-05000013 | CLAMP A | |
| 25 | PAGB/T5783-2000 | 68D-E5362-00 | BOLT |
| 26 | PAF2.6-04050001 | 69M-E5111-00-1S | CRANKCASE COVER |
