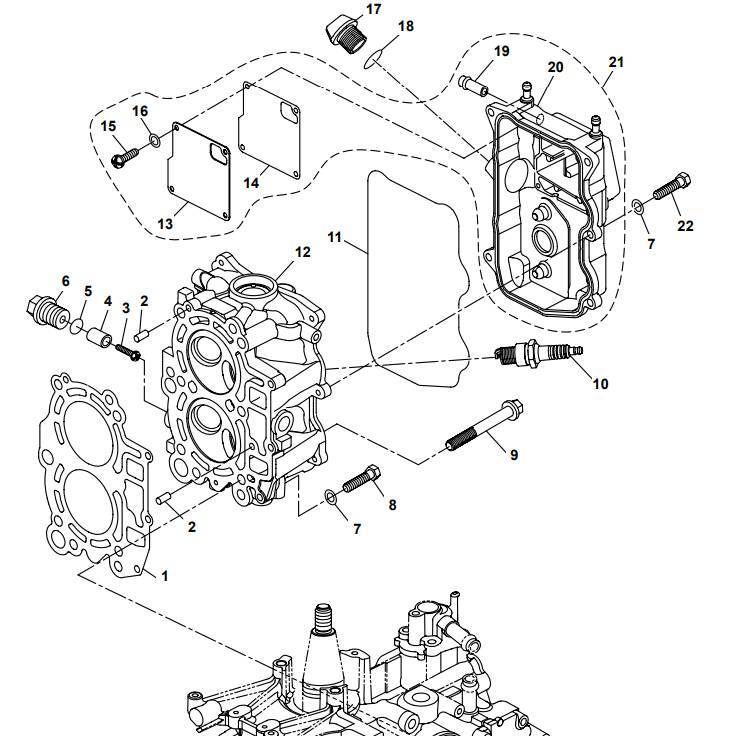

Cylinder Head
| Nummer: | Bestelnummer: | OEM: | Omschrijving: |
| 1 | PAF20-05000001 | 6AG-11181-10 | CYLINDER HEAD GASKET |
| 2 | PAF15-00000006 | 93606-12019 | PIN 6x12 |
| 3 | PAGB/T818-M5x25 | 97880-05025 | PAN HEAD SCREW M5x25 |
| 4 | PAF4-04070003 | 6G8-11325-00 | ANODE |
| 5 | PAGB/T3452.1-Ø13xØ2 | 93210-13M63 | O-RING Ø13xØ2 |
| 6 | PAF20-05030009 | 6G8-11197-A0 | ANODE BOLT |
| 7 | PAGB/T97.1-6 | 92990-06600 | WASHER 6 |
| 8 | PAF8-05000022 | 90119-06MA3 | BOLT M6x25 |
| 9 | PAF20-05000002 | 90105-09006 | FLANGE BOLT |
| 10 | PAF20-05000037 | NGKDPR7EA-9 | SPARK PLUG |
| 11 | PAF20-05040002 | 6AH-11356-00 | CYLINDER HEAD COVER SEAL RING |
| 12 | PAF20-05030100 | CYLINDER HEAD ASSY | |
| 13 | PAF20-05040003 | 6AH-11168-00-00 | COVER, BREATHER |
| 14 | PAF20-05040004 | 6AH-11169-00-00 | GASKET, BREATHER COVER |
| 15 | PAGB/T818-M4x10 | 98507-04010-00 | SCREW M4x10 |
| 16 | PAGB/T97.1-4 | 92907-04600-00 | WASHER 4 |
| 17 | PAF15-07050004 | 6G8-15363-00-00 | PLUG |
| 18 | PAJASOF40431-025 | 93210-24M79-00 | O-RING |
| 19 | PAF20-05040005 | 6AH-11372-00-00 | GAS, NIPPLE |
| 20 | PAF20-05040001 | 6AH-11191-00-1S | COVER, CYLINDER HEAD |
| 21 | PAF20-05040000 | CYLINDER HEAD COVER ASSY | |
| 22 | PAGB/T5783-M6x20 | 97095-06020-00 | BOLT M6x20 |
-
Yamaha / Parsun Gas, Nippel 15/20 PS (6AH-11372-00-00)Ab 13,72 € 11,53 €
-
Parsun Siegelring, Zylinderkopfdeckel (PAF20-05040002)Ab 16,67 € 14,01 €
-
Yamaha / Parsun Bolt, Flansch (90105-09006-00)Ab 13,72 € 11,53 €
-
Yamaha / Parsun Bolt, Anode 15/20 PS (6G8-11197-A0-00)Ab 15,69 € 13,18 €
-
Parsun Bolt (PAGB/T818-M4X10)4,87 € 4,09 €
| Nummer: | Bestellnummer: | OEM: | Beschreibung: |
| 1 | PAF20-05000001 | 6AG-11181-10-00 | GASKET, CYLINDER HEAD |
| 2 | PAF15-00000006 | 93606-12019-00 | PIN 6x12 |
| 3 | PAGB/T818-M5x25 | 98980-05025-00 | SCREW M5x25 |
| 4 | PAF4-04070003 | 6G8-11325-00-00 | ANODE |
| 5 | PAGB/T3452.1-Ø13xØ2 | 93210-13M63-00 | O-RING Ø13xØ2 |
| 6 | PAF20-05030009 | 6G8-11197-A0-00 | BOLT, ANODE |
| 7 | PAGB/T97.1-6 | 92990-06600-00 | WASHER 6 |
| 8 | PAF8-05000022 | BOLT M6x25 | |
| 9 | PAF20-05000002 | 90105-09006-00 | BOLT, FLANGE |
| 10 | PAF20-05000037 | DPR-6EB90-00-00 | SPARK PLUG |
| 11 | PAF20-05040002 | SEAL RING, CYLINDER HEAD COVER | |
| 12 | PAF20-05030100 | CYLINDER HEAD ASSY | |
| 13 | PAF20-05040003 | 6AH-11168-00-00 | COVER, BREATHER |
| 14 | PAF20-05040004 | 6AH-11169-00-00 | GASKET, BREATHER COVER |
| 15 | PAGB/T818-M4x10 | 98507-04010-00 | SCREW M4x10 |
| 16 | PAGB/T97.1-4 | 92907-04600-00 | WASHER 4 |
| 17 | PAF15-07050004 | 6G8-15363-00-00 | PLUG |
| 18 | PAJASOF40431-025 | 93210-24M79-00 | O-RING |
| 19 | PAF20-05040005 | 6AH-11372-00-00 | GAS, NIPPLE |
| 20 | PAF20-05040001 | 6AH-11191-00-1S | COVER, CYLINDER HEAD |
| 21 | PAF20-05040000 | CYLINDER HEAD COVER ASSY | |
| 22 | PAGB/T5783-M6x20 | 97095-06020-00 | BOLT M6x20 |
