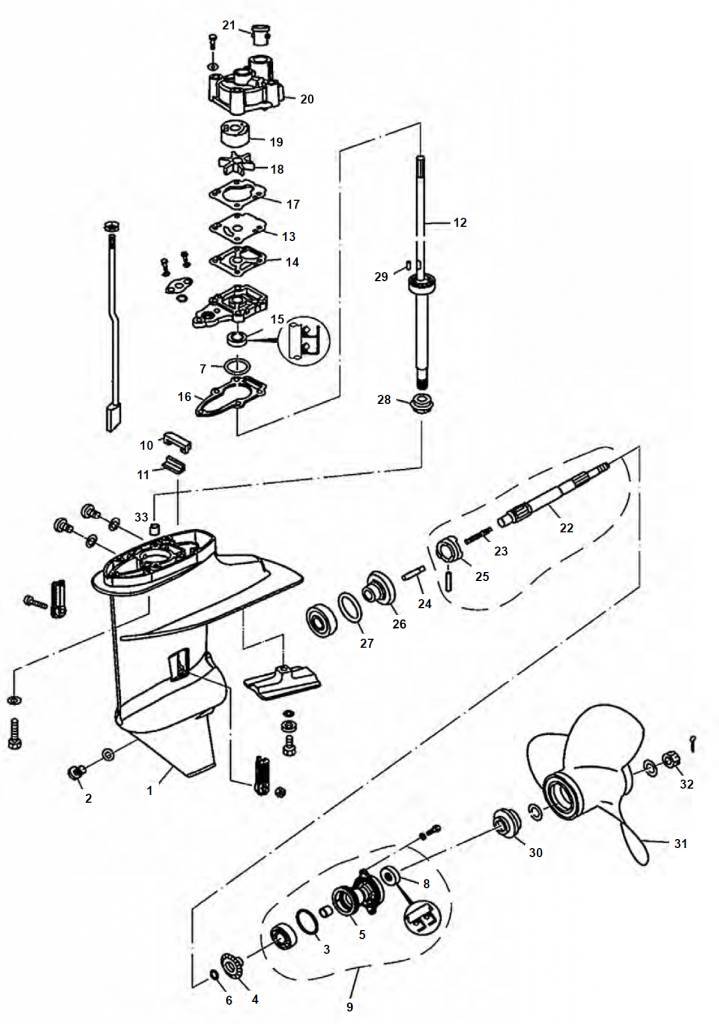

6 PS / 8 PS / 9.8 PS
| Nummer: | Bestelnummer: | OEM: | Omschrijving: |
| 1 | PAF8-04000001 | 803732A2 | LOWER CASING |
| 2 | PAF4-03000024 | 90430-08020-00, 332-60006-0, 95220 | GASKET |
| 3 | PAF4-03000023 | 90340-08002-00, 332-60005-2, 95368 3 | PLUG, OIL HOSE |
| 4 | PAF8-04000017 | WATER INLET | |
| 5 | PAGB/T823-M4X25 | SCREW M4X25 | |
| 6 | PAGB/T889.1-M4 | NUT, HEXAGON M4 | |
| 7 | PAGB/T5783-M6X25 | 10-82500925 | BOLT, HEXAGON M6X25 |
| 8 | PAGB/T97.1-6 | 92990-06600-00 | WASHER 6 |
| 9 | PAF8-04000018 | ANODE | |
| 10 | PAGB/T5783-M6X35 | 10-88348935 | BOLT, HEXAGON M6X35 |
| 11 | PAF2.6-03000009 | 93210-05001 | O-RING |
| 12 | PAGB/T276-6004 | 16128 | BEARING 6004 |
| 13 | PAF8-04040002 | 345-65015-0, 345-65015-0, 16131 | O-RING |
| 14 | PAF8-04000014 | 3B2-64030-0, 3B2-64030-0, 803741 1 | GEAR, REVERSE |
| 15 | PAF8-04040001 | 3B2S60101-0, 3B2S60101-0, 8037632T03 | COVER, LOWER CASING |
| 16 | PAF8-04000012 | 369-64032-0, 369-64032-0, 16140 | WASHER |
| 17 | PAGB/T6170-M5 | NUT, HEXAGON M5 | |
| 18 | PAF8-04000004-1 | 3B2-64023-0, 3B2-64023-0, 853795 5 | SHIM 0.10mm |
| 18 | PAF8-04000004-2 | SHIM 0.15mm | |
| 18 | PAF8-04000004-3 | SHIM 0.20mm | |
| 19 | PAF8-04040004 | 369-60111-0, 369-60111-0, 16130 | OIL SEAL |
| 20 | PAF8-04040000 | 3B2S60100-0, 3B2S60100-0 | COVER ASSY, LOWER CASING |
| 21 | PAF8-04000016 | 3V1-60041-0, 3V1-60041-0, 895155 | GASKET, WATER SEAL |
| 22 | PAF8-04000015 | 3V1-60042-0, 3V1-60042-0, 895156 | WATER SEAL |
| 23 | PAF8-04020001(L) | 3V1-64307-1, 3V1-64307-1, 803738005 | DRIVE SHAFT ASSY (LARGE) |
| 23 | PAF8-04020001(S) | 3V1-64306-1, 803738004 | DRIVE SHAFT ASSY (SMALL) |
| 24 | PAF8-04000007 | 350-65025-0, 3B2-65025-0, 803753 1 | OUTER PLATE |
| 25 | PAF8-04000006 | 3B2-65029-0, 3B2-65029-0, 16158 6 | GASKET, OUTER PLATE |
| 26 | PAF8-04000011 | PLATE, O-RING | |
| 27 | PAF8-04000101 | 309-60111-0, 309-60111-0, 95348 | OIL SEAL |
| 28 | PAF8-04000005 | 3B2-65020-0, 3B2-65020-0, 16158 7 | GASKET, WATER PUMP SEAT |
| 29 | PAF8-04000008 | 3B2-65018-0, 3B2-65018-0, 16158 5 | GASKET, OUTER PLATE |
| 30 | PAF8-04000200 | 3B2-65021-1, 3B2-65021-1, 803748 1 | IMPELLER |
| 31 | PAF8-04000010 | 3B2-65011-0, 3B2-65011-0, 803751 1 | INNER SHELL, WATER PUMP |
| 32 | PAF8-04000009 | 3B2-65016-0, 3B2-65016-0, 803750A02 | WATER PUMP |
| 33 | PAF8-04000301 | 3V1-64211-0, 3V1-64211-0, 803744002 | SHAFT, PROPELLER |
| 34 | PAF8-04000302 | 3V1-64221-0, 3V1-64221-0, 892777002 | SPRING, CLUTCH |
| 35 | PAF8-04000305 | 369-64223-0, 369-64223-0, 16152 | PIN, CLUTCH |
| 36 | PAF8-04000102 | 803750A01, 3B2-64215-0 | WATER PUMP SEAT |
| 37 | PAF8-04000303 | 3B2-64215-0, 803745 1 | CLUTCH, DOG |
| 38 | PAGB/T879.1-3.5X28 | PIN 3.5X28 | |
| 39 | PAF8-04010000 | 3B2-64010-0, 3B2-64010-0, 803739 1 | GEAR,FORWARD |
| 40 | PAGB/T276-6204 | 8037331 | BEARING 6204 |
| 41 | PAF8-04000012-1 | 369-64014-0, 369-64014-0, 16141 | SHIM 0.10mm |
| 41 | PAF8-04000012-2 | 369-64015-0, 369-64015-0, 813277 | SHIM 0.15mm |
| 42 | PAF8-04000003 | 3B2-64020-0, 3B2-64020-0, 803740 1 | PINION |
| 43 | PAF8-04030000(L) | CAM ASSY, SHIFT ROD (LARGE) | |
| 43 | PAF8-04030000(S) | CAM ASSY, SHIFT ROD (SMALL) | |
| 44 | PAF8-04000021 | 3B2-65022-0, 3B2-65022-0, 95218 11 | PIN,DOWER |
| 45 | PAGB/T5783-M6X50 | BOLT HEXAGON M6X50 | |
| 46 | PAF8-04000000L | LOWER CASING ASSY (LARGE) | |
| 46 | PAF8-04000000S | LOWER CASING ASSY (SMALL) | |
| 47 | PAGB/T818-M5X6 | SCREW M5X6 | |
| 48 | PAGB/T5783-M6X25 | 10-88348935 | BOLT, HEXAGON M6X25 |
| 49 | PAF8-04000019 | 3B2-64230-1, 3B2-64230-1, 803743002 | CUSHION, PROPELLER |
| 50 | PAF8-04000020 | WASHER, PROPELLER SHAFT | |
| 51 | PAF8-04050000 | 3B2B645170, 3B2W64517-0 | PROPELLER ASSY |
| 52 | PAGB/T96-10 | 16146 | WASHER 10 |
| 53 | PAF15-06000016 | 90171-10M01, 369-64121-0, 16147 | NUT, HEXAGON |
| 54 | PAGB/T91-2.5X20 | PIN,COTTER | |
| 55 | PANSK FJ-1516 | 3V1-60211-0 | BEARING |
| 56 | PAGB/T861.1-6 | LOCK WASHER 6 | |
| 57 | PAF8-04040003 | BEARING | |
| 58 | PAF8-04000013 | 3B2-65016-0, 3B2-65016-0, 804903 | SEAL |
| 59 | PAF8-0400000L | 8M0135931 | COMPLETE GEAR HOUSING (LARGE) |
| 59 | PAF8-0400000S | 895154T02 | COMPLETE GEAR HOUSING (SMALL) |
-

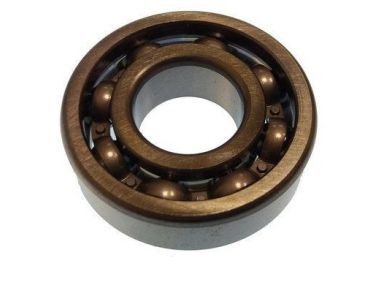

Yamaha / Parsun / Mercruiser Lager 6204 (8037331)Ab 12,74 € 10,70 €
-
Yamaha / Parsun untere Gehäuse F6, F8 & F9.8 (PAF8-04000001)Ab 119,93 € 100,79 €
-

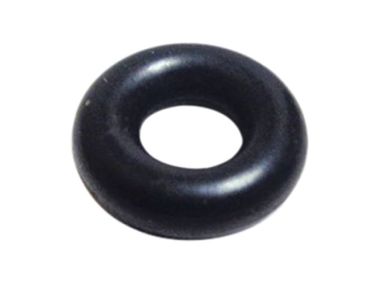

Mercury O-Ring (16131)Ab 4,87 € 4,09 €
Mercury 8/9.9 pk 4-takt en Tohatsu 6/8/9.8 pk staartstuk onderdelen
| Nummer: | Bestellnummer: | OEM: | Beschreibung: |
| 1 | PAF8-04000001 | 803732A2 | LOWER CASING |
| 2 | PAF4-03000024 | 90430-08020-00, 332-60006-0, 95220 | GASKET |
| 3 | PAF4-03000023 | 90340-08002-00, 332-60005-2, 95368 3 | PLUG, OIL HOSE |
| 4 | PAF8-04000017 | WATER INLET | |
| 5 | PAGB/T823-M4X25 | SCREW M4X25 | |
| 6 | PAGB/T889.1-M4 | NUT, HEXAGON M4 | |
| 7 | PAGB/T5783-M6X25 | 10-82500925 | BOLT, HEXAGON M6X25 |
| 8 | PAGB/T97.1-6 | 92990-06600-00 | WASHER 6 |

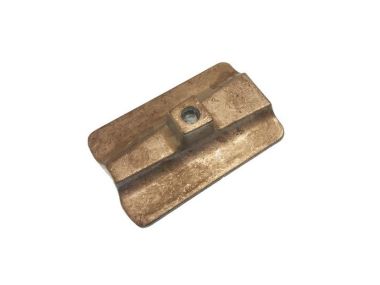

| 9 | PAF8-04000018 | ANODE | |
| 10 | PAGB/T5783-M6X35 | 10-88348935 | BOLT, HEXAGON M6X35 |
| 11 | PAF2.6-03000009 | 93210-05001 | O-RING |
| 12 | PAGB/T276-6004 | 16128 | BEARING 6004 |
| 13 | PAF8-04040002 | 345-65015-0, 345-65015-0, 16131 | O-RING |
| 14 | PAF8-04000014 | 3B2-64030-0, 3B2-64030-0, 803741 1 | GEAR, REVERSE |
| 15 | PAF8-04040001 | 3B2S60101-0, 3B2S60101-0, 8037632T03 | COVER, LOWER CASING |
| 16 | PAF8-04000012 | 369-64032-0, 369-64032-0, 16140 | WASHER |
| 17 | PAGB/T6170-M5 | NUT, HEXAGON M5 | |
| 18 | PAF8-04000004-1 | 3B2-64023-0, 3B2-64023-0, 853795 5 | SHIM 0.10mm |
| 18 | PAF8-04000004-2 | SHIM 0.15mm | |
| 18 | PAF8-04000004-3 | SHIM 0.20mm | |
| 19 | PAF8-04040004 | 369-60111-0, 369-60111-0, 16130 | OIL SEAL |
| 20 | PAF8-04040000 | 3B2S60100-0, 3B2S60100-0 | COVER ASSY, LOWER CASING |
| 21 | PAF8-04000016 | 3V1-60041-0, 3V1-60041-0, 895155 | GASKET, WATER SEAL |
| 22 | PAF8-04000015 | 3V1-60042-0, 3V1-60042-0, 895156 | WATER SEAL |
| 23 | PAF8-04020001(L) | 3V1-64307-1, 3V1-64307-1, 803738005 | DRIVE SHAFT ASSY (LARGE) |
| 23 | PAF8-04020001(S) | 3V1-64306-1, 803738004 | DRIVE SHAFT ASSY (SMALL) |
| 24 | PAF8-04000007 | 350-65025-0, 3B2-65025-0, 803753 1 | OUTER PLATE |
| 25 | PAF8-04000006 | 3B2-65029-0, 3B2-65029-0, 16158 6 | GASKET, OUTER PLATE |
| 26 | PAF8-04000011 | PLATE, O-RING | |
| 27 | PAF8-04000101 | 309-60111-0, 309-60111-0, 95348 | OIL SEAL |
| 28 | PAF8-04000005 | 3B2-65020-0, 3B2-65020-0, 16158 7 | GASKET, WATER PUMP SEAT |
| 29 | PAF8-04000008 | 3B2-65018-0, 3B2-65018-0, 16158 5 | GASKET, OUTER PLATE |
| 30 | PAF8-04000200 | 3B2-65021-1, 3B2-65021-1, 803748 1 | IMPELLER |
| 31 | PAF8-04000010 | 3B2-65011-0, 3B2-65011-0, 803751 1 | INNER SHELL, WATER PUMP |
| 32 | PAF8-04000009 | 3B2-65016-0, 3B2-65016-0, 803750A02 | WATER PUMP |
| 33 | PAF8-04000301 | 3V1-64211-0, 3V1-64211-0, 803744002 | SHAFT, PROPELLER |
| 34 | PAF8-04000302 | 3V1-64221-0, 3V1-64221-0, 892777002 | SPRING, CLUTCH |
| 35 | PAF8-04000305 | 369-64223-0, 369-64223-0, 16152 | PIN, CLUTCH |
| 36 | PAF8-04000102 | 803750A01, 3B2-64215-0 | WATER PUMP SEAT |
| 37 | PAF8-04000303 | 3B2-64215-0, 803745 1 | CLUTCH, DOG |
| 38 | PAGB/T879.1-3.5X28 | PIN 3.5X28 | |
| 39 | PAF8-04010000 | 3B2-64010-0, 3B2-64010-0, 803739 1 | GEAR,FORWARD |
| 40 | PAGB/T276-6204 | 8037331 | BEARING 6204 |
| 41 | PAF8-04000012-1 | 369-64014-0, 369-64014-0, 16141 | SHIM 0.10mm |
| 41 | PAF8-04000012-2 | 369-64015-0, 369-64015-0, 813277 | SHIM 0.15mm |
| 42 | PAF8-04000003 | 3B2-64020-0, 3B2-64020-0, 803740 1 | PINION |
| 43 | PAF8-04030000(L) | CAM ASSY, SHIFT ROD (LARGE) | |
| 43 | PAF8-04030000(S) | CAM ASSY, SHIFT ROD (SMALL) | |
| 44 | PAF8-04000021 | 3B2-65022-0, 3B2-65022-0, 95218 11 | PIN,DOWER |
| 45 | PAGB/T5783-M6X50 | BOLT HEXAGON M6X50 | |
| 46 | PAF8-04000000L | LOWER CASING ASSY (LARGE) | |
| 46 | PAF8-04000000S | LOWER CASING ASSY (SMALL) | |
| 47 | PAGB/T818-M5X6 | SCREW M5X6 | |
| 48 | PAGB/T5783-M6X25 | 10-88348935 | BOLT, HEXAGON M6X25 |
| 49 | PAF8-04000019 | 3B2-64230-1, 3B2-64230-1, 803743002 | CUSHION, PROPELLER |
| 50 | PAF8-04000020 | WASHER, PROPELLER SHAFT | |
| 51 | PAF8-04050000 | 3B2B645170, 3B2W64517-0 | PROPELLER ASSY |
| 52 | PAGB/T96-10 | 16146 | WASHER 10 |
| 53 | PAF15-06000016 | 90171-10M01, 369-64121-0, 16147 | NUT, HEXAGON |
| 54 | PAGB/T91-2.5X20 | PIN,COTTER | |
| 55 | PANSK FJ-1516 | 3V1-60211-0 | BEARING |
| 56 | PAGB/T861.1-6 | LOCK WASHER 6 | |
| 57 | PAF8-04040003 | BEARING | |
| 58 | PAF8-04000013 | 3B2-65016-0, 3B2-65016-0, 804903 | SEAL |
| 59 | PAF8-0400000L | 8M0135931 | COMPLETE GEAR HOUSING (LARGE) |
| 59 | PAF8-0400000S | 895154T02 | COMPLETE GEAR HOUSING (SMALL) |
