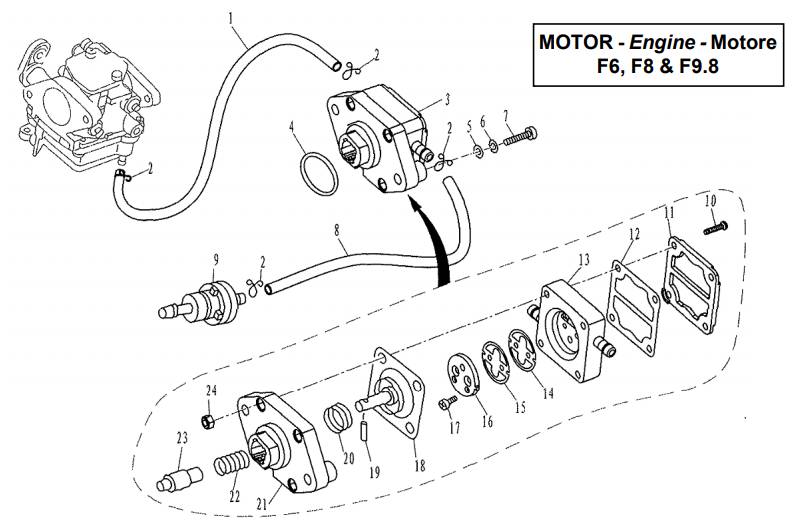

Fuel System
| Nummer: | Bestelnummer: | OEM: | Omschrijving: |
| 1 | PAF8-05000015 | FUEL HOSE | |
| 2 | PAF4-04000030 | 90467-09M09 | CLIP”B”, FUEL HOSE |
| 3 | PAF8-05070000 | FUEL PUMP ASSY | |
| 4 | PAJASO F404-A-24-021 | 0-RING,FUEL PUMP | |
| 5 | PAGB/T97.1-6 | 92990-06600-00 | WASHER 6 |
| 6 | PAGB/T93-6 | SPRING-WASHER 6 | |
| 7 | PAGB/T5783-M6X30 | BOLT M6X30 | |
| 8 | PAF8-05000014 | FUEL HOSE | |
| 9 | PAF4-05000300 | 646-24251-02 | FUEL FILTER ASSY |
| 10 | PAGB/T823-M4X25 | SCREW, SMALL PAN HEAD M4X25 | |
| 11 | PAF4-04090003 | 67D-24414-01 | COVER, FUEL PUMP |
| 12 | PAF4-04090004 | 66M-24471-00 | TOP DIAPHRAGM |
| 13 | PAF4-04090100A | 67D-24413-02 | SHELL, FUEL PUMP |
| 14 | PAF4-04090001A | VALVE “B” | |
| 15 | PAF4-04090002A | VALVE “A” | |
| 16 | PAF4-04090003A | LIMITING BLOCK,SEPTUM | |

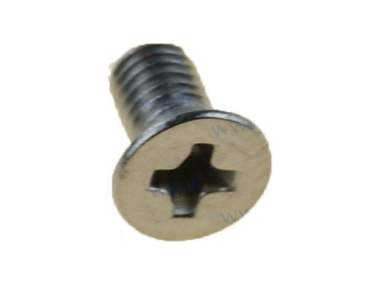

| 17 | PAGB/T8l9.2-M3X5 | SCREW M3X5 | |
| 18 | PAF4-04090100 | 67D-24413-02 | DIAPHAGH ASSY |
| 19 | PAGB/T309-3X12 | ROLLER NEEDLE O3X12 | |
| 20 | PAF4-04090008 | 67D-24423-00 | SPRING,DIAPHRAGM |
| 21 | PAF4-04090001 | SEAT, FUEL PUMP | |
| 22 | PAF4-04090007 | 67D-24454-00 | SPRING,PLUNGER |
| 23 | PAF8-05070001 | PLUNGER | |
| 24 | PAGB/T6170-M4 | NUT M4 |
-
Parsun Ventil "B" (PAF4-04090001A)11,75 € 9,88 €
-
Parsun Ventil "A" (PAF4-04090002A)8,80 € 7,40 €
