Carburetor
| Nummer: | Bestelnummer: | OEM: | Omschrijving: |
| 1 | PAF8-05040000 | 3FS-03100-0 | CARBURETOR ASSY |
| 2 | PAGB/T818-M4X10 | BOLT | |
| 3 | PAGB/T93-4 | WASHER, SPRING | |
| 4 | PAF8-05040003 | PLATE | |
| 5 | PAF8-05040002 | GASKET | |
| 6 | PAF8-05040009 | BOLT | |
| 7 | PAF8-05040010 | SPRING, THORTTEL | |
| 8 | PAGB/T818-M3X6 | BOLT | |
| 9 | PAGB/T93-3 | WASHER, SPRING | |
| 10 | PAF8-05040008 | APRON, ACCELERATOR | |
| 11 | PAF8-05040001 | 3V2031003M | CARBURETOR |
| 12 | PAF8-05040006 | BUSH, LINK | |
| 13 | PAGB/T896-4 | CIRCLIP | |
| 14 | PAF8-05040019 | VALVE, NEEDLE | |
| 15 | PAF8-05040020 | FLOAT | |
| 16 | PAF8-05040021 | PIN, FLOAT | |
| 17 | PAGB/T818-M4X6 | BOLT | |
| 18 | PAF8-05040022 | NOZZLE, MAIN | |
| 19 | PAF8-05040024 | SEAL | |
| 20 | PAF8-05040023 | JET, MAIN | |
| 21 | PAF8-05040025 | JET, AIR SLOW | |
| 22 | PAF8-05040026 | RUBBER CAP | |
| 23 | PAGB/T818-M3X5 | BOLT | |
| 24 | PAF8-05040018 | PLATE | |
| 25 | PAF8-05040012 | APRON, CHOKE | |
| 26 | PAF8-05040200 | LINK, CHOKE | |
| 27 | PAF8-05040022 | TIE-IN | |
| 28 | PAF8-05040100 | SWING LINK, ACCELERATOR | |
| 29 | PAF8-05040004 | BUSH, SWING LINK | |
| 30 | PAF8-05040005 | WRING SPRING | |
| 31 | PAF8-05040007 | SEAL | |
| 32 | PAF8-05040013 | SCREW, AIR ADJUSTING | |
| 33 | PAF8-05040014 | SEAL | |
| 34 | PAF8-05040015 | SCREW, AIR ADJUSTING | |
| 35 | PAF8-05040027 | GASKET, FLOAT CHAMBER | |
| 36 | PAF8-05040402 | FILTER | |
| 37 | PAF8-05040403 | SCREW, DRAIN | |
| 38 | PAF8-05040401 | GASKET | |
| 39 | PAF8-05040404 | CUP, BODY | |
| 40 | PAGB/T818-M4X12 | BOLT | |

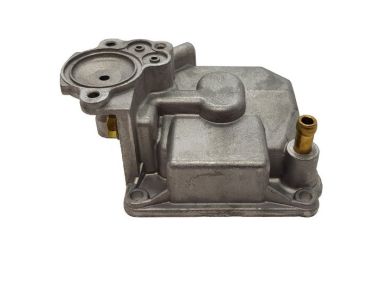

| 41 | PAF8-05040400 | BODY, FLOAT CHAMBER |
-

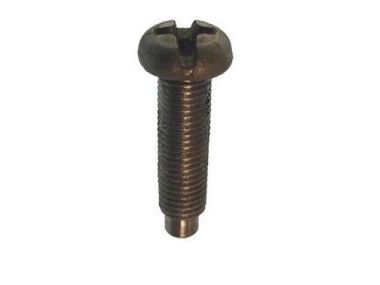

Parsun Bolt (PAF8-05040009)12,74 € 10,70 €
