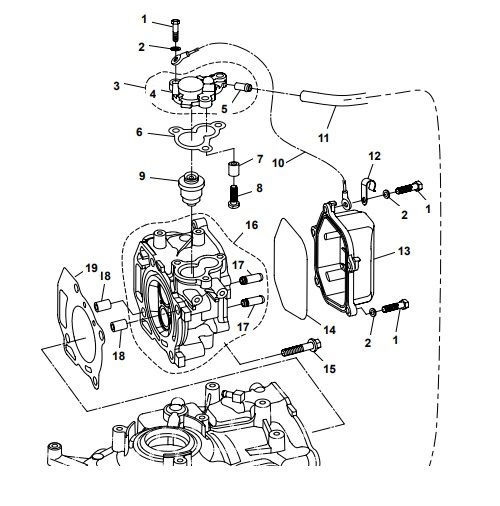

Cylinder Head
| Nummer: | Bestelnummer: | Origineel onderdeelnummer: | Omschrijving: | Aantal stuks: |
| 1 | PAGB/T5783-M6x20 | 10-40011128, 825702, 97080-06020-00, 97095-06020, 910184-5620 | BOLT M6x20 | 8 |
| 2 | PAGB/T97.1-6 | 12-16826, 92990-06600-00, 92995-06600, 910184-5620 | WASHER 6 | 8 |
| 3 | PAF4-04070000 | THERMOSTAT COVER ASSY | 1 | |
| 4 | PAF4-04070001 | COVER THERMOSTAT | 1 | |
| 5 | PAF4-04010102 | 650-24378-00, 6EE-F437700-00 | NOZZLE | 1 |
| 6 | PAF4-04000011 | 27-824853, 62Y-12414-00, 68D-E2414-A0 | GSKET, THERMOSTAT COVER | 1 |
| 7 | PAF4-04070003 | 68D-E1325-00, 6G8-11325-00-00 | ANODE, THERMOSTAT COVER | 1 |
| 8 | PAGB/T818-M5x25 | SCREW M5x25 | 1 | |
| 9 | PAF15-07000031 | 825212, 825212001, 825212T02, 855676003, 66M-12411-01, 6G8-12411-02 | THERMOSTAT (S60) | 1 |
| 10 | PAF6-04000009 | WIRE, LEAD | 1 | |
| 11 | PAF6-04000020 | PIPE, RETURN WATER | 1 | |
| 12 | PAT36-04000023 | CLAMP | 1 | |
| 13 | PAF6-04000004 | COVER, CYLINDER HEAD | 4 | |
| 14 | PAF6-04000005 | SEAL, RING | 1 | |
| 15 | PAF4-04000034 | 90105-08M36, 90105-08M36-00 | BOLT, CYLINDER HEAD | 1 |
| 16 | PAF6-04050100 | CYLINDER HEAD ASSY | 1 | |
| 17 | PAF4-04080102 | GUIDE, VALVE | 2 | |
| 18 | PAF4-04000003 | 99510-10114, 99530-10114-00 | HOLLOW PIN Ø10x8.4x14 | 2 |
| 19 | PAF6-04000002 | GASKET, CYLINDER HEAD | 1 |
-

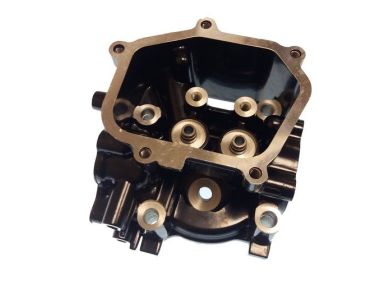

Parsun Cylinder Head Assembly (PAF6-04050100)124,85 € 104,92 €
-
Parsun wire lead (PAF6-04000009)10,77 € 9,05 €
-
Parsun seal ring (PAF6-04000005)9,79 € 8,22 €
