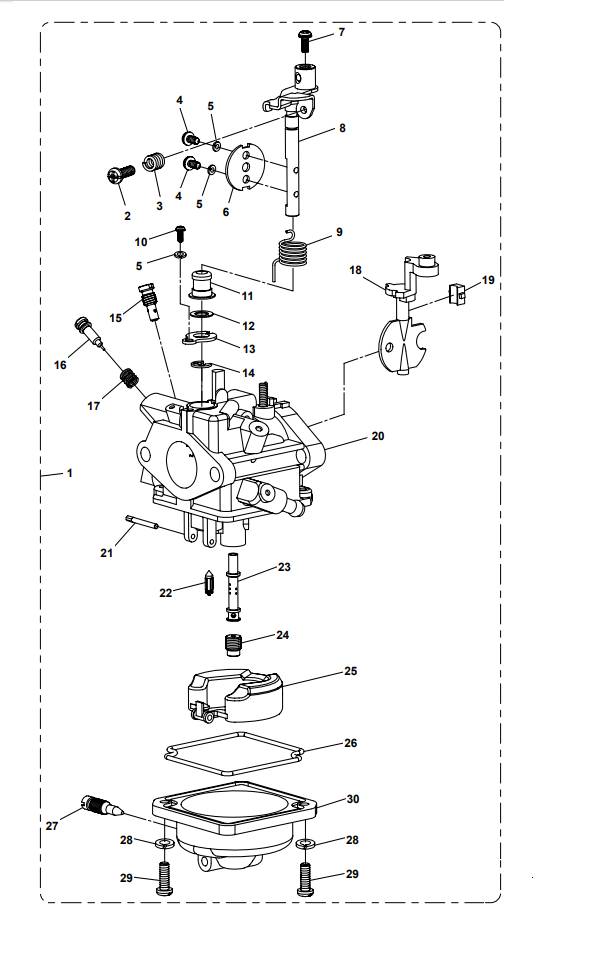

Carburetor Assembly
| Nummer: | Bestelnummer: | Origineel onderdeelnummer: | Omschrijving: | Aantal stuks: |
| 1 | PAF6-04060000 | CARBURETOR ASSY | 1 | |
| 2 | PAF6-04060006 | SCREW, AIR ADJUSTING | 1 | |
| 3 | PAF6-04060007 | SPRING | 1 | |
| 4 | PAGB/T818-M3x6 | SCREW M3x6 | 2 | |
| 5 | PAGB/T93-3 | SPRING WASHER 3 | 3 | |
| 6 | PAF6-04060008 | APRON, ACCELERATOR | 1 | |
| 7 | PAGB/T818-M4x8 | SCREW M4x8 | 1 | |
| 8 | PAF6-04060100 | ACCELERATOR BAR ASSY | 1 | |
| 9 | PAF6-04060002 | SPRING, SWING LINK | 1 | |
| 10 | PAGB/T818-M3x8 | N/a | SCREW M3x8 | 1 |
| 11 | PAF6-04060003 | BUSHING | 1 | |
| 12 | PAF6-04060004 | WASHER, NYLON | 1 | |
| 13 | PAF6-04060005 | PRESSING PLATE | 1 | |
| 14 | PAGB/T896-4 | CIRCLIP 4 | 1 | |
| 15 | PAF6-04060013 | JET, AIR ADJUSTING | 1 | |
| 16 | PAF6-04060011 | SCREW, MIXTURE | 1 | |
| 17 | PAF6-04060012 | SPRING | 1 | |
| 18 | PAF6-04060009 | APRON, AIR CHOKE | 1 | |
| 19 | PAF6-04060010 | BLOCK, AIR CHOKE | 1 | |
| 20 | PAF6-04060001 | BODY, CARBURETOR | 1 | |
| 21 | PAF6-04060016 | PIN, FLOAT | 1 | |
| 22 | PAF6-04060014 | NEEDLE VALVE | 1 | |
| 23 | PAF6-04060017 | MAIN NOZZLE | 1 | |
| 24 | PAF6-04060018 | MAIN JET | 1 | |
| 25 | PAF6-04060015 | FLOAT | 1 | |
| 26 | PAF6-04060020 | SEAL RING | 1 | |
| 27 | PAF6-04060021 | SCREW, DRAIN | 1 | |
| 28 | PAGB/T93-4 | SPRING WASHER 4 | 2 | |
| 29 | PAGB/T818-M4x12 | SCREW M4x12 | 2 | |
| 30 | PAF6-04060019 | BODY, OIL CUP | 1 |
-
Yamaha / Parsun Vergaser 6 PS 4T 6BX-14301-00Ab 88,46 € 74,34 €
-

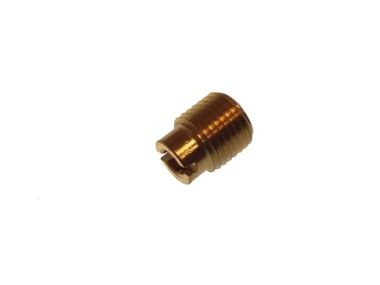

Parsun jet, air adjusting (PAF6-04060013)15,69 € 13,18 €
-

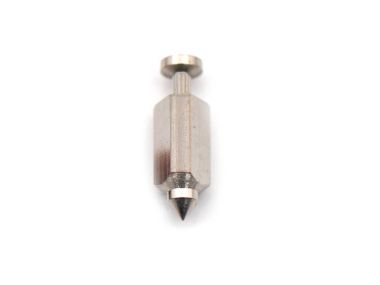

Parsun Needle Valve (PAF6-04060014)13,72 € 11,53 €
-

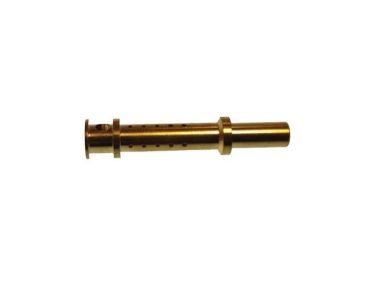

Parsun main nozzle (PAF6-04060017)14,70 € 12,36 €
-

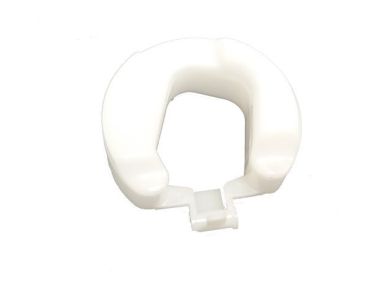

Parsun float (PAF6-04060015)14,70 € 12,36 €
-

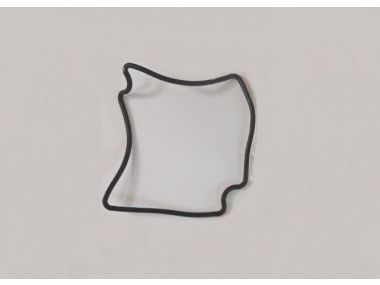

Parsun Dichtungsring (PAF6-04060020)13,72 € 11,53 €
-

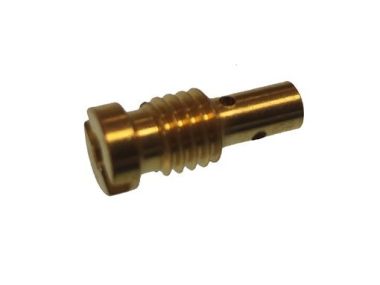

Parsun Schraube, mixture (PAF6-04060011)14,70 € 12,36 €
-

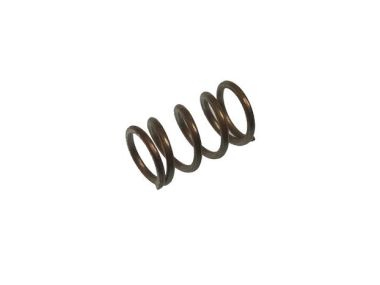

Parsun spring (PAF6-04060012)4,87 € 4,09 €
-
Parsun main jet (PAF6-04060018)15,69 € 13,18 €
