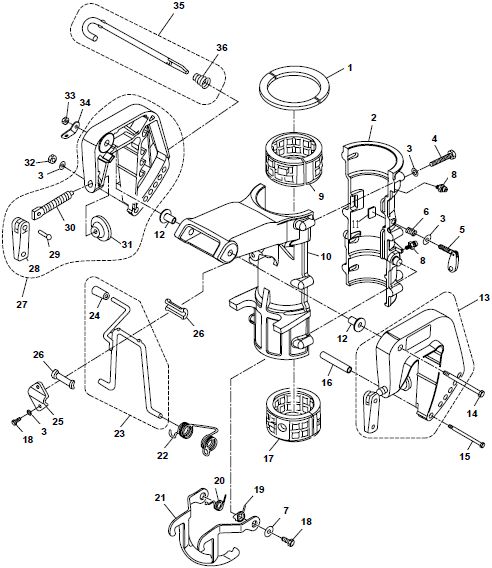

Bracket
| Nummer: | Bestelnummer: | Origineel onderdeelnummer: | Omschrijving: | Aantal stuks: |
| 1 | PAT5-01010003 | NYLON GASKET | 2 | |
| 2 | PAF6-01010101 | COVER, ROTARY BRACKET | 1 | |
| 3 | PAGB/T97.1-6 | 92995-06600 | WASHER 6 | 10 |
| 4 | PAGB/T5783-M6x35 | 10-88348935 | BOLT M6x35 | 6 |
| 5 | PAF2.6-01050100 | LOCKET HANDLE ASSY | 1 | |
| 6 | PAF2.6-01050002 | 90501-12803 | COMPRESS SPRING | 1 |
| 7 | PAGB/T96-6 | BIG WASHER 6 | 3 | |
| 8 | PAJB/T9740.1-M6 | OILER M6 | 2 | |
| 9 | PAT5-01010004 | UPPER ABSORBER | 1 | |
| 10 | PAF6-01010001 | SEAT, ROTARY BRACKET | 1 | |
| 11 | PAT5-01010100 | LOCKED BLOCK ASSY | 2 | |
| 12 | PAF4-01000003 | NYLON WASHER | 2 | |
| 13 | PAF4-01010000 | 6L8-G3111-01-4D | CLAMP BRACKET ASSY (RIGHT) | 1 |
| 14 | PAGB/T5782-M8x140 | BOLT M8x140 | 1 | |
| 15 | PAGB/T5782-M6x130 | BOLT M6x130 | 1 | |
| 16 | PAF8-01010001 | TUBE BOLT | 1 | |
| 17 | PAT5-01010005 | LOWER ABSORBER | 1 | |
| 18 | PAGB/T5783-M6x12 | BOLT M6x12 | 4 | |
| 19 | PAF4-01000007 | 90508-14M11 | WREST SPRING (RIGHT) | 1 |
| 20 | PAF4-01000006 | 90508-14M10 | WREST SPRING (LEFT) | 1 |
| 21 | PAT5-01010300 | LOCKED HOOK ASSY, TILT | 1 | |
| 22 | PAT5-01010002 | WREST SPRING, BRACKET | 1 | |
| 23 | PAT5-01010400 | SUPPORT ASSY | 1 | |
| 24 | PAF4-01030103 | 6E0-43632-00 | HANDLE SHEATH | 1 |
| 25 | PAF8-01010105 | 16210 | PRESS PLATE | 1 |
| 26 | PAF8-01010103 | 825113 | BUSHING, BRACKET | 2 |
| 27 | PAF4-01020000 | 6L8-G3112-00-4D | CLAMP BRACKET ASSY (LEFT) | 1 |
| 28 | PAF4-01010004 | 6L8-G3118-01 | CLAMP HANDLE, STERN | 2 |
| 29 | PAF4-01010005 | 90243-04M01 | RIVET, CLAMP HANDLE | 2 |
| 30 | PAF4-01010002 | CLAMP SCREW | 2 | |
| 31 | PAF4-01010003 | 620-43114-00 | CLAMP PAD | 2 |
| 32 | PAGB/T6170-M6 | NUT M6 | 1 | |
| 33 | PAGB/T889.1-M8 | 3V1-61324-0 | LOCKING NUT M8 | 1 |
| 34 | PAF4-01000002 | 68D-G3113-00 | PLATE, TWO HOLE | 1 |
| 35 | PAF8-01010200 | 16198 | THRUST ROD ASSY | 1 |
| 36 | PAF4-01050002 | 90502-08M05 | CONICAL SPRING | 1 |
-
