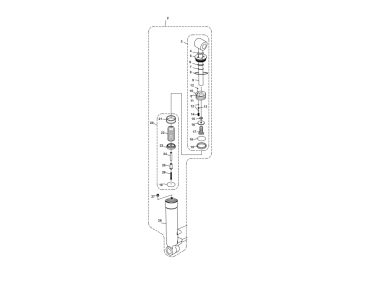

Power Trim & Tilt
| NR: |
Bestelnummer: |
OEM: |
Omschrijving: |
Aantal: |
| 1 |
PAT40-10000000 |
65W-43800-00-4D |
HYDRAULIC TILT ASSY |
1 |
| 2 |
PAT40-10010000 |
|
LOCATING CYLINDER ASSY |
1 |
| 3 |
PAT40-10030000 |
|
LOCATING CYLINDER & PISTON |
1 |
| 4 |
PAT40-10030202 |
|
OIL SEAL 15x23x5 |
1 |
| 5 |
PAT40-10030200 |
|
PISTON NUT |
1 |
| 6 |
PAJISB2407P15T2 |
|
CIRCLIP P15T2 |
1 |
| 7 |
PAJISB2401P15 |
|
O-RING Ø14.8x2.4 |
1 |
| 8 |
PAJASOF40424-045 |
|
O-RING Ø44.7x2.4 |
1 |
| 9 |
PAT40-10030100 |
|
SHAFT, TILT ASSY |
1 |
| 10 |
PAT40-10030301 |
|
PISTON |
1 |
| 11 |
PAGB/T879.4-Ø1.5x12 |
|
PIN 1.5x12 |
1 |
| 12 |
PAT85-06020202 |
|
BALL 4 |
12 |
| 13 |
PAT85-06020005 |
|
SEAT, SPRING |
7 |
| 14 |
PAT40-10030001 |
|
SPRING |
5 |
| 15 |
PAT40-10030002 |
|
WASHER |
1 |
| 16 |
PAT40-10030002 |
|
WASHER |
1 |
| 17 |
PAGB/T70.2-M10x1.25x40 |
|
SCREW M10x1.25x40 |
1 |
| 18 |
PAJISB2401P39 |
|
O-RING Ø38.7x3. 5 |
2 |
| 19 |
PAJISB2407P39T |
|
RING, BACK UP P39T2 |
1 |
| 20 |
PAT40-10010100 |
|
FREE PISTON SUB ASSY |
1 |
| 21 |
PAT40-10010101 |
|
FREE PISTON |
1 |
| 22 |
PAT40-10010102 |
|
SPRING |
1 |
| 23 |
PAT40-10010104 |
|
SEAL |
1 |
| 24 |
PAT40-10010103 |
|
BUSH, BOLT |
1 |
| 25 |
PAT40-10010105 |
|
BUSH, PISTON |
1 |
| 26 |
PAGB/T70.2-M4x35 |
|
SCREW M4x35 |
1 |
| 27 |
PAF15-07010004 |
479452 |
BLOCK, CYLINDER 1/8" |
1 |
| 28 |
PAT40-10000002 |
|
POSITIONING CYLINDER |
1 |
| 29 |
JPAISFG11.2 |
|
O-RING Ø10.7xØ1.5 |
3 |
| 30 |
PAT40-10000001 |
|
BALL 1/8 |
2 |
| 31 |
PAT85-06020014 |
|
SPRING, PISTON |
2 |
| 32 |
PAT85-06010201 |
6H1-43816-00 |
FILTER |
1 |
| 33 |
PAJISFG6 |
|
O-RING Ø5.5x1.5 |
4 |
| 34 |
PAT40-10020500 |
65W-43880-00 |
TILT MOTOR |
1 |
| 35 |
PAGB/T70.1-M6x20 |
|
SCREW M6x20 |
4 |
| 36 |
PAGB/T3452.1-Ø48x2 |
|
O-RING Ø48x2 |
1 |
| 37 |
PAT40-10020004 |
|
SPRING |
1 |
| 38 |
PAT40-10020003 |
|
LINK, MOTOR |
1 |
| 39 |
PAGB/T70.1-M4x25 |
|
BOLT M4x25 |
4 |
| 40 |
PAT85-06010705 |
|
ROLLER Ø4x21.8 G2-2-4 |
2 |
| 41 |
PAT40-10020400 |
|
GEAR PUMP ASSY |
1 |
| 42 |
PAJISFG5 |
|
O-RING Ø4.5xØ1.5 |
2 |
| 43 |
PAT40-10020002 |
|
SPRING |
1 |
| 44 |
PAT85-06010205 |
6H1-43844-10 |
PIN, VALVULA SUPORTE |
1 |
| 45 |
PAT85-06010207 |
|
SEAL, MAIN VALVE |
1 |
| 46 |
PAT40-10020005 |
|
FILTER, PUMP |
2 |
| 47 |
PAJISFG4 |
|
O-RING Ø3.5x1.5 |
2 |
| 48 |
PAT40-10020001 |
67F-43802-00 |
HOUSING |
1 |
| 49 |
PAT40-10020301 |
|
PIN, VALVE SUPPORT |
1 |
| 50 |
PAJISB2401PJ |
|
O-RING Ø2.8x1.9 |
1 |
| 51 |
PAJISB2401P8 |
|
O-RING Ø7.8x1.9 |
1 |
| 52 |
PAJISB2401P9 |
|
O-RING Ø8.8x1.9 |
3 |
| 53 |
PAT40-10020302 |
|
SEAT, RELIEF VALVE |
1 |
| 54 |
PAT40-10020303 |
|
SEAT, SPRING |
1 |
| 55 |
PAT40-10020304 |
|
SPRING, UP RELIEF |
1 |
| 56 |
JPAISB 2401 P11 |
|
O-RING Ø10.8x2.4 |
1 |
| 57 |
PAT40-10020305 |
|
SCREW, VALVE LOCK |
1 |
| 58 |
PAT85-06010503 |
67F-43802-00 |
VALVE SUB ASSY |
2 |
| 59 |
PAJISB2401P12.5 |
|
O-RING Ø12x1.5 |
2 |
| 60 |
PAJISFG12 |
|
O-RING Ø11.5x1.5 |
2 |
| 61 |
PAT85-06010501 |
6H1-43841-11 |
PISTON, SHUTTLE |
1 |
| 62 |
PAT85-06010009 |
6H1-43829-00 |
SCREW |
1 |
| 63 |
PAT85-06010601 |
6H1-43847-00 |
WASHER, SEAL |
2 |
| 64 |
PAT40-10020201 |
|
SEAT, SPRING |
1 |
| 65 |
PAT40-10020202 |
|
SPRING |
1 |
| 66 |
PAJISFG10 |
|
O-RING Ø9.5x1.5 |
1 |
| 67 |
PAT85-06010606 |
6H1-43845-00 |
SCREW, MANUAL RELEASE |
1 |
| 68 |
PAGB/T3452.1-17.5x2.65 |
|
O-RING Ø17.5x2.65 |
1 |
| 69 |
PAGB/T893.1-20 |
|
RING, SNAP CIRCLIP 20 |
1 |
| 70 |
PAGB/T70.1-M6x75 |
|
BOLT M6x75 |
3 |
| 71 |
PAT85-06010002 |
|
BLOCK, CYLINDER 1/16” |
5 |
