Lower Casing & Drive 1
| NR: |
Bestelnummer: |
OEM: |
Omschrijving: |
Aantal: |
| 1 |
PAF40-04000000L |
66T-45311-00-4D |

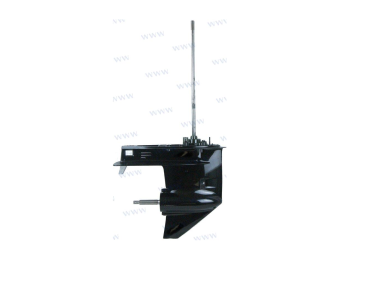

LOWER CASING ASSY (L) |
1 |
| 1 |
PAF40-04000000S |
66T-45311-01-4D |
LOWER CASING ASSY (S) |
1 |
| 2 |
PAT40-04000001 |
66T-45311-00-4D |

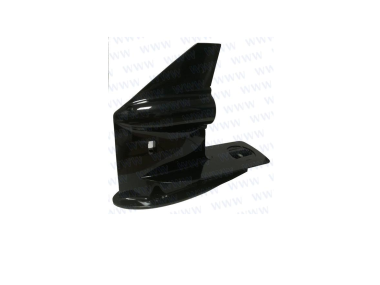

LOWER CASING |
1 |
| 3 |
PAT40-04000006 |
90170-12138 |
NUT, PINION |
1 |
| 4 |
PAT40-04000005 |
66T-45551-00 |
PINION |
1 |
| 5 |
PAGB/T820-M5x30 |
|
PINION |
1 |
| 6 |
PAT40-04000022 |
63D-45214-00 |
WATER INLET A |
1 |
| 7 |
PAT40-04000004-1 |
663-45567-01-00 |
SHIM (t: 0.10 mm) |
1 |
| 7 |
PAT40-04000004-2 |
663-45567-10-00 |
SHIM (t: 0.12 mm) |
1 |
| 7 |
PAT40-04000004-3 |
663-45567-01-15 |
SHIM (t: 0.15 mm) |
1 |
| 7 |
PAT40-04000004-4 |
663-45567-01-18 |
SHIM (t: 0.18 mm) |
1 |
| 7 |
PAT40-04000004-5 |
663-45567-01-30 |
SHIM (t: 0.30 mm) |
1 |
| 7 |
PAT40-04000004-6 |
663-45567-01-40 |
SHIM (t: 0.40 mm) |
1 |
| 7 |
PAT40-04000004-7 |
663-45567-01-50 |
SHIM (t: 0.50mm) |
1 |
| 8 |
PAKOYOHI-CAP322/32 |
|
ROLLER BEARING |
1 |
| 9 |
PAT40-04020000 |
66T-45560-00 |
FORWARD GEAR ASSY |
1 |
| 10 |
PAT40-04050000 |
|

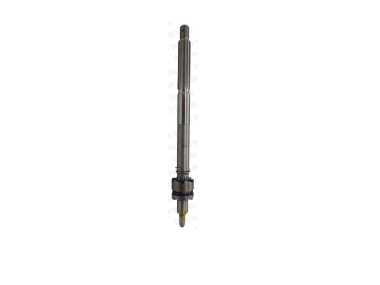

PROPELLER SHAFT ASSY |
1 |
| 11 |
PAT40-04050006 |
66T-45635-00 |
PLUNGER, SHIFT |
1 |
| 12 |
PAT40-04050002 |
90501-15M01 |
SPRING, CLUTCH |
1 |
| 13 |
PAT40-04050003 |
66T-45631-00 |
DOG CLUTCH |
1 |
| 14 |
PAT40-04050004 |
90250-06023 |
PIN, CLUTCH |
1 |
| 15 |
PAT40-04050005 |
663-45633-00 |
ANNULAR SPRING, CLUTCH |
1 |
| 16 |
PAT40-04050001 |
66T-45611-00 |
SHAFT, PROPELLER |
1 |
| 17 |
PAT40-04050007 |
90201-22429 |
WASHER, REVERSE GEAR |
1 |
| 18 |
PAT40-04060006 |
66T-45571-00 |
GEAR, REVERSE |
1 |
| 19 |
PAT40-04060005-1 |
|
SHIM (t: 0.10 mm) |
1 |
| 19 |
PAT40-04060005-2 |
63D-45577-00-12 |
SHIM (t: 0.12 mm) |
1 |
| 19 |
PAT40-04060005-3 |
63D-45577-00-15 |
SHIM (t: 0.15 mm) |
1 |
| 19 |
PAT40-04060005-4 |
663-45567-01-18 |
SHIM (t: 0.18 mm) |
1 |
| 19 |
PAT40-04060005-5 |
663-45567-01-30 |
SHIM (t: 0.30 mm) |
1 |
| 19 |
PAT40-04060005-6 |
663-45567-01-40 |
SHIM (t: 0.40 mm) |
1 |
| 19 |
PAT40-04060005-7 |
663-45567-01-50 |
SHIM (t: 0.50mm) |
1 |
| 20 |
PAT40-04060000 |
93210-69MG6-00 |
COVER ASSY, LOWER CASING |
1 |
| 21 |
PAKOYO6007C4 |
|

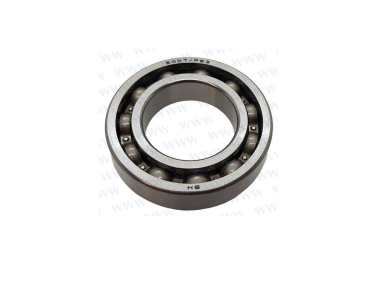

BEARING 6007 |
1 |
| 22 |
PAT40-04060002 |
93210-69MG6 |
O-RING A, COVER |
1 |
| 23 |
PAT40-04060003 |
93210-7477500 |
O-RING B, COVER |
2 |
| 24 |
PAT40-04060001 |
63D-45361-02-4D |
COVER, LOWER CASING |
1 |
| 25 |
PANTNHK2220JS |
|
BEARING 2220 |
1 |
| 26 |
PAF25-04010003 |
93101-22067 |
OIL SEAL |
4 |
| 27 |
PAGB/T5783-M8x25 |
97080-08025 |
BOLT M8x25 |
2 |
| 28 |
PAGB/T97.1-8 |
66M-11327-00-94 |
WASHER 8 |
2 |
| 29 |
PAT40-04000008 |
90201-27M00 |
BIG WASHER |
1 |
| 30 |
PAT40-04040000 |
|
CASING A ASSY, OIL SEAL |
1 |
| 31 |
PAJASOF40424-050 |
|
O-RING, CASING A |
1 |
| 32 |
PAT40-04040001 |
63D-44341-00 |
CASING A, OIL SEAL |
1 |
| 33 |
PAT40-04000009 |
66T-45344-00 |
COVER, OIL SEAL |
1 |
| 34 |
PAT40-04000010 |
63D-44316-00 |
GASKET, WATER PUMP SEAT |
1 |
| 35 |
PAT40-04000011 |
66T-44323-40 |
OUTER PLATE |
1 |
| 36 |
PAF25-04000007 |
61N-45551-00 |
DOWEL PIN Ø4x10 |
2 |
| 37 |
PAT40-04000205 |
93210-59MG7 |
O-RING |
1 |
| 38 |
PAF25-04040000 |
6H4-44352-00 |
IMPELLER ASSY, WATER PUMP |
1 |
| 39 |
PAT40-04000202 |
63D-44322-40 |
INNER SHELL, WATER PUMP |
1 |
| 40 |
PAT40-04000201 |
66T-44311-00 |
WATER PUMP HOUSING |
1 |
| 41 |
PAT40-04000012 |
|
PLATE, WATER PUMP |
4 |
| 42 |
PAGB/T5783-M8x30 |
910113-0830 |
BOLT M8x30 |
4 |
| 43 |
PAF40-04010000S |
|

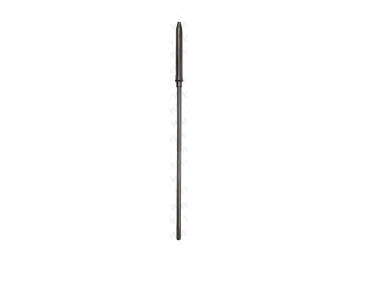

DRIVE SHAFT ASSY(S) |
|
| 43 |
PAF40-04010000L |
|
DRIVE SHAFT ASSY(L) |
1 |
| 44 |
PAF25-04000015 |
90280-03024 |
WOODRUFF KEY |
1 |
| 45 |
PA32005JRK0Y0 |
|
BEARING 32005 |
1 |
| 46 |
PAT40-04000003-1 |
663-45587-01-00 |
SHIM (t: 0.10 mm) |
1 |
| 46 |
PAT40-04000003-2 |
663-45587-00-12 |
SHIM (t: 0.12 mm) |
1 |
| 46 |
PAT40-04000003-3 |
63D-45577-00-15 |
SHIM (t: 0.15 mm) |
1 |
| 46 |
PAT40-04000003-4 |
663-45567-01-18 |
SHIM (t: 0.18 mm) |
1 |
| 46 |
PAT40-04000003-5 |
663-45567-01-30 |
SHIM (t: 0.30 mm) |
1 |
| 46 |
PAT40-04000003-6 |
663-45567-01-40 |
SHIM (t: 0.40 mm) |
1 |
| 46 |
PAT40-04000003-7 |
663-45567-01-50 |
SHIM (t: 0.50mm) |
1 |
| 47 |
PAT40-04000002 |
6H4-45536-00 |
BUSHING, NYLON |
1 |
| 48 |
PANSKB-1416 |
|

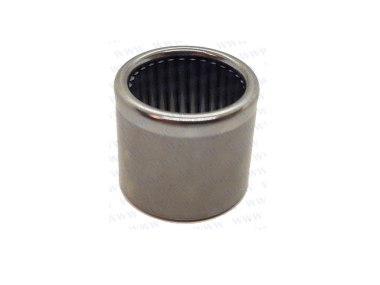

QUILL BEARING |
1 |
| 49 |
PAF15-05000035 |
61N-44146-00 |
COLUMN NUT |
1 |
| 50 |
PAGB/T6172.1-M6 |
|
NUT M6 |
1 |
| 51 |
PAF15-06 020004 |
93210-06ME6 |
O-RING 14x4.2 |
1 |
| 52 |
PAT40-04000007 |
66T-45321-00 |
COVER PLATE, CAMSHAFT |
1 |
| 53 |
PAJASOF40431-035 |
|
O-RING |
1 |
| 54 |
PAGB/T97.1-6 |
92990-06600-00 |
WASHER 6 |
1 |
| 55 |
PAF40-04020000 |
|
CAM ASSY, SHIFT ROD |
1 |
| 56 |
PAGB/T889.1-M5 |
|
LOCKING NUT M5 |
1 |
| 57 |
PAT40-04000023 |
63D-45215-00 |
WATER INLET B |
1 |
| 58 |
PAF4-03000023 |
6E0-45316-09 |
PLUG, OIL HOSE |
1 |
| 59 |
PAF4-03000024 |
90340-08002 |
GASKET |
2 |
| 60 |
PAF25-04000031 |
688-45341-00 |
PLUG, OIL RELEASE |
1 |
