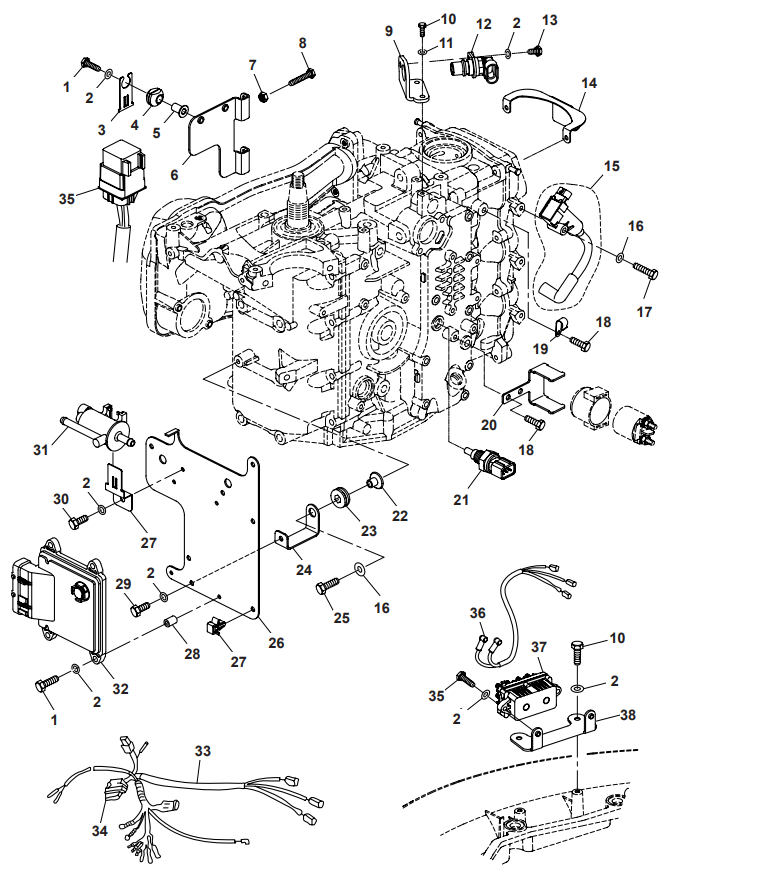

Electrical 3
| NR: |
Bestelnummer: |
OEM: |
Omschrijving: |
Aantal: |
| 1 |
PAGB/T5783-M6x25 |
10-82500925 |
BOLT M6x25 |
6 |
| 2 |
PAGB/T97.1-6 |
92990-06600-00 |
WASHER 6 |
13 |
| 3 |
PAF40-05091401EI |
|
BRACKET, MAIN RELAY(EFI) |
2 |
| 4 |
PAF40-05091402EI |
|
DAMPER, MAIN RELAY(EFI) |
2 |
| 5 |
PAT40-05000028 |
624-42542-00 |
TUBE, IGNITER |
2 |
| 6 |
PAF40-05000060BI |
|
FIXED PLATE, MAIN RELAY(EFI) |
1 |
| 7 |
PAGB/T6170-M6 |
|
NUT M6 |
2 |
| 8 |
PAGB/T5783-M6x35 |
10-88348935 |
BOLT M6x35 |
2 |
| 9 |
PAF40-05000063EI |
|
PLATE, SENSOR (EFI) |
1 |
| 10 |
PAGB/T5783-M5x16 |
|
BOLT M5x16 |
2 |
| 11 |
PAGB/T97.1-5 |
|
WASHER 5 |
2 |
| 12 |
PAF40-05091600EI |
|
SENSOR, CRANKSHAFT POSITION(EFI) |
1 |
| 13 |
PAGB/T5783-M6x10 |
|
BOLT M6x10 |
1 |
| 14 |
PAF40-05000059EI |
|
CLAMP C |
1 |
| 15 |
PAF40-05090200EI |
|
IGNITION COIL ASSY(EFI) |
3 |
| 16 |
PAF8-05000021 |
3R0-66308-0 |
WASHER |
3 |
| 17 |
PAGB/T5783-M6x40 |
|
BOLT M6x40 |
3 |
| 18 |
PAGB/T5783-M6x16 |
|
BOLT M6x16 |
5 |
| 19 |
PAF40-05000003 |
|
CLAMP |
1 |
| 20 |
PAF40-05000055EI |
|
BRACKET, RELAY(EFI) |
1 |
| 21 |
PAF40-05090700EI |
|
SENSOR, WATER TEMPERATURE(EFI) |
1 |
| 22 |
PAF15-07000021 |
90387-06M79 |
BUSHING, INTAKE SILENCER |
1 |
| 23 |
PAF8-05000007 |
3B7-06305-0 |
DAMPER |
3 |
| 24 |
PAF40-05000009-2EI |
|
BRACKET, FIXED PLATE |
1 |
| 25 |
PAGB/T5783-M6x20 |
97080-06020-00 |
BOLT M6x20 |
5 |
| 26 |
PAF40-05000009-1EI |
|
FIXED PLATE, ECU |
1 |
| 27 |
PAF40-05000065EI |
|
CLAMP D (EFI) |
4 |
| 28 |
PAF8-05000006 |
3A0-76079-0 |
BUSHING |
4 |
| 29 |
PAGB/T5783-M6x12 |
|
BOLT M6x12 |
2 |
| 30 |
PAF40-05000049EI |
|
FIXED PLATE, MAGNETIC VALVE(EFI) |
1 |
| 31 |
PAF40-05091500EI |
|
MAGNETIC VALVE, CARBON POT(EFI) |
1 |
| 32 |
PAF40-05090100EI |
|
ECU(EFI) |
1 |
| 33 |
PAF40-05001000EI |
|
C.D.I LINE ASSY (EFI) |
1 |
| 34 |
PAF40-05001000-1EI |
|
FUSE WIRE (40A) (EFI) |
1 |
| 34 |
PAF40-05001000-2EI |
|
FUSE WIRE (20A) (EFI) |
1 |
| 34 |
PAF40-05001000-3EI |
|
FUSB WIRE (ISA) (EFI) |
1 |
| 34 |
PAF40-05001000-4EI |
|
FUSE WIRE (7.5A) (EFI) |
1 |
| 35 |
PAF40-05091400EI |
|
MAIN RELAY (EFI) |
2 |
| 36 |
PAF40-05001200EI |
|
CONNECTION LINE,TILT (EFI) |
1 |
| 37 |
PAT85-05030200 |
|
RELAY ASSY |
1 |
| 38 |
PAF40-03000013EI |
|
FIXED BRACKET, TILT RELAY(EFI) |
1 |
