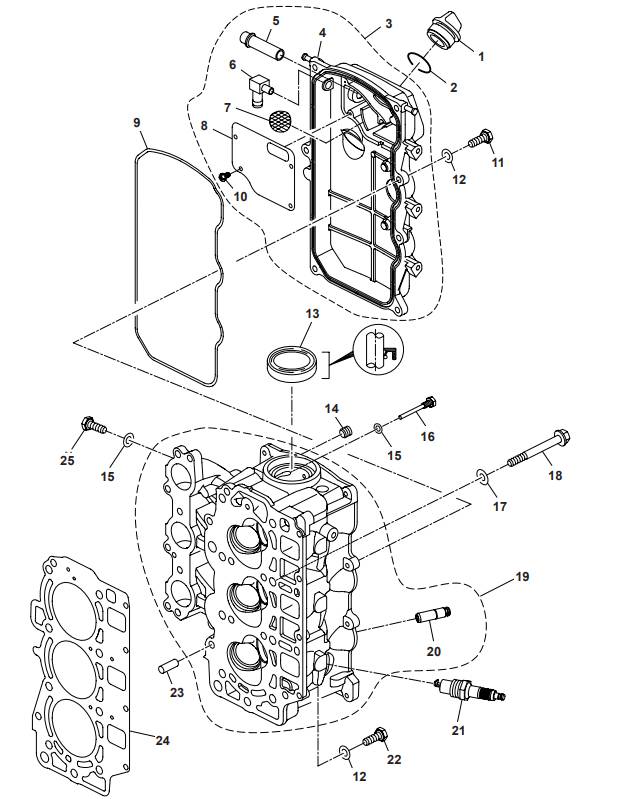

Cylinder Head
| NR: | Bestelnummer: | OEM: | Omschrijving: | Aantal: |
| 1 | PAF15-07050004 | 6G8-15363-00 | FILLER CAP, ENGINE OIL | 1 |
| 2 | PAJASOF404-35-025 | 90196 | O-RING | 1 |

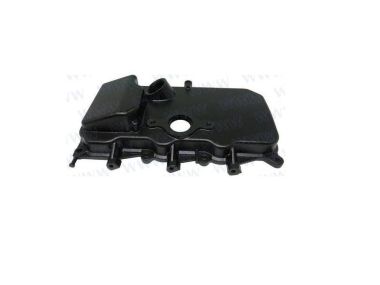

| 3 | PAF40-05070000 | 893693A04 | COVER ASSY, CYLINDER HEAD | 1 |
| 4 | PAF40-05070001 | COVER, CYLINDER HEAD | 1 | |
| 5 | PAF40-05070002 | 825054 | CONNECTOR, BREATHER | 1 |

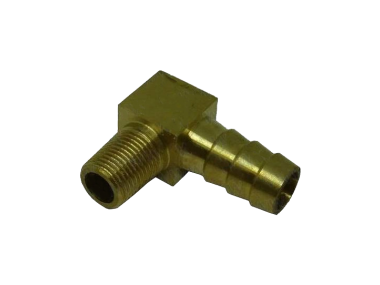

| 6 | PAF25-02010003 | 629101 | CONNECTOR B, GAS PIPE | 1 |

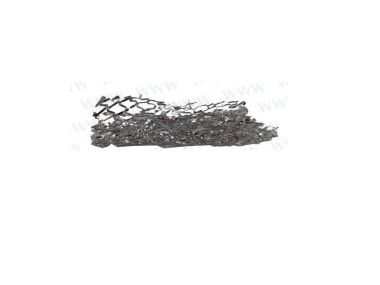

| 7 | PAF40-05070004 | SIEVE NET | 1 | |
| 8 | PAF40-05070003 | 855236 | PLATE, BREATHER | 1 |
| 9 | PAF40-05000002 | 3862567 | SEAL, CYLINDER HEAD | 1 |
| 10 | PAGB/T818-M4x1O | SCREW M4x10 | 4 | |
| 11 | PAGB/T5783-M6x20 | 97080-06020-00 | BOLT M6x20 | 7 |
| 12 | PAGB/T97.1-6 | 92990-06600-00 | WASHER 6 | 11 |
| 13 | PAF25-05050021 | 93102-37M40 | OIL SEAL, CAMSHAFT | 1 |
| 14 | PAF15-07010005 | PLUG 1/4" | 5 | |
| 15 | PAF25-05050007 | 90430-06014 | WASHER, LIMITING BOLT | 4 |
| 16 | PAF25-05050006 | 90109-06M65 | LIMITING BOLT, CAMSHAFT | 1 |
| 17 | PAF25-05000003 | WASHER 9 | 8 | |
| 18 | PAF25-05000002 | 90119-09M00 | BOLT M9x1.25 | 8 |

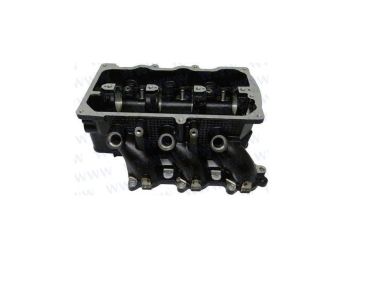

| 19 | PAF40-05040100EI | 877568T | CYLINDER HEAD ASSY (EFI) | |
| PAF40-05040100 | CYLINDER HEAD ASSY (BW/FW) | |||
| 20 | PAF15-07040104 | GUIDE,VALVE | 6 | |
| 21 | PAF20-05000037 | 94701-00375 | SPARK PLUG DPR7EA-9 | 3 |
| 22 | PAF8-05000022 | BOLT M6x25 | 4 | |
| 23 | PAF25-00000014 | 99530-08012 | DOWEL PIN 8x12 | 2 |
| 24 | PAF40-05030000 | 8M0118180 | GASKET ASSY, CYLINDER HEAD | 1 |
| 25 | PAGB/T5783-M6x10 | BOLT M6x10 | 3 |
-
Parsun / Mercury F40 Cylinder Head Assy (877568T, 893504T)Ab 539,93 € 453,72 €
