Bracket 1
| NR: | Bestelnummer: | OEM: | Omschrijving: | Aantal: |
| 1 | PAF25-01010312 | 65W-43630-00 | LOCKING HANDLE ASSY | 1 |
| 2 | PAF15-01010305-3 | JACKET, HANDLE | 1 | |
| 3 | PAF25-01010311 | BUSHING, LOCKING HANDLE | 1 | |
| 4 | PAF25-01010009 | 90202-12031 | WASHER, NYLON | 2 |
| 5 | PAF25-01010321 | 66T-43627-00 | DETENT PLATE, TILT | 2 |
| 6 | PAF25-01010008 | 90206-12M00 | WAVE WASHER | 2 |
| 7 | PAF25-01010007 | 90109-08M90 | SCREW, PROLATE HEXAGON | 2 |
| 8 | PAF25-01010318 | 90249-12M34 | PIN, DETENT PLATE | 2 |
| 9 | PAF25-01010319 | 90386-12M98 | NYLON BUSHING, PIN | 2 |
| 10 | PAGB/T879.2- 3x18 | PIN 3x18 | 1 | |
| 11 | PAT40-01010102 | 65W-43192-00 | LIMITING HANDLE, TILT | 1 |
| 12 | PAGB/T6182-M8 | LOCKING NUT M8 | 2 | |
| 13 | PAF25-01010010 | 90201-08M07 | THICK WASHER 8 | 2 |
| 14 | PAF25-01010200 | CLAMP BRACKET ASSY (RIGHT) | 1 | |
| 15 | PAF25-01010011 | 6G5-43145-00 | PLASTIC NUT | 2 |
| 16 | PAF15-01010007 | 63V-43145-00 | SELF-LOCKING NUT, BRACKET | 2 |
| 17 | PAF25-01010004 | 6J8-43113-01 | PLATE, TWO HOLE | 1 |
| 18 | PAF25-01010102 | 63-43118-01-4D | CLAMP HANDLE, STERN | 2 |
| 19 | PAF25-01010104 | 90149-14M12 | CLAMP SCREW, STERN | 2 |
| 20 | PAF25-01010103 | 90243-04007 | RIVET, CLAMP HANDLE | 2 |
| 21 | PAF4-01010003 | 620-43114-00 | CLAMP PAD | 2 |
| 22 | PAGB/T6170-M8 | 95380-08600 | NUT M8 | 1 |
| 23 | PAGB/T93-8 | WASHER, SPRING 8 | 1 | |
| 24 | PAGB/T97.1-8 | WASHER 8 | 1 | |
| 25 | PAT40-01010101 | 65W-43191-00 | LIMITING SHAFT, TILT | 1 |
| 26 | PAF25-01010003 | 90201-22M03 | WASHER | 2 |
| 27 | PAF25-01010002 | 90386-22M15 | BUSH, NYLON | 2 |
| 28 | PAF25-01010301S | BRACKET, ROTARY (S) | 1 | |
| 28 | PAF25-01010301L | ROTARY BRACKET (L) | 1 | |
| 29 | PAGB/T7940.1-M6 | 344-67177-0 | OIL CUP M6 | 3 |
| 30 | PAT36-04000023 | LINE CLAMP | 1 | |
| 31 | PAF25-01010302 | 65W-43373-00 | SEAL, BOLT | 1 |
| 32 | PAF25-01010303 | 90105-08M76 | FLANG BOLT M8x20 | 1 |
| 33 | PAF15-01010001 | 63D-43131-00 | BOLT, CLAMP BRACKET | 1 |
| 34 | PAF25-01010006 | 903-8710108-00 | TUBE, BOLT | 1 |
| 35 | PAF25-01010100 | CLAMP BRACKET ASSY (LEFT) | 1 | |
| 36 | PAF25-01010403 | CONICAL SPRING | 1 | |
| 37 | PAF25-01010400 | LIMITING ROD ASSY | 1 | |

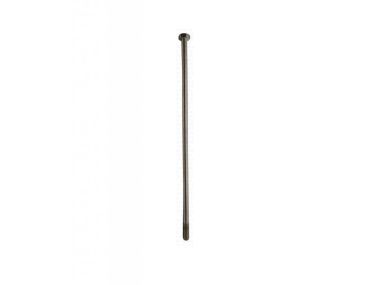

| 38 | PAF25-01010005 | 90101-08M76 | LONG BOLT M8x255 | 1 |
| 39 | PAF25-01010309 | 90387-07049 | BUSHING, LOCKING HANDLE | 1 |
| 40 | PAF25-01010315 | 65W-43616-00 | CONNECTING ROD, BRACKET | 1 |
| 41 | PAGB/T818-M5x6 | SCREW, PAN HBAD M5x6 | 1 | |
| 42 | PAF25-01010313 | 66T-43631-00 | LEVER, ANGLE ORIENTATION | 1 |
| 43 | PAF25-01010305 | 90249-07M32 | LONG SHAFT, LOCKING FRAME | 1 |
| 44 | PAGB/T91-Ø2x12 | COTTER PIN Ø2x12 | 4 | |
| 45 | PAGB/T896-9 | CIRCLIP 9 | 2 | |
| 46 | PAF25-01010304 | 90506-30M00 | TENSION SPRING, LOCKING FRAME | 2 |
| 47 | PAF25-01010307-3 | 90249-07M33 | SHORT SHAFT, OUTER BRACKET | 1 |
| 48 | PAF25-01010307-4 | 65W-43614-00 | OUTER BRACKET (B) | 1 |
| 49 | PAF25-01010307-1 | 65W-43613-00 | INNER BRACKET | 1 |
| 50 | PAF25-01010307-2 | 65W-43615-00 | OUTER BRACKET (A) | 1 |
| 51 | PAF25-01010306 | 90387-07M29 | TUBE, LONG SHAFT | 1 |
-
Yamaha / Parsun F40 Handle (65W-43192-00)Ab 4,87 € 4,09 €
-
Parsun F40 Limitative Position Shaft (65W-43191-00)Ab 17,65 € 14,83 €
-
Yamaha / Parsun Tube Bolt F20 & F25 (90387-08M29)Ab 30,00 € 30,00 €
-
Yamaha / Parsun Right Bracket Assy F20 / F25 (65W-43111-02-4D)Ab 147,52 € 123,97 €
-

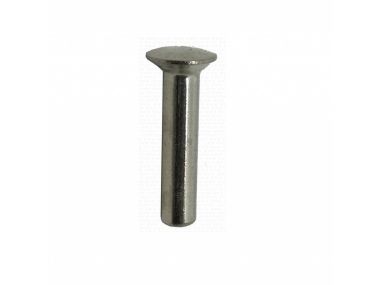

Yamaha / Parsun Rivet F20 & F25 (90243-04007)Ab 5,85 € 4,92 €
-
Yamaha / Parsun Oil Cup M6 (93700-06M03-00)Ab 9,79 € 8,22 €
