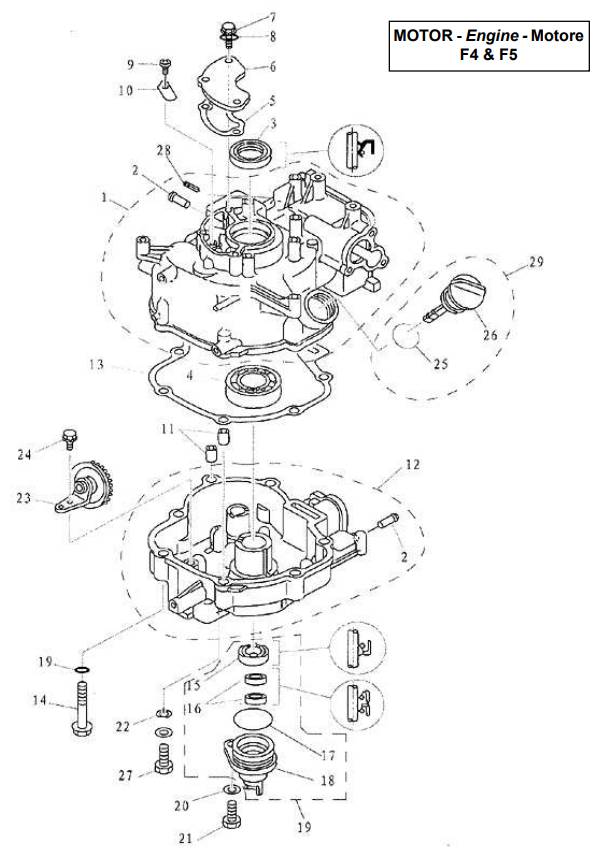

Cylinder & Crankcase 2
| Nummer: | Bestelnummer: | Yamaha OEM: | Omschrijving: |
| 1 | PAF4-04010100 | 68D-E1311-01-94 | CRANK CASE |
| 2 | PAF4-04010002 | 650-24378-00 | PIPE, JOINT |
| 3 | PAF4-04010004 | 93102-25821-00 | OIL SEAL |
| 4 | PAGB/T276-94 | 93306-004UO | BEARING |
| 5 | PAF4-04000009 | 68D-E1169-A0 | BREATHER GASKET |
| 6 | PAF4-04000010 | 68D-E1168-00 | COVER |
| 7 | PAGB/T5782-2000 | BOLT, HEXAGON | |
| 8 | PAGB/T97.1-85 | 66M-11327-00-94 | WASHER |
| 9 | PAGT/T818-85 | SCREW, PAN HEAD | |
| 10 | PAF4-04010003 | 68D-E5346-00 | VELVE, BREATHER FLAP |
| 11 | PAF4-04000003 | 99510-10114 | HOLLOW PIN |
| 12 | PAF4-04050001 | 67D-15111-01 | COVER, CRANK CASE |
| 13 | PAF4-04000002 | 67D-11351-A0-00 | CRANA CASE COMPLEX GASKET |
| 14 | PAGB/T5787-1986 | 97013-06050-00 | BOLT, HEXAGON |
| 15 | PAF4-04060003 | 93102-20814-00 | OIL SEAL |
| 16 | PAF4-04060004 | 93102-10004 | OIL SEAL |
| 17 | PAF4-04060002 | 93210-35537 | O-RING |
| 18 | PAF4-04060001 | 67D-15396-00-5B | SHELL, OIL SEAL |
| 19 | PAF4-04060000 | OIL SEAL, SHELL ASSY | |
| 20 | PAGB/T97.1-85 | 66M-11327-00-94 | WASHER, PLATE |
| 21 | PAGB/T5783-2000 | 68D-E5362-00 | BOLT, HEXAGON |
| 22 | PAF4-04000006 | 90201-08818 | WASHER |
| 23 | PAF4-04050100 | 68D-E3102-00 | GEAR UNIT ASSY |
| 24 | PAGB/T5783-2000 | 68D-E5362-00 | BOLT, HEXAGON |
| 25 | PAF4-04000008 | 93210-24800-00 | O-RING |
| 26 | PAF4-04000007 | 68D-E5362-00 | PLUG WITH DIPSTICK |
| 27 | PAF4-04000001 | 90105-08M76 | BOLT, DISCHARGING OIL |
-
