Bracket
| Nummer: | Bestelnummer: | Yamaha OEM: | Omschrijving |
| 1 | PAF4-02000008 | 6EE-G2539-00-00 | BUSH, SHOCK ABSORPTION |
| 2 | PAF4-02000007 | 6EE-G2537-00-00 | TOP, SHOCK ABSORPTION |
| 3 | PAF4-02020000 | 6E0-42528-03-00 | UPPER LOCKING RING ASSY |
| 4 | PAF4-01050002 | 90502-08M05 | SPRING, CONICAL |
| 5 | PAF4-01050000 | 68D-G3160-00 | TILT ROD ASSY |
| 6 | PAGB/T879-86 | PIN, SPRING | |
| 7 | PAF4-01050003 | NOG, PREVENTED UNLOCK | |
| 8 | PAGB/T889.1-2000 | 90185-08057-00 | NUT, METALLOID EMBEDED HEXAGON BOLT M8 |
| 9 | PAF4-01000002 | 6EE-G3113-00-00 | PLATE |
| 10 | PAF4-01020000 | 6EE-G3112-00-8D | BRACKET LEFT ASSY |
| 11 | PAF4-08000108 | 6EE-F4591-00-00 | MARK 8 |
| 12 | PAF4-01030001 | 6EE-G3311-00-8D | BRACKET, SWIVEL |
| 13 | PAGB/T6170-86 | 95380-06600-00 | HEXAGON NUT M6 |
| 14 | PAGB/T97.1-85 | 92990-06600-00 | WASHER 6 |
| 15 | PAF4-01000003 | WASHER, NYLON | |
| 16 | PAF4-01030103 | 6E0-43632-00-00 | SHEATH HANDLE |

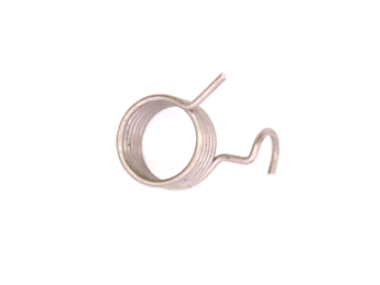

| 17 | PAF4-01030003 | 90508-16020 | SPRING, TORSION (LEFT) |
| 18 | PAF4-01030002 | 620-43189-00-00 | BUSHING, NYLON |
| 19 | PAGB/T5783-2000 | 95895-06020-00 | HEXAGON BOLT M6x20 |
| 20 | PAF4-01030005 | 6EE-G3313-01-8D | FIXED COVER, BRACKER |
| 21 | PAF4-01030101 | BRACKET, TILT LOCK | |
| 22 | PAF4-01030004 | 6EE-G8561-00-00 | SPRING, TORSION (RIGHT) |
| 23 | PAF4-01030102 | ORIENTATION HANDLE | |
| 24 | PAF4-01000006 | 6EE-G3188-00-00 | SPRING |
| 25 | PAF4-01000007 | 6EE-G3198-00-00 | SPRING |
| 26 | PAGB/T5783-2000 | 90109-06M84-00 | HEXAGON BOLT M6x12 |
| 27 | PAF4-01070000 | 6EE-G3614-00-00 | TILT LOCKED CLASP ASSY |
| 28 | PAF4-02000009 | 6EE-G2538-00-00 | BOTTOM ABSORBTION ASSY |
| 29 | PAF4-01000004 | 6EE-G3122-00-00 | BUSHER, BOLT |
| 30 | PAF4-01010005 | 90243-04M01-00 | RIVET, CLAMP HANDLE |
| 31 | PAF4-01010004 | 6EE-G3118-00-00 | CLAMP SHIPBOARD HANDLE |
| 32 | PAF4-01010002 | 6E0-43116-01-00 | CLAMP BOLT |
| 33 | PAF4-01010003 | 648-43114-01-00 | CLAMP PLATE |
| 34 | PAGB/T5782-2000 | 90101-06335-00 | HEXAGON BOLT M6x120 |
| 35 | PAGB/T5782-2000 | 90101-08M07-00 | HEXAGON BOLT M8x135 |
| 36 | PAF4-01010001 | BRACKET, CLAMP (RIGHT) | |
| 37 | PAF4-01010000 | 6E0-43111-01-4D | BRACKET RIGHT ASSY |
| 38 | PAF4-01000005 | 6EE-G3312-00-8D | COVER, SWIVEL BRACKET |
| 39 | PAGB/T5782-86 | 95895-06035-00 | HEXAGON BOLT M6x35 |
| 40 | PAF4-01060002 | 6EE-G2561-00-00 | CLAMP HANDLE |
| 41 | PAGB/T875-86 | 90266-04M05-00 | RIVET |
| 42 | PAF4-01060001 | 6L5-42529-01-00 | LOCKED SCREW |
| 43 | PAF4-01060000 | LOCKED HANDLE ASSY | |
| 44 | PAGB/T96-1985 | BIG WASHER |
-
