Lower Casing & Drive 1

Yamaha Parsun Outer Cover, Exhaust.jpg

Nummer:	Bestelnummer:	OEM:	Omschrijving:

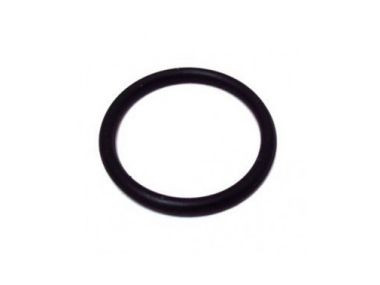

1	PAGB/T3452.1-92	93210-26130	O-RING
2	PAF25-04000017	61N-44362-10	TUBE, WATER
2	PAF25-04000017S	61N-44362-00	TUBE, WATER SMALL

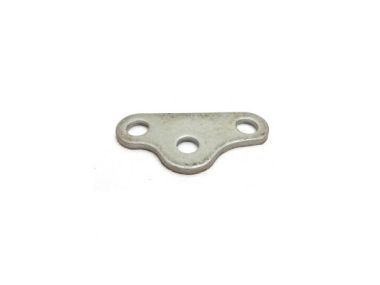

3	PAF25-04000016	65W-44328-00	FIXED PLATE, WATER PUMP
4	PAGB/T5782-2000		BOLT
5	PAGB/T97.1-85	66M-11327-00-94	WASHER

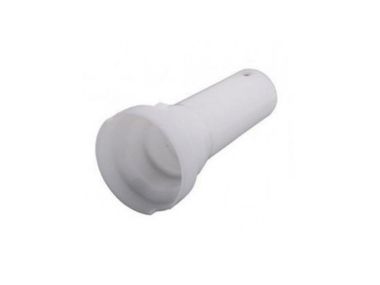

6	PAF25-04050004	6L2-44367-00	DAMPER, WATER PIPE
7	PAF25-04050001	61N-44311-00	SHELL, WATER PUMP

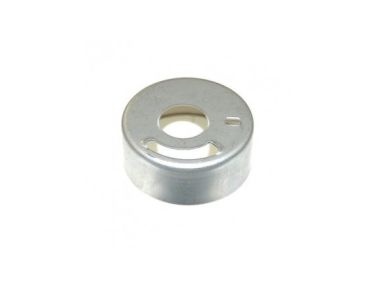

8	PAF25-04050002	61N-44322-00	SHELL, INNER
9	PAF25-04050003	93210-45161	O-RING
10	PAF25-04050000	61N-44311-01	SHELL ASSY, WATER PUMP
11	PAF25-04040000	6H4-44352-00	IMPELLER ASSY
12	PAF25-04000014	61N-44323-00	OUTER PLATE
13	PAGB/T5783-2000	68D-E5362-00	BOLT
14	PAGB/T97.1-85	66M-11327-00-94	WASHER
15	PAF25-04000012	65W-44176-00	PLATE, O-RING
16	PAF15-06020004	93210-06ME6	O-RING
17	PAF25-04000013	61N-45127-00	WATER SEAL
18	PAF25-04000007	93604-08062, 93604-10M03	PIN, DOWEL
19	PAF25-04000008	65W-45331-00-5B	BASE, DRIVE SHAFT
20	PAF25-04000009	61N-45315-00	SEAL
21	PAF25-04010003	93101-22067	OIL SEAL, DRIVE SHAFT
22	PAF25-04010000	61N-45510-10	DRIVE SHAFT ASSY
22	PAF25-04010000S	61N-45510-00	DRIVE SHAFT ASSY SMALL
23	PAF25-04000015	90280-03024, 90280-03M07	SEMICIRCULAR KEY
24	PAHI-CAP 32004JR KOYO		HOUSING, BEARING
25	PAF25-04000003-1		SHIM(t:0.7mm)
25	PAF25-04000003-2	61N-45587-00-10	SHIM(t:1.0mm)
25	PAF25-04000003-3	61N-45587-00-11	SHIM(t:1.1mm)
25	PAF25-04000003-4	61N-45587-00-12	SHIM(t:1.2mm)
25	PAF25-04000003-5	61N-45587-00-13	SHIM(t:1.3mm)
25	PAF25-04000003-6	61N-45587-00-14	SHIM(t:1.4mm)
25	PAF25-04000003-7	61N-45587-00-15	SHIM(t:1.5mm)
25	PAF25-04000003-8		SHIM(t:1.6mm)
26	PAF25-04000002	61N-45536-00	BUSHING, NYLON
27	PAF25-04030000		CAM ASSY, SHIFT ROD
27	PAF25-04030000S	65W-44150-00	CAM ASSY, SHIFT ROD SMALL
28	PAF4-03000023	6E0-45316-09	PLUG, HOLE OIL
29	PAF4-03000024	90340-08002	GASKET
30	PAGB/T889.1-2000		NUT, LOCKING
31	PAF25-04000023	6L2-45215-00	WATER INLET “B”
32	PAF25-04000031	688-45341-00, 688-45341-10	PLUG, DRAIN
33	PAF25-04000001	61N-45311-00-4D	LOWER CASING
34	PAGB/T5782-2000		BOLT
35	PAGB/T861.1-87	92990-06300	WASHER, LOCKING
36	PAF15-06000004	61N-45251-00	ANODE, LOWER
37	PAGB/T5783-2000	68D-E5362-00	BOLT
38	PAF25-04000021	61N-45214-00	TAB, COURSE
39	PAGB/T820-2000		SCREW, PAN HEAD
40	PAF25-04000022	6L2-45214-00	WATER INLET “A”
41	PAF25-04000006	90179-10M14	NUT, PINION
42	PAF25-04000005	61N-45551-00	PINION
43	PAF25-04000004-1		SHIM (t:1.0mm)
43	PAF25-04000004-2		SHIM (t:1.1mm)
43	PAF25-04000004-3	6L2-45567-00-12	SHIM (t:1.2mm)
43	PAF25-04000004-4		SHIM (t:1.3mm)
43	PAF25-04000004-5	6L2-45567-00-14	SHIM (t:1.4mm)
44	REC93332-00005	93332-00005	TAPER ROLLER BEARING
45	PAF25-04020000	61N-45560-00, 61N-455601000	GEAR, FORWARD
46	PAF25-04060003	664-45631-02, 6FM-45631-00	CLUTCH, DOG
47	PAF15-06070004	90250-05010	PIN, CLUTCH
48	PAF15-06070005	648-45633-00, 648-45633-11	RING, CLUTCH
49	PAF25-04060006	648-45635-00	PLUNGER, SHIFT
50	PAF25-04060002	90501-10065	SPRING, CLUTCH
51	PAF25-04060001	612-45611-00, 6L2-45611-00	SHAFT, PROPELLER
52	PAF25-04060007	90201-20417	PLATE, REVERSE GEAR
53	PAF25-04060000	648-45633-00, 648-45633-11	PROPELLER, SHAFT ASSY
54	PAF25-04070004	61N-45571-00	GEAR, REVERSE
55	PAF25-04070005-1	6L2-45577-00	SHIM (t:1.0mm)
55	PAF25-04070005-2		SHIM (t:1.1mm)
55	PAF25-04070005-3	6L2-45577-00-12	SHIM (t:1.2mm)
55	PAF25-04070005-4		SHIM (t:1.3mm)
56	PAF25-04070002	93210-64ME7	O-RING A
57	PAKOYO 6006C3		BALL BEARING
58	PAF25-04070001	61N-45361-00-4D	COVER, LOWER CASING
59	PANTN HK2016 HU		ROLLER GEARING
60	PAF25-04070006	93101-20M07	OIL SEAL
61	PAF25-04070003	93210-65M50	O-RING B
62	PAGB/T5783-2000	68D-E5362-00	BOLT
63	PAF25-04070000		COVER ASSY, LOWER CASING
64	PAF2020	93315-220V7	NEEDLE BEARING
65	PAF25-0400000L	65W-45300-01-4D	COMPLETE GEAR HOUSIN LARGE
65	PAF25-0400000S	65W-45300-00-4D	COMPLETE GEAR HOUSIN SMALL
