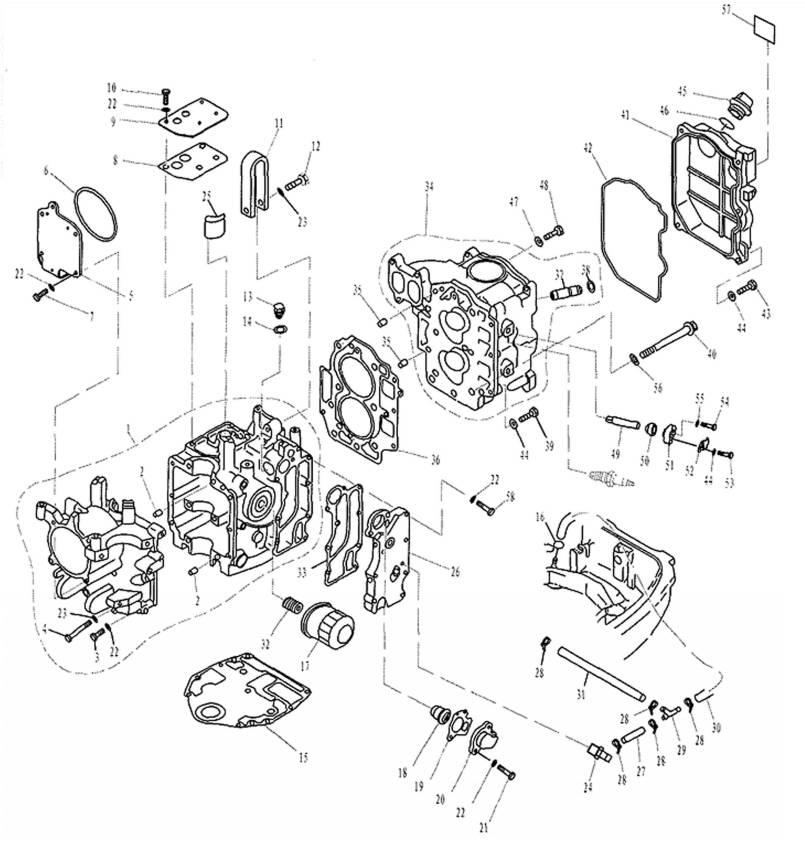

Cylinder & Crankcase
| Nummer: | Bestelnummer: | OEM: | Omschrijving: |
| 1 | PAF25-05010000 | 65W-15100-00-94 | CRANKCASE ASSY |
| 2 | PAF25-00000014 | 93608-12063 | PIN, DOWEL |
| 3 | PAGB/T5782-2000 | BOLT, HEXAGON | |
| 4 | PAGB/T5782-2000 | BOLT, HEXAGON | |
| 5 | PAF25-05000007 | 65W-15121-00 | CRANKCASE |
| 6 | PAGB/T3452.1-1992 | 65W-15663-00 | SEAL |
| 7 | PAGB/T5783-2000 | 68D-E5362-00 | BOLT, HEXAGON |
| 8 | PAF25-05010108 | 65W-11169-00 | GASKET ,BREATHER COVER |
| 9 | PAF25-05010109 | 65W-11168-00 | COVER,BREATHER |
| 10 | PAGB/T5783-2000 | 68D-E5362-00 | BOLT, HEXAGON |
| 11 | PAF25-05010106 | 65W-11119-00 | HANGER,ENGINE |
| 12 | PAGB/T5782-2000 | BOLT, HEXAGON | |
| 13 | PAF15-04000002 | 90340-14M00 | BOLT,OIL DRAIN |
| 14 | PAF15-04000003 | 90430-14115 | WASHER |
| 15 | PAF25-00000013 | 65W-11351-00 | GASKET,ENGINE |
| 16 | PAF4-04000030 | 90467-09M09 | SPRING,FUEL PIPE’’B’’ |
| 17 | PAF25-05000100 | 5GH-13440-00 | OIL CLEANER |
| 18 | PAF4-04000036 | 68D-E1168-00 | THERMOSTAT |
| 19 | PAF15-07010022 | 62Y-12414-00 | GASKET, THERMOSTAT |
| 20 | PAF15-07010021 | 6H3-12413-00-00 | COVER, THERMOSTAT |
| 21 | PAGB/T5783-2000 | 68D-E5362-00 | BOLT |
| 22 | PAGB/T97.1-85 | 66M-11327-00-94 | WASHER 6 |
| 23 | PAGB/T97.1-85 | 66M-11327-00-94 | WASHER 8 |
| 24 | PAF25-05010113 | 62Y-11372-01 | NIPPLE,HOSE |
| 25 | PAF25-05010107 | 65W-13286-00 | CLEANER |
| 26 | PAF25-05010112 | 65W-41113-00-94 | OUTER COVER, EXHAUST |
| 27 | PAF25-03000008 | 90445-09068, 90445-092K100 | HOSE |
| 28 | PAHT-2.5x60 | 61A-14455-00-00 | CLAMP |
| 29 | PAF15-05000011 | 688-24378-00 | THREE-WAY PIPE |
| 30 | PAF25-03000011 | 90445-09105, 90445-092K1 | HOSE |
| 31 | PAF25-03000009 | 90445-09010, 90445-09095 | HOSE |
| 32 | PAF15-07010003 | 90401-20M00 | BOLT, UNION |
| 33 | PAF25-05010111 | 65W-41114-00 | GASKET, EXHAUST OUTER COVER |
| 34 | PAF25-05050100 | 65W-11111-02-94 | CYLINDER ASSY |
| 35 | PAF25-00000014 | 93608-12063 | PIN,DOWEL |
| 36 | PAF25-05040000 | 65W-11181-10 | GASKET , CYLINDER HEAD |
| 37 | PAF25-05050104 | VALVE GUIDE BUSH | |
| 38 | PAF15-07040105 | CIRCLIP, GUIDE BUSH | |
| 39 | PAGB/T5783-2000 | 68D-E5362-00 | BOLT, HEXAGON |
| 40 | PAF25-05000002 | 90119-09M00 | BOLT,FLANGE |
| 41 | PAF25-05000005 | 65W-11191-00-1S, 65W-11191-00-94 | COVER,CYLINDER HEAD |
| 42 | PAF25-05000004 | 65W-11356-00 | SEAL,CYLINDER COVER |
| 43 | PAGB/T5783-2000 | 68D-E5362-00 | BOLT, HEXAGON |
| 44 | PAGB/T97.1-85 | 66M-11327-00-94 | WASHER,PLATE |
| 45 | PAF15-07050004 | 69M-E5363-00 | PLUG,OIL |
| 46 | PAJASO F404 31-025 | 93210-24800-00 | O-RING |
| 47 | PAF25-05050007 | 90430-06014 | GASKET |
| 48 | PAF25-05050006 | 90109-06M65 | BOLT |
| 49 | PAF25-02010005 | 62Y-11325-00 | ANODE |
| 50 | PAF15-07010009 | 66M-11328-00 | GROMMET,ANODE |
| 51 | PAF15-07010011 | 66M-11327-00-94 | COVER, ANODE |
| 52 | PAF15-07010012 | 66M-12535-00 | PLATE,ANODE |
| 53 | PAGB/T5783-2000 | 68D-E5362-00 | BOLT, HEXAGON |
| 54 | PAGB/T5783-2000 | 68D-E5362-00 | BOLT, HEXAGON |
| 55 | PAGB/T97.1-85 | 66M-11327-00-94 | WASHER,PLATE |
| 56 | PAF25-05000003 | WASHER,PLATE | |
| 57 | PAF25-08000005 | SIGN 5 | |
| 58 | PAGB/T5783-2000 | 68D-E5362-00 | BOLT |
-
