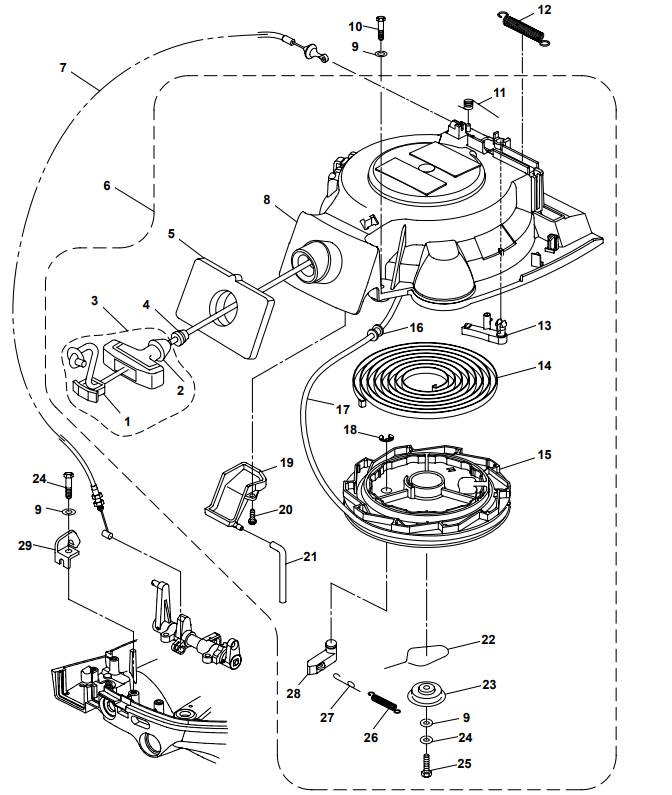

Starter Assembly
| Nummer: | Bestelnummer: | OEM: | Omschrijving: |
| 1 | PAF4-04130102 | 6G1-15779-00 | COVER, STARTER HANDLE |
| 2 | PAF25-05160501 | 689-15755-01 | STARTER HANDLE |
| 3 | PAF25-05160500 | STARTER HANDLE ASSY | |
| 4 | PAF25-05160021 | 697-15789-0000 | DAMPER, STARTER HANDLE |
| 5 | PAF20-05070003 | 6AH-15762-01-00 | SEAL |
| 6 | PAF20-05070000 | STARTER ASSY | |
| 7 | PAF20-05070200 | TIGHTWIRE, DETENT | |
| 8 | PAF20-05070101 | 6AH-15711-01-00 | CASING, STARTER |
| 9 | PAGB/T97.1-6 | 92990-06600-00 | WASHER 6 |
| 10 | PAGB/T5783-M6x25 | 10-82500925 | BOLT M6x25 |
| 11 | PAF15-07130106 | 66T-15734-00 | SPRING, DETENT |
| 12 | PAF15-05000029 | 66T-15731-00-00 | SPRING, DETENT TIGHTWIRE |
| 13 | PAF15-07130105 | 66T-15794-00 | DETENT |
| 14 | PAF15-07130107 | 63V-15713-00 | SPRING, VOLUTE |
| 15 | PAF15-07130201 | WHELL, START-UP | |
| 16 | PAF4-04130013 | 63V-15764-00 | MEATUS, START ROPE |
| 17 | PAF15-07130205 | 90890-44373-00 | ROPE, STARTER Ø5.5x1.8 m |
| 18 | PABG/T896-8 | CIRCLIP 8 | |
| 19 | PAF20-05070001 | 6AH-15782-00-00 | COVER |
| 20 | PAGB/T845-ST4.2x16 | 6AH-15793-00-00 | SCREW ST4.2x16 |
| 21 | PAF20-05070002 | PIPE Ø5xØ10x200 | |
| 22 | PAF15-07130002 | 63V-15705-01 | CLIP, PLATE |
| 23 | PAF20-05070004 | 68T-15716-00-00 | PLATE, DRIVE |
| 24 | PAGB/T93-6 | SPRING, WASHER 6 | |
| 25 | PAGB/T5783-M6x16 | 68T-15793-00-00 | BOLT M6x16 |
| 26 | PAF15-07130203 | 63V-15767-01 | SPRING |
| 27 | PAF15-07130204 | 63V-15784-01 | LINK ROD |
| 28 | PAF15-07130202 | 63V-15741-00 | PAWL, DRIVE |
| 29 | PAF20-05000030 | FIXATION PLATE |
-
