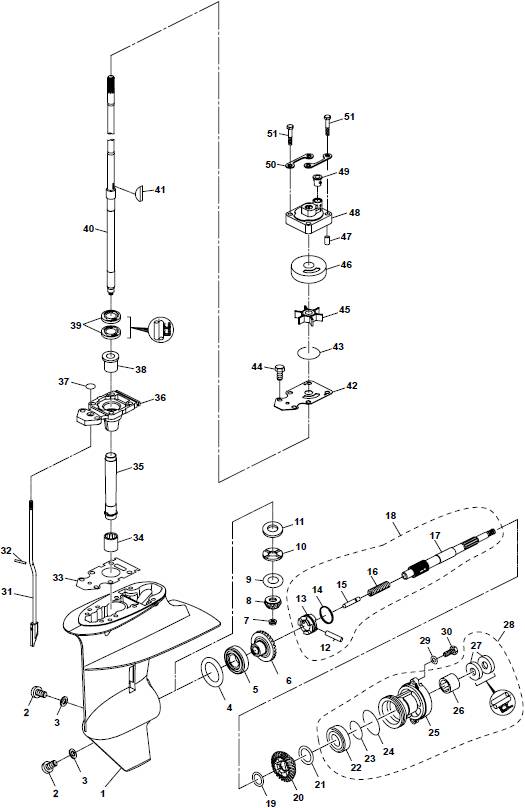

Lower Casing & Drive 1

Nummer:	Bestelnummer:	Origineel onderdeelnummer:	Omschrijving:	Aantal stuks:
1	PAF15-06000001	63V-45311-01-8D	LOWER CASING	1
2	PAF4-03000023	90340-08002	OIL PLUG	2
3	PAF4-03000024	90430-08003	GASKET	2
4	PAF15-06000010-1	664-45567-01	SHIM (t: 0.10 mm)	1
	PAF15-06000010-2	664-45567-10	SHIM (t: 0.12 mm)	1
	PAF15-06000010-3	664-45567-20	SHIM (t: 0.15 mm)	1
	PAF15-06000010-4	664-45567-30	SHIM (t: 0.18 mm)	1
	PAF15-06000010-5	664-45567-40	SHIM (t: 0.30 mm)	1
	PAF15-06000010-6	664-45567-50	SHIM (t: 0.40 mm)	1
	PAF15-06000010-7	664-45567-60	SHIM (t: 0.50 mm)	1
5	PAHR30205J	93332-00005	GEAR BEARING	1
6	PAF15-06010000	6E7-45560-01	FORWARD GEAR	1
7	PAF15-06000012	90179-08M06	PINION NUT	1
8	PAF15-06000011	63V-45551-00	PINION	1
9	PAF15-06000008	6E8-45587-10	PINION SHIM (t: 1.13 mm)	1
	PAF15-06000009	6E8-45587-30	PINION SHIM (t: 1.20 mm)	1
10	PATE15-04000018	90209-14011	PINION WASHER	1
11	PAF15-06000020-1	90201-15017	BEARING WASHER	1
12	PAF15-06070004	90250-05010	CLUTCH PIN	1
13	PAF15-06070003	682-45631-00	DOG CLUTCH	1
14	PAF15-06070005	648-45633-11	CLUTCH RING	1
15	PAF15-06070006	650-45635-00	SHIFT PLUNGER	1
16	PAF15-06070002	90501-14M09	COMPRESSION SPRING	1
17	PAF15-06070001	683-45611-00	PROPELLER SHAFT	1
18	PAF15-06070000	-	PROPELLER SHAFT ASSY	1
19	PAF15-06070007	90201-17682	REVERSE GEAR WASHER	1
20	PAF15-06080005	6E7-45571-00	REVERSE GEAR	1
21	PAF15-06080006-1	626-45577-00	SHIM (t: 0.10 mm)	1
	PAF15-06080006-2	626-45577-10	SHIM (t: 0.20 mm)	1
	PAF15-06080006-3	626-45577-20	SHIM (t: 0.30 mm)	1
	PAF15-06080006-4	626-45577-30	SHIM (t: 0.40 mm)	1
	PAF15-06080006-5	626-45577-40	SHIM (t: 0.50 mm)	1
22	PAGB/T276-6005/P63	93306-00519	BEARING 6005	1
23	PAF15-06080002	93210-57M09	COVER O-RING A	1
24	PAF15-06080003	93210-56M80	COVER O-RING B	1
25	PAF15-06080001	683-45361-02-8D	LOWER CASING COVER	1
26	PAGB/T290HK1712	93315-317U2	BEARING HK1712	1
27	PAF15-06080004	93101-17054	OIL SEAL	2
28	PAF15-06080000	-	LOWER COVER ASSY	1
29	PAGB/T97.1-6	92990-06600	WASHER 6	2
30	PAGB/T5783-M6x20	97080-06020	BOLT M6x20	2
31	PAF20-04020000L	6AH-44150-10	CAM SHIFT ROD ASSY (L)	1
	PAF20-04020000S	6AH-44150-00	CAM SHIFT ROD ASSY (S)	1
32	PAGB/T879.1-2.5x14	-	PIN 2.5x14	1
33	PAF20-04000001	69G-45315-A0	GASKET BASE	1
34	PANSKF1420	93315-314V8	NEEDLE BEARING	1
35	PAF15-06000006	63V-45536-00	NYLON BUSHING	1
36	PAF20-04010001	69G-45331-01-CA	DRIVE SHAFT BASE	1
37	PAF15-06020004	93210-06ME6	O-RING	1
38	PAF15-06020002	626-45316-09	DRIVE SHAFT BUSHING	1
39	PAF15-06020003	93101-20001	DRIVE SHAFT OIL SEAL	2
40	PAF20-04030000L	6AH-45510-10	DRIVE SHAFT ASSY (L)	1
	PAF20-04030000S	6AH-45510-00	DRIVE SHAFT ASSY (S)	1
41	PAF15-06000013	664-44338-00	IMPELLER KEY	1
42	PAF20-04000002	68T-44323-00	OUTER PLATE	1
43	PAJASOF404-31-045	93210-49046	O-RING	1
44	PAGB/T5783-M8x25	98980-08025	BOLT M8x25	2
45	PAF15-06050000	63V-44352-01	IMPELLER ASSEMBLY	1
46	PAF15-06060002	63V-44322-00	INSERT CARTRIDGE	1
47	PAF15-00000013	93604-10M03	DOWEL PIN Ø4x12	2
48	PAF20-04040001	6AH-44311-00	WATER PUMP HOUSING	1
49	PAF25-04050004	6L2-44367-00	WATER PIPE SEAL	1
50	PAF15-06000014	63V-44328-01	WATER PUMP FIXED PLATE	2
51	PAGB/T5783-M8x45	97080-08045	BOLT M8x45	4
