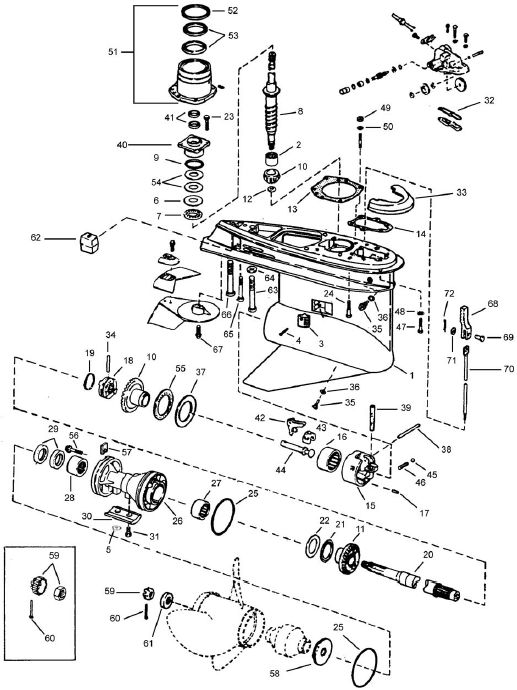

Unteres Getriebegehäuse

Nummer:	Bestelnummer:	OMC OEM:	Omschrijving:
	REC981797	981797	GEARCASE SEAL KIT
	REC982946	982946	GEARCASE SEAL KIT
	REC982947	982947	GEARCASE SEAL KIT
1	GLM28600	438050	GEARCASE ASSY.
2	REC387817	387817	PINION BEARING
2	REC384195	384195	PINION BEARING 4 CIL.
3	REC337778	337778	SCREEN
4	REC337061	337061	SCREW
5	GLM21679	N/D	WASHER
6	REC327656	327656	THRUST WASHER
7	REC387656	387656	TRHUST BEARING
8	GLM22413	982424	DRIVE SHAFT
9	REC314728	314728	O-RING
10	REC5004938	5004938	P/FORWARD GEAR SET 3.8-V6
10	REC320635	500494	P/FORWARD GEAR SET 5.0, 5.8-V8
10	REC436746	986976	P/FORWARD GEAR SET 2.5, 3.0
11	REC5004218	910994	REVERSE GEAR
11	REC345992	345992	REVERSE GEAR GM 4 CIL.
12	REC11-35921	314730	NUT
13	REC910236	910236	GASKET
13	REC338484	910338	GASKET GM 4 CIL.
14	REC324670	352165	GASKET
15	REC389455	389455	HOUSING & BEARING ASSY.
15	REC391365	391365	HOUSING & BEARING ASSY. 4 CIL.
16	REC389039	389039	BEARING
16	REC382407	382407	BEARING 4 CIL.
17	REC331880	331880	PIN
18	REC337774	337774	CLUTCH DOG
18	REC323664	323664	CLUTCH DOG
19	REC324369	324369	SPRING
20	REC395209	395209	PROP SHAFT 800 MOD.
20	REC436888	436888	PROP SHAFT 1976-86
21	REC382408	382408	THRUST BEARING
22	REC314731	314731	THRUST WASER
23	REC317624	317624	SCREW
24	REC331999	331999	SCREW 3/8x1 3/4-16
25	REC305123	305123	O-RING
25	REC313446	313446	O-RING 4 CIL.
26	REC5000074	5000074	BEARING CARRIER
27	REC382407	382407	BEARING
28	REC387247	387247	BEARING
28	REC379504	379504	BEARING 4 CIL.
29	REC26-76868	320862	OIL SEAL
29	REC330137	330137	OIL SEAL 4 CIL.
30	CM431708	431708	ANODE
31	REC908158	908158	SCREW
32	REC909604	909604	GASKET
33	CM983494	983494	ANODE
34	REC313448	313448	CROSS PIN
35	REC22-67892A05	318544	DRAINIG SCREW
36	REC3855081	311598	GASKET
37	REC327669	327669	THRUST WASHER
37	REC324766	324766	THRUST WASHER 4 CIL.
38	REC328825	328825	PIN
38	REC313448	320145	PIN 4 CIL.
39	REC910310	910310	PIN
40	REC982422	982422	BEARING & HOUSING SEAL
41	REC321467	321467	OIL SEAL
42	REC322938	322938	LEVER
42	GLM27741	324037	LEVER 4 CIL.
43	REC334163	982422	CRADLE
44	REC322941	322941	SHAFT
45	REC160084	160084	DETENT BALL
46	REC911962	982439	SPRING
47	REC912127	912127	SCREW
48	GLM21761	328701	LOCK WASHER
49	REC11-8267089	121731	NUT
50	REC12-29245	305981	O-RING
51	GLM27780	982439	SWIVEL BRG RETAINER
52	REC310649	310649	OIL SEAL
53	REC313353	313353	OIL SEAL
54	REC314745	314745	SHIM .005
54	REC323361	323361	SHIM .005
54	REC323362	323362	SHIM .005
55	REC389042	389042	THRUST BEARING
55	REC385043	385043	THRUST BEARING 4 CIL.
56	REC350271	350271	SCREW
57	REC333957	333957	TAB
58	REC126870	126870	THRUST WASHER (800)
58	REC127084	127084	THRUST WASHER 4 CIL.
59	REC314503	314503	NUT 4 CIL.
59	REC398042	398042	NUT (800)
60	REC314502	314502	PIN 4 CIL.
60	REC3852056	306394	PIN (800)
61	REC320570	320570	SPACER (800)
61	REC315810	315810	SPACER (400)
62	CM393023	436745	ANODE
63	REC331998	331998	SCREW 7/16x3 1/2-14
64	REC330265	330265	LOCK WASHER
65	REC328096	328096	SCREW
66	REC330263	330263	SCREW 3/8x3 1/2-16
67	REC313715	313715	SCREW
68	GLM27870	910311	RACK
69	GLM27880	910539	PIN
70	GLM27890	910309	SHIFT ROD
71	REC328702	306358	WASHER
72	REC306376	306376	COTTER PIN

Zur Wunschliste hinzufügen

OMC / Johnson / Evinrude / MerCruiser Propeller Spacer 40 - 90 HP (315810)

22,57 € 18,97 €
Zur Wunschliste hinzufügen

Volvo Penta / OMC Nut & Keeper (3850984, 398042, 5008966)

19,62 € 16,49 €
Zur Wunschliste hinzufügen

OMC Gearcase Seal Kit 400 - 800 (981797)

109,12 € 91,69 €
Zur Wunschliste hinzufügen

OMC / Johnson / Evinrude Shim (0.003) 60 HP, 90 HP (323362)

17,65 € 14,83 €
Zur Wunschliste hinzufügen

OMC Oil Seal 400 - 800 (313353)

24,54 € 20,62 €
Zur Wunschliste hinzufügen

OMC Oil Seal 400 - 800 (310649)

35,36 € 29,71 €
Zur Wunschliste hinzufügen

OMC / Johnson / Evinrude Oil Seal 40 - 90 HP / 400 - 800 /Cobra (0330137)

22,57 € 18,97 €
Zur Wunschliste hinzufügen

Johnson / Evinrude / OMC / MerCruiser Thrust Bearing 40-90 HP (382408)

16,67 € 14,01 €
Zur Wunschliste hinzufügen

OMC / Johnson / Evinrude Thrust Washer 60 HP, 90 HP (327656)

28,47 € 23,93 €
Zur Wunschliste hinzufügen

OMC / Johnson / Evinrude Gasket 60 HP, 90 HP (324670, 352165)

19,62 € 16,49 €
Zur Wunschliste hinzufügen

OMC / Johnson / Evinrude Oil Seal 40 - 75 HP (0321467)

23,55 € 19,79 €
Zur Wunschliste hinzufügen

Johnson / Evinrude / OMC / Volvo O-Ring (313446, 3852308, 967344)

12,74 € 10,70 €
Zur Wunschliste hinzufügen

Mercury / Mariner / Mercruiser / OMC / Johnson Evinrude Unterlegscheibe 15-225 PS (12-29245, 12-89302, 305981)

Ab 4,87 € 4,09 €
Zur Wunschliste hinzufügen

OMC / Johnson / Evinrude / Volvo Plug Gasket (3855081, 0311598, 0333572)

Ab 4,87 € 4,09 €
Zur Wunschliste hinzufügen

Mercruiser / OMC / Volvo / General Motors Schraube (10-65746, 16-11995, 3853503, 912127)

Ab 4,87 € 4,09 €
Zur Wunschliste hinzufügen

OMC / Johnson Evinrude / Mercruiser Splint 40-90 PS (314502)

Ab 4,87 € 4,09 €
Zur Wunschliste hinzufügen

OMC / Johnson Evinrude O-Ring V4/V6 (305123)

Ab 8,80 € 7,40 €
Zur Wunschliste hinzufügen

OMC / Johnson Evinrude Schraube 40-90 PS (10-865321, 313715)

Ab 9,79 € 8,22 €
Zur Wunschliste hinzufügen

Mercury / Mariner / Mercruiser / OMC / Johnson Evinrude / Honda Lager 30-250 PS (30-30956, 30-30956T, 31-30956T, 387247, 91053-ZW1-003)

Ab 23,55 € 19,79 €
Zur Wunschliste hinzufügen

Mercury / Mariner / OMC / Johnson Evinrude / Mercruiser Sicherungsmutter 35-225 PS (11-13438, 11-8267089, 121731)

Ab 4,87 € 4,09 €
Zur Wunschliste hinzufügen

Mercury / Mariner / Mercruiser / OMC / Johnson Evinrude Pinion Nuss 30-300 PS (11-35921, 314730)

Ab 6,84 € 5,74 €
Zur Wunschliste hinzufügen

OMC / Johnson Evinrude Kardanwelle Welle Propeller 90 PS (436888)

726,79 € 610,74 €
Zur Wunschliste hinzufügen

Mercury / Mariner / Mercruiser / OMC / Johnson / Evinrude Drive Shaft Roller Bearing 65-300 HP (31-42647A1, 387817)

72,73 € 61,12 €
Zur Wunschliste hinzufügen

OMC Dichtung 400-800 (910236)

10,77 € 9,05 €
