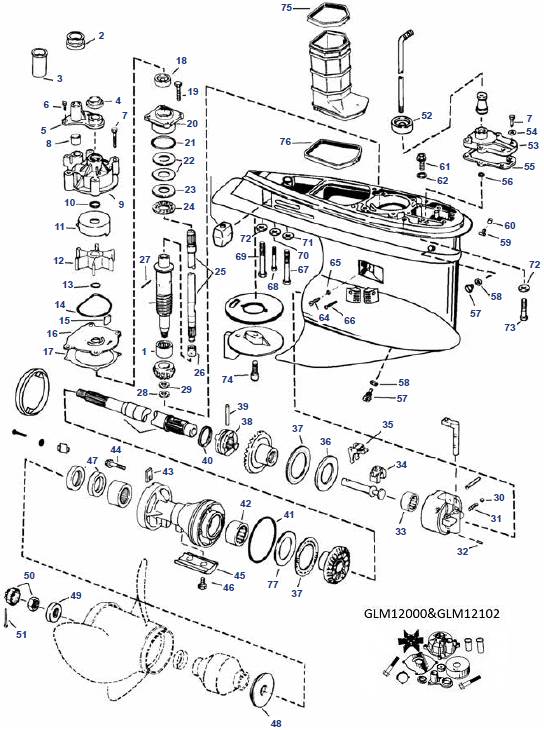

V4 & V6 (02-06)
| Nummer: | Bestelnummer: | Johnson Evinrude OEM: | Omschrijving: |
| REC5001595 | 5001595 | SERVICE KIT | |
| REC5001594 | 5001594 | SERVICE KIT | |
| 1 | REC387817 | 387817 | PINION BEARING |
| 2 | REC354580 | 338601 | GROMMET |
| 3 | REC338636 | 338636 | TUBE SPACER |
| 4 | REC320943 | 320943 | GROMMET |
| 5 | REC338893 | 338893 | TUBE GUIDE |
| 6 | REC306643 | 306643 | SCREW |
| 7 | REC302325 | 302325 | SCREW |
| 8 | REC314008 | 314008 | GROMMET |
| 9 | REC435990 | 435959 | PUMP HOUSING |
| 10 | REC331188 | 331188 | O-RING |
| 11 | REC338486 | 338486 | PUMP CUP |
| 12 | REC5001593 | 5001593 | IMPELLER |
| 13 | REC302035 | 302035 | O-RING |
| 14 | REC331353 | 331353 | SEAL |
| 15 | REC331107 | 331107 | KEY |
| 16 | REC338485 | 338485 | WEAR PLATE |
| 17 | REC338484 | 338484 | GASKET |
| 18 | REC341280 | 341280 | OIL SEAL |
| 19 | REC317624 | 317624 | SCREW |
| 20 | REC439476 | 439476 | BEARING HOUSING & SEAL |
| 21 | REC314728 | 314728 | O-RING |
| 22 | REC323362 | 323362 | SHIM .003 |
| 22 | REC323361 | 323361 | SHIM .004 |
| 22 | REC314745 | 314745 | SHIM .005 |
| 23 | REC327656 | 327656 | THRUST WASHER |
| 24 | REC387656 | 387656 | THRUST BEARING |
| 25 | REC5000614 | 5000614 | DRIVE SHAFT 20'' L |
| 25 | REC5007672 | 5000623 | DRIVE SHAFT 25'' L |
| 25 | REC5000624 | 5000624 | DRIVE SHAFT 25'' L |
| 26 | REC338504 | 338504 | RETAINER |
| 27 | REC311538 | 311538 | PIN |
| 28 | REC11-35921 | 314730 | NUT |

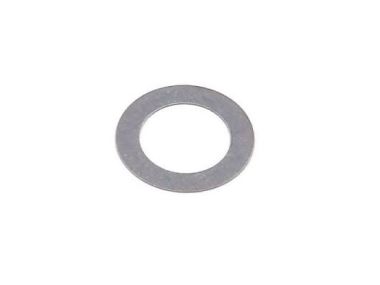

| 29 | REC350038 | 350038 | WASHER |
| 30 | REC160084 | 160084 | DETENT BALL |
| 31 | REC911962 | 911962 | SPRING |
| 32 | REC331880 | 331880 | PIN |
| 33 | REC389039 | 389039 | BEARING |
| 34 | REC334163 | 334163 | CRADLE |
| 35 | REC322938 | 322938 | LEVER |
| 36 | REC327669 | 327669 | THRUST WASHER |
| 37 | REC389042 | 389042 | THRUST BEARING |
| 38 | REC337774 | 337774 | CLUTCH DOG |
| 39 | REC313448 | 313448 | CROSS PIN |
| 40 | REC324369 | 324369 | SPRING |
| 41 | REC326849 | 326849 | O-RING |
| 42 | REC382407 | 382407 | BEARING |
| 43 | REC333957 | 333957 | TAB |
| 44 | REC350271 | 350271 | SCREW |
| 45 | CM431708 | 431708 | ANODE |
| 46 | REC908158 | 908158 | SCREW |
| 47 | REC341281 | 341281 | OIL SEAL - 1 PC. |
| 47 | REC334950 | 334950 | OIL SEAL - 2 PCS. |
| 48 | REC126870 | 126870 | THRUST WASHER |
| 49 | REC320570 | 320570 | SPACER |
| 50 | REC398042 | 398042 | NUT & KEEPER |
| 51 | REC3852056 | 306394 | COTTER PIN |
| 52 | REC321008 | 321008 | GROMMET |
| 53 | REC5006241 | 5006241 | COVER & SEAL ASSEMBLY |
| 54 | REC328702 | 328702 | WASHER |
| 55 | REC324670 | 352165 | GASKET |
| 56 | REC318372 | 318372 | O-RING |
| 57 | REC22-67892A05 | 318544 | DRAINING SCREW |
| 58 | REC3855081 | 311598 | GASKET |
| 59 | 336535 | NIPPLE | |
| 60 | REC305749 | 305749 | CAP |
| 61 | REC341220 | 341220 | SCREW |
| 62 | REC437330 | 437330 | SEAL WASHER |
| 63 | CM393023 | 436745 | ANODE |
| 64 | REC324852 | 324852 | SCREW |
| 65 | REC332584 | 332584 | SEAL |
| 66 | REC337061 | 337061 | SCREW |
| 67 | REC331998 | 331998 | SCREW |
| 68 | REC341219 | 341219 | SCREW |
| 69 | REC330263 | 330263 | SCREW |
| 70 | REC307161 | 307161 | LOCKWASHER |
| 71 | REC330265 | 330265 | WASHER |
| 72 | 330266 | LOCKWASHER | |
| 73 | REC331999 | 331999 | SCREW |
| 74 | REC313715 | 313715 | SCREW |
| 75 | REC320936 | 320936 | SEAL |
| 76 | 320961 | SEAL | |
| 77 | REC349193 | 349193 | THRUST WASHER |
| 78 | REC356900 | 347371 | LOWER DRIVE SHAFT |
| 79 | REC5004765 | 5004765 | PROP SHAFT |
-
