V4 90 PS (78-98)
| Nummer: | Bestelnummer: | Johnson Evinrude OEM: | Omschrijving: |
| REC5001595 | 5001595 | WATER PUMP SERVICE KIT | |
| REC5001594 | 5001594 | WATER PUMP SERVICE KIT | |
| REC986979 | 436746,345992,323664 | COMPLETE GEAR SET | |
| 1 | REC431642 | 431642 | GEARCASE ASSEMBLY |
| 2 | REC338893 | 338893 | TUBE GUIDE |
| 3 | REC306643 | 306643 | SCREW |
| 4 | REC314008 | 314008 | GROMMET |
| 5 | REC302325 | 302325 | SCREW |
| 6 | REC435990 | 435990 | PUMP HOUSING (20'' TRANSOM) |
| 6 | REC5007968 | 435959 | PUMP HOUSING (25'' TRANSOM) |
| 7 | REC331188 | 331188 | O-RING |
| 8 | REC435027 | 435027 | CUP & PLATE ASSEMBLY |
| 9 | REC5001593 | 5001593 | IMPELLER |
| 10 | REC302035 | 302035 | O-RING |
| 11 | REC331353 | 331353 | SEAL |
| 12 | REC331107 | 331107 | KEY |
| 13 | REC338484 | 338484 | GASKET |
| 14 | REC341280 | 341280 | OIL SEAL |
| 15 | REC317624 | 317624 | SCREW |
| 16 | REC439476 | 439476 | BEARING HOUSING & SEAL |
| 17 | REC314728 | 314728 | O-RING |
| 18 | REC323362 | 323362 | SHIM. 003 |
| 18 | REC323361 | 323361 | SHIM. 004 |
| 18 | REC314745 | 314745 | SHIM. 005 |
| 19 | REC327656 | 327656 | THRUST WASHER |
| 20 | REC387656 | 387656 | THRUST BEARING |
| 21 | REC5000618 | 5000618 | DRIVE SHAFT (L) |
| 21 | REC5000614 | 5000614 | DRIVE SHAFT (L) |
| 22 | REC311538 | 311538 | PIN |
| 23 | REC338504 | 338504 | RETAINER |
| 24 | REC346006 | 346006 | LOWER DRIVE SHAFT |
| 25 | REC384195 | 384195 | PINION BEARING |
| 26 | REC436746 | 436746 | P/ FORWARD GEAR SET |

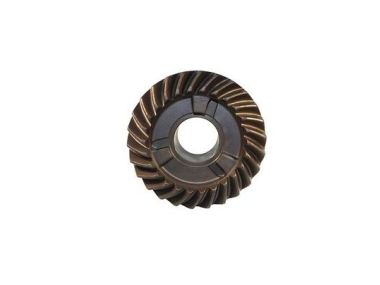

| 27 | REC345992 | 345992 | REVERSE GEAR |
| 28 | REC11-35921 | 314730 | NUT |
| 29 | REC915954 | 915954 | DETENT |
| 30 | REC331880 | 331880 | PIN |
| 31 | REC322941 | 322941 | SHAFT |
| 32 | REC324766 | 324766 | THRUST WASHER |
| 33 | REC385043 | 385043 | THRUST BEARING |
| 34 | REC313448 | 313448 | CROSS PIN |
| 35 | REC323664 | 323664 | CLUTCH DOG |
| 36 | REC324369 | 324369 | SPRING |
| 37 | REC436888 | 436888 | PROP SHAFT |
| 38 | REC382408 | 382408 | THRUST BEARING |
| 39 | REC314731 | 314731 | THRUST WASHER |
| 40 | REC967344 | 313446 | O-RING |
| 41 | REC382407 | 382407 | BEARING |
| 42 | REC379504 | 379504 | BEARING |
| 43 | REC330137 | 330137 | OIL SEAL |
| 44 | REC127084 | 127084 | THRUST WASHER |
| 45 | REC315810 | 315810 | SPACER |
| 46 | REC314503 | 314503 | NUT |
| 47 | REC314502 | 314502 | COTTER PIN |
| 48 | CM431708 | 431708 | ANODE ZINC |
| 48 | CM431708A | 431708 | ALUMIUM ANODE |
| 49 | REC908158 | 908158 | SCREW |
| 50 | REC316563 | 316563 | SCREW & SEAL |
| 51 | REC332583 | 332583 | SEAL |
| 52 | REC321008 | 321008 | GROMMET |
| 53 | REC302325 | 302325 | SCREW |
| 54 | REC324670 | 324670 | GASKET |
| 55 | REC318372 | 318372 | O-RING |
| 56 | REC331999 | 331999 | SCREW |
| 57 | REC22-67892A05 | 318544 | DRAINING SCREW |
| 58 | REC3855081 | 311598 | GASKET |
| 59 | REC331998 | 331998 | SCREW |
| 60 | REC330265 | 330265 | WASHER |
| 61 | REC328096 | 328096 | SCREW |
| 62 | CM393023 | 436745 | ANODE |
| 63 | REC313715 | 313715 | SCREW |
| 64 | REC334163 | 334163 | CRADLE |
| 65 | GLM27741 | 324037 | LEVER |
| 66 | REC5006241 | 5006241 | COVER & SEAL ASSEMBLY |
| 67 | REC328702 | 328702 | WASHER |
| 68 | REC313445 | 313445 | RETAINING RING |
| 69 | REC327345 | 327345 | DETENT BALL |
| 70 | REC911961 | 911961 | SPRING |
| 71 | REC320145 | 320145 | PIN |
| 72 | REC391365 | 391365 | HOUSING & BEARING ASSEMBLY |
| 73 | REC320936 | 320936 | SEAL |
| 74 | REC320961 | 320961 | SEAL |
| 75 | REC320943 | 320943 | GROMMET |
| 76 | REC397087 | 397087 | BEARING CARRIER |
| 78 | REC350271 | 350271 | SCREW |
| 79 | REC333957 | 333957 | TAB |
-
Johnson Evinrude Lager Carrier 90 PS (397087)427,81 € 359,50 €
Johnson Evinrude – Staartstuk Onderdelen – V4 90 (1978-1998) finden Sie auf Allesmarine.nl. Wir haben den größten Vorrat und am nächsten Tag ist alles in Ihrem Haus.
| Nummer: | Bestellnummer: | Johnson Evinrude OEM: | Beschreibung: |
| REC5001595 | 5001595 | WATER PUMP SERVICE KIT | |
| REC5001594 | 5001594 | WATER PUMP SERVICE KIT | |
| REC986979 | 436746,345992,323664 | COMPLETE GEAR SET | |
| 1 | REC431642 | 431642 | GEARCASE ASSEMBLY |
| 2 | REC338893 | 338893 | TUBE GUIDE |
| 3 | REC306643 | 306643 | SCREW |
| 4 | REC314008 | 314008 | GROMMET |
| 5 | REC302325 | 302325 | SCREW |
| 6 | REC435990 | 435990 | PUMP HOUSING (20'' TRANSOM) |
| 6 | REC5007968 | 435959 | PUMP HOUSING (25'' TRANSOM) |
| 7 | REC331188 | 331188 | O-RING |
| 8 | REC435027 | 435027 | CUP & PLATE ASSEMBLY |
| 9 | REC5001593 | 5001593 | IMPELLER |
| 10 | REC302035 | 302035 | O-RING |
| 11 | REC331353 | 331353 | SEAL |
| 12 | REC331107 | 331107 | KEY |
| 13 | REC338484 | 338484 | GASKET |
| 14 | REC341280 | 341280 | OIL SEAL |
| 15 | REC317624 | 317624 | SCREW |
| 16 | REC439476 | 439476 | BEARING HOUSING & SEAL |
| 17 | REC314728 | 314728 | O-RING |
| 18 | REC323362 | 323362 | SHIM. 003 |
| 18 | REC323361 | 323361 | SHIM. 004 |
| 18 | REC314745 | 314745 | SHIM. 005 |
| 19 | REC327656 | 327656 | THRUST WASHER |
| 20 | REC387656 | 387656 | THRUST BEARING |
| 21 | REC5000618 | 5000618 | DRIVE SHAFT (L) |
| 21 | REC5000614 | 5000614 | DRIVE SHAFT (L) |
| 22 | REC311538 | 311538 | PIN |
| 23 | REC338504 | 338504 | RETAINER |
| 24 | REC346006 | 346006 | LOWER DRIVE SHAFT |
| 25 | REC384195 | 384195 | PINION BEARING |
| 26 | REC436746 | 436746 | P/ FORWARD GEAR SET |
| 27 | REC345992 | 345992 | REVERSE GEAR |
| 28 | REC11-35921 | 314730 | NUT |
| 29 | REC915954 | 915954 | DETENT |
| 30 | REC331880 | 331880 | PIN |
| 31 | REC322941 | 322941 | SHAFT |
| 32 | REC324766 | 324766 | THRUST WASHER |
| 33 | REC385043 | 385043 | THRUST BEARING |
| 34 | REC313448 | 313448 | CROSS PIN |
| 35 | REC323664 | 323664 | CLUTCH DOG |
| 36 | REC324369 | 324369 | SPRING |
| 37 | REC436888 | 436888 | PROP SHAFT |
| 38 | REC382408 | 382408 | THRUST BEARING |
| 39 | REC314731 | 314731 | THRUST WASHER |
| 40 | REC967344 | 313446 | O-RING |
| 41 | REC382407 | 382407 | BEARING |
| 42 | REC379504 | 379504 | BEARING |
| 43 | REC330137 | 330137 | OIL SEAL |
| 44 | REC127084 | 127084 | THRUST WASHER |
| 45 | REC315810 | 315810 | SPACER |
| 46 | REC314503 | 314503 | NUT |
| 47 | REC314502 | 314502 | COTTER PIN |
| 48 | CM431708 | 431708 | ANODE ZINC |
| 48 | CM431708A | 431708 | ALUMIUM ANODE |
| 49 | REC908158 | 908158 | SCREW |
| 50 | REC316563 | 316563 | SCREW & SEAL |
| 51 | REC332583 | 332583 | SEAL |
| 52 | REC321008 | 321008 | GROMMET |
| 53 | REC302325 | 302325 | SCREW |
| 54 | REC324670 | 324670 | GASKET |
| 55 | REC318372 | 318372 | O-RING |
| 56 | REC331999 | 331999 | SCREW |
| 57 | REC22-67892A05 | 318544 | DRAINING SCREW |
| 58 | REC3855081 | 311598 | GASKET |
| 59 | REC331998 | 331998 | SCREW |
| 60 | REC330265 | 330265 | WASHER |
| 61 | REC328096 | 328096 | SCREW |
| 62 | CM393023 | 436745 | ANODE |
| 63 | REC313715 | 313715 | SCREW |
| 64 | REC334163 | 334163 | CRADLE |
| 65 | GLM27741 | 324037 | LEVER |
| 66 | REC5006241 | 5006241 | COVER & SEAL ASSEMBLY |
| 67 | REC328702 | 328702 | WASHER |
| 68 | REC313445 | 313445 | RETAINING RING |
| 69 | REC327345 | 327345 | DETENT BALL |
| 70 | REC911961 | 911961 | SPRING |
| 71 | REC320145 | 320145 | PIN |
| 72 | REC391365 | 391365 | HOUSING & BEARING ASSEMBLY |
| 73 | REC320936 | 320936 | SEAL |
| 74 | REC320961 | 320961 | SEAL |
| 75 | REC320943 | 320943 | GROMMET |
| 76 | REC397087 | 397087 | BEARING CARRIER |
| 78 | REC350271 | 350271 | SCREW |
| 79 | REC333957 | 333957 | TAB |
