V4 60 PS (95-06)
| Nummer: | Bestelnummer: | Johnson Evinrude OEM: | Omschrijving: |
| REC5001595 | 5001595 | SERVICE KIT | |
| REC5001594 | 5001594 | SERVICE KIT | |
| REC986979 | 986979 | PINION KIT | |
| 1 | 5004767 | GEARCASE ASSEMBLY | |
| 2 | REC320943 | 320943 | GROMMET |
| 3 | REC306643 | 306643 | SCREW |
| 4 | REC338893 | 338893 | TUBE GUIDE |
| 5 | REC354580 | 338601 | GROMMET |
| 6 | REC338636 | 338636 | TUBE SPACER (SHORT) |
| 7 | REC314008 | 314008 | GROMMET |
| 8 | REC435990 | 435990 | PUMP HOUSING (20 TRANSOM) |
| 8 | REC5007968 | 435959 | PUMP HOUSING (25 TRANSOM) |
| 9 | REC331188 | 331188 | O-RING |
| 10 | REC435027 | 435027 | CUP & PLATE ASSEMBLY |
| 11 | REC5001593 | 435821 | IMPELLER |
| 12 | REC302035 | 302035 | O-RING |

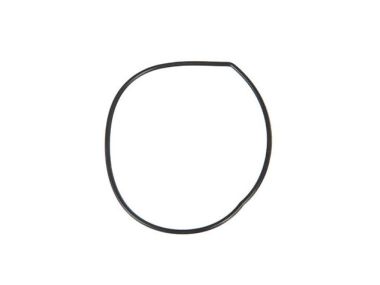

| 13 | REC331353 | 331353 | SEAL |
| 14 | REC338484 | 338484 | GASKET |
| 15 | REC331107 | 331107 | KEY |

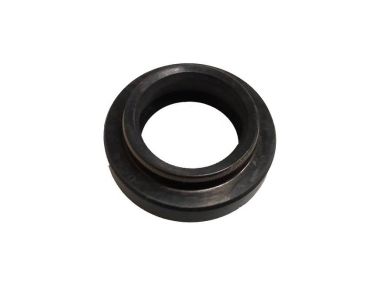

| 16 | REC341280 | 341280 | OIL SEAL |
| 17 | REC439476 | 439476 | BEARING HOUSING & SEAL |
| 18 | REC317624 | 317624 | SCREW |
| 19 | REC314728 | 314728 | O-RING |
| 20 | REC323362 | 323362 | SHIM .003 |
| 20 | REC323361 | 323361 | SHIM .004 |
| 20 | REC314745 | 314745 | SHIM .005 |
| 21 | REC327656 | 327656 | THRUST WASHER |
| 22 | REC387656 | 387656 | THRUST BEARING |

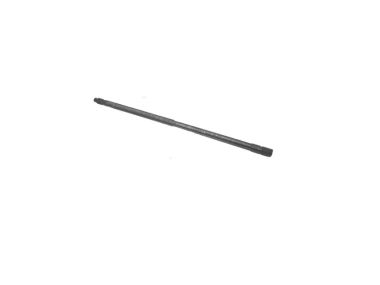

| 23 | REC5000615 | 5000615 | DRIVE SHAFT |
| 24 | REC311538 | 311538 | PIN |
| 25 | REC338504 | 338504 | RETAINER |
| 27 | REC384195 | 384195 | PINION BEARING |
| 28 | REC11-35921 | 314730 | NUT |
| 29 | 436746 | P / FORWARD GEAR SET | |
| 30 | REC345992 | 345992 | REVERSE GEAR |

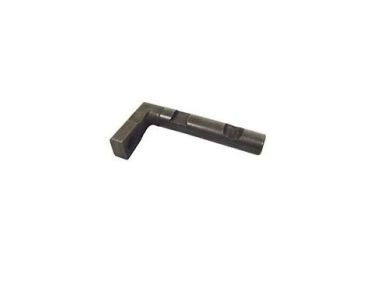

| 31 | REC915954 | 915954 | DETENT |
| 32 | 391365 | HOUSING & BEARING ASSEMBLY | |
| 33 | REC320145 | 320145 | PIN |
| 34 | REC327345 | 327345 | DETENT BALL |
| 35 | REC911961 | 911961 | SPRING |
| 36 | REC331880 | 331880 | PIN |
| 37 | REC334163 | 334163 | CRADLE |
| 38 | 324037 | LEVER | |
| 39 | REC322941 | 322941 | SHAFT |
| 40 | REC324766 | 324766 | THRUST WASHER |
| 41 | REC385043 | 385043 | THRUST BEARING |
| 42 | REC313448 | 313448 | PIN |
| 43 | REC323664 | 323664 | CLUTCH DOG |
| 44 | REC324369 | 324369 | SPRING |
| 45 | 436834 | PROP SHAFT | |
| 46 | REC382408 | 382408 | THRUST BEARING |
| 47 | REC314731 | 314731 | THRUST WASHER |
| 48 | REC967344 | 313446 | O-RING |
| 49 | REC382407 | 382407 | BEARING |
| 50 | REC379504 | 379504 | BEARING |
| 51 | 5000440 | BEARING CARRIER | |
| 52 | CM431708 | 431708 | ANODE |
| 53 | REC908158 | 908158 | SCREW |
| 54 | REC333957 | 333957 | TAB |
| 55 | REC350271 | 350271 | SCREW |

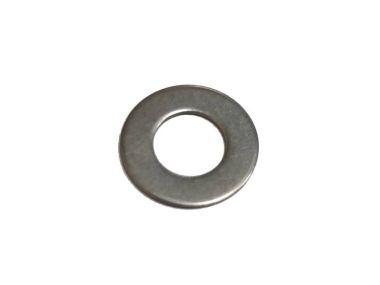

| 56 | REC328743 | 328743 | WASHER |
| 57 | REC127084 | 127084 | THRUST WASHER (3-BLADE) |
| 58 | REC315810 | 315810 | SPACER |
| 59 | REC314503 | 314503 | PROP NUT |
| 60 | REC314502 | 314502 | COTTER PIN |
| 61 | REC5006241 | 5006241 | COVER & SEAL ASSEMBLY |
| 62 | REC324670 | 324670 | GASKET |
| 63 | REC302325 | 302325 | SCREW |
| 64 | REC328702 | 328702 | WASHER |

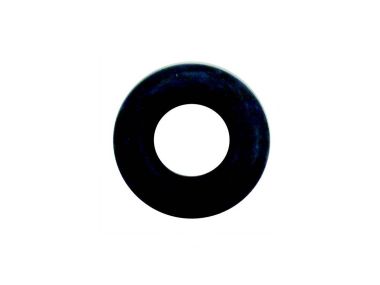

| 65 | REC318372 | 318372 | O-RING |
| 66 | REC321008 | 321008 | GROMMET |
| 67 | REC22-67892A05 | 318544 | DRAINING SCREW |
| 68 | REC3855081 | 311598 | GASKET |
| 69 | REC341220 | 341220 | SCREW |
| 70 | REC437330 | 437330 | SEAL WASHER |
| 71 | 336535 | NIPPLE | |
| 72 | REC305749 | 305749 | CAP |
| 73 | REC331999 | 331999 | SCREW |
| 74 | REC341219 | 341219 | SCREW |
| 75 | REC307161 | 307161 | LOCKWASHER |
| 76 | REC331998 | 331998 | SCREW |
| 77 | REC330265 | 330265 | WASHER |
| 78 | CM393023 | 436745 | ANODE |
| 79 | REC313763 | 313715 | SCREW |
| 80 | REC320936 | 320936 | SEAL |
| 81 | REC320961 | 320961 | SEAL |
| 82 | REC330137 | 330137 | OIL SEAL |
| 83 | REC302325 | 302325 | SCREW |
| 84 | REC337061 | 337061 | SCREW |
| 85 | REC337778 | 337778 | SCREEN |
-

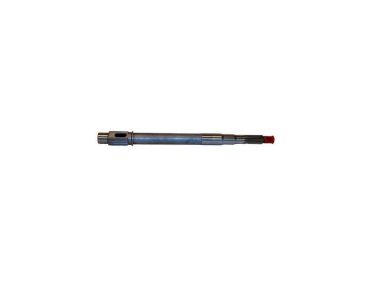

Johnson / Evinrude Propellerwelle 60 PS (436834)614,67 € 516,53 €
Johnson Evinrude – Staartstuk Onderdelen – V4 60 (1995-2006) finden Sie auf Allesmarine.nl. Wir haben den größten Vorrat und am nächsten Tag ist alles in Ihrem Haus.
| Nummer: | Bestellnummer: | Johnson Evinrude OEM: | Beschreibung: |
| REC5001595 | 5001595 | SERVICE KIT | |
| REC5001594 | 5001594 | SERVICE KIT | |
| REC986979 | 986979 | PINION KIT | |
| 1 | 5004767 | GEARCASE ASSEMBLY | |
| 2 | REC320943 | 320943 | GROMMET |
| 3 | REC306643 | 306643 | SCREW |
| 4 | REC338893 | 338893 | TUBE GUIDE |
| 5 | REC354580 | 338601 | GROMMET |
| 6 | REC338636 | 338636 | TUBE SPACER (SHORT) |
| 7 | REC314008 | 314008 | GROMMET |
| 8 | REC435990 | 435990 | PUMP HOUSING (20 TRANSOM) |
| 8 | REC5007968 | 435959 | PUMP HOUSING (25 TRANSOM) |
| 9 | REC331188 | 331188 | O-RING |
| 10 | REC435027 | 435027 | CUP & PLATE ASSEMBLY |
| 11 | REC5001593 | 435821 | IMPELLER |
| 12 | REC302035 | 302035 | O-RING |
| 13 | REC331353 | 331353 | SEAL |
| 14 | REC338484 | 338484 | GASKET |
| 15 | REC331107 | 331107 | KEY |
| 16 | REC341280 | 341280 | OIL SEAL |
| 17 | REC439476 | 439476 | BEARING HOUSING & SEAL |
| 18 | REC317624 | 317624 | SCREW |
| 19 | REC314728 | 314728 | O-RING |
| 20 | REC323362 | 323362 | SHIM .003 |
| 20 | REC323361 | 323361 | SHIM .004 |
| 20 | REC314745 | 314745 | SHIM .005 |
| 21 | REC327656 | 327656 | THRUST WASHER |
| 22 | REC387656 | 387656 | THRUST BEARING |
| 23 | REC5000615 | 5000615 | DRIVE SHAFT |
| 24 | REC311538 | 311538 | PIN |
| 25 | REC338504 | 338504 | RETAINER |
| 27 | REC384195 | 384195 | PINION BEARING |
| 28 | REC11-35921 | 314730 | NUT |
| 29 | 436746 | P / FORWARD GEAR SET | |
| 30 | REC345992 | 345992 | REVERSE GEAR |
| 31 | REC915954 | 915954 | DETENT |
| 32 | 391365 | HOUSING & BEARING ASSEMBLY | |
| 33 | REC320145 | 320145 | PIN |
| 34 | REC327345 | 327345 | DETENT BALL |
| 35 | REC911961 | 911961 | SPRING |
| 36 | REC331880 | 331880 | PIN |
| 37 | REC334163 | 334163 | CRADLE |
| 38 | 324037 | LEVER | |
| 39 | REC322941 | 322941 | SHAFT |
| 40 | REC324766 | 324766 | THRUST WASHER |
| 41 | REC385043 | 385043 | THRUST BEARING |
| 42 | REC313448 | 313448 | PIN |
| 43 | REC323664 | 323664 | CLUTCH DOG |
| 44 | REC324369 | 324369 | SPRING |
| 45 | 436834 | PROP SHAFT | |
| 46 | REC382408 | 382408 | THRUST BEARING |
| 47 | REC314731 | 314731 | THRUST WASHER |
| 48 | REC967344 | 313446 | O-RING |
| 49 | REC382407 | 382407 | BEARING |
| 50 | REC379504 | 379504 | BEARING |
| 51 | 5000440 | BEARING CARRIER | |
| 52 | CM431708 | 431708 | ANODE |
| 53 | REC908158 | 908158 | SCREW |
| 54 | REC333957 | 333957 | TAB |
| 55 | REC350271 | 350271 | SCREW |
| 56 | REC328743 | 328743 | WASHER |
| 57 | REC127084 | 127084 | THRUST WASHER (3-BLADE) |
| 58 | REC315810 | 315810 | SPACER |
| 59 | REC314503 | 314503 | PROP NUT |
| 60 | REC314502 | 314502 | COTTER PIN |
| 61 | REC5006241 | 5006241 | COVER & SEAL ASSEMBLY |
| 62 | REC324670 | 324670 | GASKET |
| 63 | REC302325 | 302325 | SCREW |
| 64 | REC328702 | 328702 | WASHER |
| 65 | REC318372 | 318372 | O-RING |
| 66 | REC321008 | 321008 | GROMMET |
| 67 | REC22-67892A05 | 318544 | DRAINING SCREW |
| 68 | REC3855081 | 311598 | GASKET |
| 69 | REC341220 | 341220 | SCREW |
| 70 | REC437330 | 437330 | SEAL WASHER |
| 71 | 336535 | NIPPLE | |
| 72 | REC305749 | 305749 | CAP |
| 73 | REC331999 | 331999 | SCREW |
| 74 | REC341219 | 341219 | SCREW |
| 75 | REC307161 | 307161 | LOCKWASHER |
| 76 | REC331998 | 331998 | SCREW |
| 77 | REC330265 | 330265 | WASHER |
| 78 | CM393023 | 436745 | ANODE |
| 79 | REC313763 | 313715 | SCREW |
| 80 | REC320936 | 320936 | SEAL |
| 81 | REC320961 | 320961 | SEAL |
| 82 | REC330137 | 330137 | OIL SEAL |
| 83 | REC302325 | 302325 | SCREW |
| 84 | REC337061 | 337061 | SCREW |
| 85 | REC337778 | 337778 | SCREEN |
