40-50 PS 2-Zyl. Small Gearcase (89-05)
| Nummer: | Bestelnummer: | Johnson Evinrude OEM: | Omschrijving: |
| REC22660 | 397627, 345992, 332491 | PINION KIT | |
| 1 | REC438544 | 438544 | PUMP HOUSING (1989-98) |
| 1 | REC438545 | 438545 | PUMP HOUSING (1995-01) (2004-05) |
| 2 | REC302325 | 302325 | SCREW |
| 3 | REC333758 | 333758 | GROMMET |
| 4 | REC341732 | 341732 | GROMMET |
| 5 | REC310584 | 310584 | O-RING |
| 6 | REC340619 | 340619 | PUMP CUP |
| 7 | REC432941 | 432941 | IMPELLER (1989-02) |
| 8 | REC331188 | 331188 | O-RING |
| 9 | REC334897 | 334897 | KEY |
| 10 | REC324981 | 324981 | SEAL |
| 11 | REC341038 | 341038 | WEAR PLATE |
| 12 | REC336530 | 336530 | GASKET |

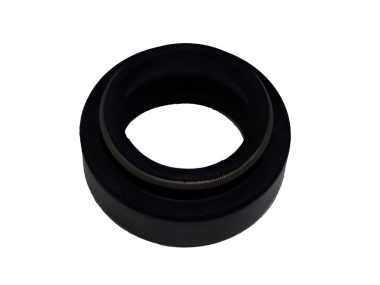

| 13 | REC342786 | 342786 | OIL SEAL |
| 14 | REC317624 | 317624 | SCREW |
| 15 | REC398874 | 398874 | BEARING |
| 16 | REC435274 | 435274 | BEARING HOUSING ASSEMBLY |
| 17 | REC25-30224 | 310327 | O-RING |
| 18 | REC333771 | 333771 | THRUST WASHER |
| 19 | REC398901 | 398901 | THRUST BEARING |
| 20 | REC382343 | 382343 | BEARING |
| 21 | REC397627 | 397627 | GEAR SET |
| 22 | REC332489 | 332489 | REVERSE GEAR |
| 23 | REC332491 | 332491 | CLUTCH DOG |
| 24 | REC320311 | 320311 | SPRING |
| 25 | REC320310 | 320310 | CROSS PIN |
| 26 | 333780 | BUSHING | |
| 27 | REC318372 | 318372 | O-RING |
| 28 | REC434588 | 434588 | COVER & BUSHING ASSEMBLY |
| 29 | REC3852928 | 913921 | O-RING |
| 30 | REC306376 | 306376 | COTTER PIN |
| 31 | REC305282 | 305282 | SCREW |
| 32 | REC330265 | 330265 | WASHER |
| 33 | REC22-67892A05 | 318544 | DRAINING SCREW |
| 34 | REC3855081 | 311598 | GASKET |
| 35 | REC316506 | 316506 | BALL |
| 36 | REC432264 | 432264 | BEARING |
| 37 | REC382407 | 382407 | BEARING |
| 38 | REC333725 | 333725 | THRUST WASHER |
| 39 | REC397538 | 397538 | THRUST BEARING |
| 40 | REC397537 | 397537 | THRUST BEARING |
| 41 | REC332514 | 332514 | THRUST WASHER |
| 42 | REC386764 | 386764 | BEARING |
| 43 | REC553126 | 553126 | O-RING |
| 44 | REC386765 | 386765 | BEARING |
| 45 | REC321467 | 321467 | OIL SEAL |
| 46 | REC320305 | 320305 | THRUST WASHER |
| 47 | REC315810 | 315810 | PROP SPACER |
| 48 | REC314503 | 314503 | PROP NUT |
| 49 | REC314502 | 314502 | COTTER PIN |
| 50 | REC439138 | 439138 | PROP SHAFT |
| 51 | REC432276 | 432276 | BEARING CARRIER |
| 52 | REC328744 | 328744 | SCREW |
| 53 | CM398873 | 398873 | ANODE |
| 53 | CM398873A | 398873 | ANODE ALUMINIUM |
| 54 | REC328694 | 328694 | SCREW |
| 55 | REC309243 | 309243 | SCREW |
| 56 | REC336982 | 336982 | O-RING |
| 57 | REC324852 | 324852 | SCREW |
| 58 | REC332584 | 332584 | SEAL |
| 59 | REC313339 | 313339 | PINION NUT |
-
Mercury Blue Seal (191833)Ab 4,87 € 4,09 €
-
Johnson Evinrude Impeller (1989-02) 40-50 PS (0432941)Ab 29,45 € 24,75 €
-
Johnson Evinrude Lager 40-75 PS (386765)28,47 € 23,93 €
-
Johnson Evinrude Grommet 40-50 PS (333758)14,70 € 12,36 €
Johnson Evinrude – Staartstuk Onderdelen – Small gearcase components. 2-cyl. Loopcharged 40-50 PS (1989-2005) vindt u bij Allesmarine.nl. Wir haben den größten Vorrat und am nächsten Tag ist alles in Ihrem Haus.
