Zylinderkopf Ersatzteile
| Nummer: | Bestelnummer: | Origineel onderdeelnummer: | Omschrijving: |
| 1 | REC425062 | 17620 | MANIFOLD: INTAKE 5.7 VORTEC |
| 2 | MP001204 | 10-806681, 10-835004, 3856765 | BOLT INTAKE MANIFOLD |
| 3 | MP0009-107 | 10-17344, 3856135 | BOLT: VALVE COVER SB |
| 4 | REC6532 | 36-18710002 | CAP: OIL FILL (1986 &+) |
| 4 | REC4804 | 17345, 3853840 | CAP: OIL FILL (1978-1985) |
| 5 | REC14200 | 79961T, 841212 | VALVE COVER: 5.0 & 5.7L (1987-88) (Bolt around perimeter) |
| 5 | REC14201 | 79961T, 841212 | VALVE COVER: 5.0 & 5.7L (1987 &-) (Bolt around perimeter) |
| 5 | REC14202 | 3856928, 809996 | VALVE COVER: 5.0 & 5.7L (1989+) (1 Seal) |
| 5 | REC14203 | 3856928, 809995 | VALVE COVER: 5.0 & 5.7L (1989+) (2 Seals) |
| 6 | FEL17930 | 11999, 27-52202, 835096 | GASKET VALVE COVER 5.0 & 5.7L (Up to 1986) (Bolt around perimeter) |
| 6 | FEL17931 | 27-17467, 3852687 | GASKET VALVE COVER 5.0 & 5.7L (Since 1987) (Central Bolts) |
| 7 | MP0007-029 | 10-11968, 3856124 | BOLT: CYLINDER HEAD SHORT |
| 8 | MP0007-028 | 10-11967, 10-11967 1, 3856123 | BOLT: CYLINDER HEAD MED |
| 9 | MP0007-027 | 10-11966, 3856122 | BOLT: CYLINDER HEAD LONG |
| 10 | MP0007-380 | 28-54797 1, 3855823 | KEY: VALVE STEM 350 |
| 11 | MP0007-378 | 3853229, 48348 | CAP: INLET VALVE SPRING |
| 12 | REC26-34217 | 26-34217, 3854956 | SEAL: VALVE STEM OIL |
| 13 | REC11500 | 24-48347, 3853227 | SPRING: VALVE |
| 13 | RM24-48347 1 | 21605360, 24-48347 1 | SPRING: VALVE (Since 1996) |
| 14 | REC70817B | 26-97664, 8M0050563, 3853226 | SEAL: INTAKE VALVE STEM |
| 15 | REC10352 | 35329, 3853158 | ROCKER ARM: VALVE |
| 16 | MP0007-122 | 11-34516, 3853004 | NUT: VALVE ROCKER ARM |
| 17 | RM59340 | 3853198, 59340 | ROTATOR: VALVE EXHAUST |
| 18 | REC938-8M0087884 | 8M0087884 / 3857663 / 3857663 | HEAD: CYLINDER (end)*620, *059 *520 |
| 19 | FEL17020 | 27-75611, 27-75611001, 3853380 | GASKET: CYLINDER HEAD 5.0L |
| 19 | FEL17030 | 27-75611, 75611001, 3853380 | GASKET: CYLINDER HEAD 5.7L |
| 20 | REC12003 | 3853157, 99948 | PUSH ROD: VALVE 5.0 & 5.7L (1987-1995) |
| 20 | REC12004 | 173391, 3863058 | PUSH ROD: VALVE 5.0 & 5.7L (Since 1996) |
| 20 | REC12000 | 35330, 99948, 3853157 | PUSH ROD: VALVE 5.0 & 5.7L (Up to 1986) |
| 21 | REC14002 | 17340T, 3853954 | LIFTER: VALVE |
| 21 | MP0017-097 | 3856127, 72638 | LIFTER: VALVE 5.0 & 5.7L (1996+) |
| 22 | REC13502 | 856368, 85803, 87284, 87824 | VALVE: EXHAUST 5.0L (38-8,7-126) (2 slot) |
| 22 | REC13508 | VALVE: EXHAUST 5.0L & 5.7L (38-9,4-125) (2 slot) | |
| 22 | REC13500 | 34528 | VALVE: EXHAUST 5.0L & 5.7L (38-8,7-125) (2 slot) |
| 22 | REC13505 | 3855808, 824317 1, 8243171 | VALVE: EXHAUST 5.0L & 5.7L VORTEC (1996+) (38-8,7-125) (1 slot) |
| 23 | REC13509 | VALVE: INTAKE 5.0L (47-8,8-125) (2 slot) | |

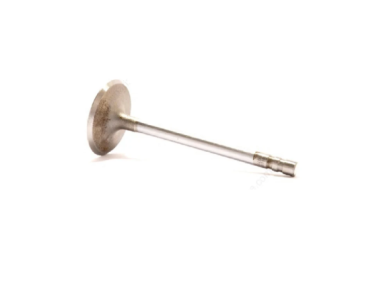

| 23 | REC13510 | 841873 | VALVE: INTAKE 5.7L (49-8,8-124) (2 slot) |
| 23 | REC13507 | 3855810, 809992 | VALVE: INTAKE 5.7L VORTEC (1996+) (49-8,8-124) (1 slot) |
| 23 | RM802555 | 802555 | VALVE: INTAKE 5.0L VORTEC (1996+) (46,5-8,7-124) (1 slot) |
| 24 | FEL17320 | 856365 | GASKET KIT: INTAKE MANIFOLD PREVORTEC |
| 24 | REC27-807473A1 | 27-807473A1, 3857662 | GASKET KIT: INTAKE MANIFOLD VORTEC |
| 25 | REC6507 | GROMMETT: VALVE COVER 5.0 & 5.7L (1986+) | |
| 25 | RECTW9760 | 835415 | GROMMETT: VALVE COVER 5.0 & 5.7L (1978-1985) |
-
MerCruiser Retainer (811662)Ab 24,59 € 20,66 €
-
MerCruiser Guide (17341T)Ab 6,84 € 5,74 €
-
GM / MerCruiser / Volvo / OMC V8 5.0L Cylinder HeadAb 639,26 € 537,19 €
-
MerCruiser Intake Manifold Assembly (860100A1)530,09 € 445,45 €
-
GM / Ford / MerCruiser V8 5.8L Zylinderkopf (FIRH6063)1.002,16 € 842,15 €
-
MerCruiser Lifter (17340T1)142,55 € 119,79 €
| Nummer: | Bestellnummer: | Original Teilenummer: | Beschreibung: |
| 1 | REC425062 | 17620 | MANIFOLD: INTAKE 5.7 VORTEC |
| 2 | MP001204 | 10-806681, 10-835004, 3856765 | BOLT INTAKE MANIFOLD |
| 3 | MP0009-107 | 10-17344, 3856135 | BOLT: VALVE COVER SB |
| 4 | REC6532 | 36-18710002 | CAP: OIL FILL (1986 &+) |
| 4 | REC4804 | 17345, 3853840 | CAP: OIL FILL (1978-1985) |
| 5 | REC14200 | 79961T, 841212 | VALVE COVER: 5.0 & 5.7L (1987-88) (Bolt around perimeter) |
| 5 | REC14201 | 79961T, 841212 | VALVE COVER: 5.0 & 5.7L (1987 &-) (Bolt around perimeter) |
| 5 | REC14202 | 3856928, 809996 | VALVE COVER: 5.0 & 5.7L (1989+) (1 Seal) |
| 5 | REC14203 | 3856928, 809995 | VALVE COVER: 5.0 & 5.7L (1989+) (2 Seals) |
| 6 | FEL17930 | 11999, 27-52202, 835096 | GASKET VALVE COVER 5.0 & 5.7L (Up to 1986) (Bolt around perimeter) |
| 6 | FEL17931 | 27-17467, 3852687 | GASKET VALVE COVER 5.0 & 5.7L (Since 1987) (Central Bolts) |
| 7 | MP0007-029 | 10-11968, 3856124 | BOLT: CYLINDER HEAD SHORT |
| 8 | MP0007-028 | 10-11967, 10-11967 1, 3856123 | BOLT: CYLINDER HEAD MED |
| 9 | MP0007-027 | 10-11966, 3856122 | BOLT: CYLINDER HEAD LONG |
| 10 | MP0007-380 | 28-54797 1, 3855823 | KEY: VALVE STEM 350 |
| 11 | MP0007-378 | 3853229, 48348 | CAP: INLET VALVE SPRING |
| 12 | REC26-34217 | 26-34217, 3854956 | SEAL: VALVE STEM OIL |
| 13 | REC11500 | 24-48347, 3853227 | SPRING: VALVE |
| 13 | RM24-48347 1 | 21605360, 24-48347 1 | SPRING: VALVE (Since 1996) |
| 14 | REC70817B | 26-97664, 8M0050563, 3853226 | SEAL: INTAKE VALVE STEM |
| 15 | REC10352 | 35329, 3853158 | ROCKER ARM: VALVE |
| 16 | MP0007-122 | 11-34516, 3853004 | NUT: VALVE ROCKER ARM |
| 17 | RM59340 | 3853198, 59340 | ROTATOR: VALVE EXHAUST |
| 18 | HEAD: CYLINDER | ||
| 19 | FEL17020 | 27-75611, 27-75611001, 3853380 | GASKET: CYLINDER HEAD 5.0L |
| 19 | FEL17030 | 27-75611, 75611001, 3853380 | GASKET: CYLINDER HEAD 5.7L |
| 20 | REC12003 | 3853157, 99948 | PUSH ROD: VALVE 5.0 & 5.7L (1987-1995) |
| 20 | REC12004 | 173391, 3863058 | PUSH ROD: VALVE 5.0 & 5.7L (Since 1996) |
| 20 | REC12000 | 35330, 99948, 3853157 | PUSH ROD: VALVE 5.0 & 5.7L (Up to 1986) |
| 21 | REC14002 | 17340T, 3853954 | LIFTER: VALVE |
| 21 | MP0017-097 | 3856127, 72638 | LIFTER: VALVE 5.0 & 5.7L (1996+) |
| 22 | REC13502 | 856368, 85803, 87284, 87824 | VALVE: EXHAUST 5.0L (38-8,7-126) (2 slot) |
| 22 | REC13508 | VALVE: EXHAUST 5.0L & 5.7L (38-9,4-125) (2 slot) | |
| 22 | REC13500 | 34528 | VALVE: EXHAUST 5.0L & 5.7L (38-8,7-125) (2 slot) |
| 22 | REC13505 | 3855808, 824317 1, 8243171 | VALVE: EXHAUST 5.0L & 5.7L VORTEC (1996+) (38-8,7-125) (1 slot) |
| 23 | REC13509 | VALVE: INTAKE 5.0L (47-8,8-125) (2 slot) | |
| 23 | REC13510 | 841873 | VALVE: INTAKE 5.7L (49-8,8-124) (2 slot) |
| 23 | REC13507 | 3855810, 809992 | VALVE: INTAKE 5.7L VORTEC (1996+) (49-8,8-124) (1 slot) |
| 23 | RM802555 | 802555 | VALVE: INTAKE 5.0L VORTEC (1996+) (46,5-8,7-124) (1 slot) |
| 24 | FEL17320 | 856365 | GASKET KIT: INTAKE MANIFOLD PREVORTEC |
| 24 | REC27-807473A1 | 27-807473A1, 3857662 | GASKET KIT: INTAKE MANIFOLD VORTEC |
| 25 | REC6507 | GROMMETT: VALVE COVER 5.0 & 5.7L (1986+) | |
| 25 | RECTW9760 | 835415 | GROMMETT: VALVE COVER 5.0 & 5.7L (1978-1985) |
