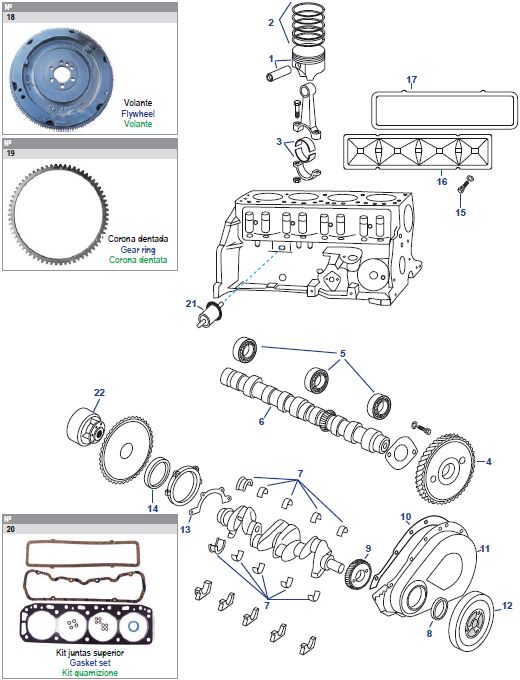

Motorblock Ersatzteile
| Nummer: | Bestelnummer: | Volvo OEM: | Omschrijving: |
| 1 | REC10001 | 733-803850T | PISTON: 181 RX 3.0L |
| 1 | REC10016 | 733-38181 | PISTON: 181 RX 3.0L 0.20 |
| 1 | RM733-810852 | 3853340 / 733-810852 | PISTON: 181 3.0LX STD |
| 1 | REC10002 | 734-4858 | PISTON: 4.1L STD |
| 1 | REC10003 | 734-4860 | PISTON: 4.1L 0.30 |
| 2 | REC11007 | 39-17464 | RING SET: PISTON 181 3.0L |
| 2 | REC11008 | 39-66217 | RING SET: PISTON 181 3.0L 0.20 |
| 2 | REC11001 | 39-17464 / 3853960 | RING SET: PISTON 181 3.0LX |
| 2 | REC11002 | 39-67132 | RING SET:. PISTON 4.1L STD |
| 2 | REC11003 | 39-67134 | RING SET:. PISTON 4.1L 0.30 |
| 3 | REC13001 | 23-85701 / 3853149 | BEARING: CONNECTING ROD 3.0L & LXSTD |
| 3 | REC13002 | 23-85704 / 3856117 | BEARING: CONNECTING ROD 3.0L & LX 0.10 |
| 3 | REC13024 | 23-85705 / 3853153 | BEARING: CONNECTING ROD 3.0L & LX 0.20 |
| 3 | RM23-804982 | 23-804982 / 3858954 | BEARING: CONNECTING ROD 3.0LX & GS |
| 3 | REC13003 | 23-85677 | BEARING: CONNECTING ROD 4.1L STD |
| 3 | REC13004 | 23-85680 | BEARING: CONNECTING ROD 4.1L 0.10 |
| 4 | REC15001 | 3852452 / 43-46745 | GEAR: CAMSHAFT 54 DIENTES (54 Teeth) |
| 5 | REC13005 | 23-43293T / 3852829 | BEARING: CAMSHAFT (Set of 4) |
| 6 | REC16001 | 3852262 / 424-3864 | CAMSHAFT: 181 RX |
| 7 | REC13006 | 23-818469001 / 3856731 | BEARING KIT: CRANKSHAFT 3.0L STD |
| 7 | REC13007 | 23-818471 / 23-818471001 | BEARING KIT: CRANKSHAFT 3.0L 0.10 |
| 7 | REC13026 | 23-818472 | BEARING KIT: CRANKSHAFT 3.0L 0.20 |
| 7 | REC13008 | 23-818469 / 23-818469001 / 23-85675 | BEARING KIT: CRANKSHAFT 4.1L STD |
| 7 | REC13009 | 23-818471 / 23-818471001 / 23-85713 | BEARING KIT: CRANKSHAFT 4.1L 0.10 |
| 8 | REC74241 | 26-97335 / 3853341 | SEAL: CRANK FRONT OIL |
| 9 | REC15003 | 43-46743 | GEAR: CRANKSHAFT 181 RX |
| 10 | REC27-49953 | 27-49953 / 3852691 | GASKET: CRANK COVER |
| 11 | REC59341A1 | 3853135 / 59341A1 | COVER: TIMING 181 |
| 12 | MP0025-004 | 3852662 / 55045T | BALANCER: HARMONIC 181 |
| 13 | REC27-14241 | 27-14241 / 27-881715 / 3852656 | GASKET: CRANKSHFT OIL SEAL HOUSING |
| 14 | REC26-14240 | 26-14240 / 26-8M0077606 / 3852657 | SEAL: CRANKSHAFT RR OIL |
| 15 | MP0014-403 | 10-34470 / 3853955 | BOLT: VALVE PUSH ROD COVER |
| 16 | MP0014-401 | 3853130 / 3853138 / 814702 | COVER: VALVE PUSH ROD |
| 17 | FEL17903 | 27-814703 / 3856443 | GASKET: VALVE PUSH ROD COVER 181 |
| 17 | FEL17926 | 27-34209 | GASKET: VALVE PUSH ROD COVER 4.1L |
| 18 | REC095009 | 220-801873 / 220-810843 / 220-8M0084188 | FLYWHEEL 12-3/4’’ |
| 19 | REC157-N | REC157-N | GEAR RING 157 Teeth ∅ 12” |
| 19 | REC1685 | 3853143 | GEAR RING 168 Teeth ∅ 13-3/4” |
| 19 | FED416-124 | N/A | GEAR RING 180 Teeth ∅ 14-1/2” |
| 20 | FEL17200 | FEL17200 | GASKET SET 2.5L / 3.0L (4L) |
| 20 | FEL17219 | FEL17219 | GASKET SET 4.1L (6 In Line) |
| 21 | REC8M0068784 | 3857532 / 815425T / 8M0068784 | OIL PRESSURE SENDER |
| 22 | COUPLER |
-
USED: Mercruiser Pulley Bolt Kit25,00 € 25,00 €
-
USED: OMC Flywheel housing Cover 913283 / 912342295,00 € 295,00 €
-

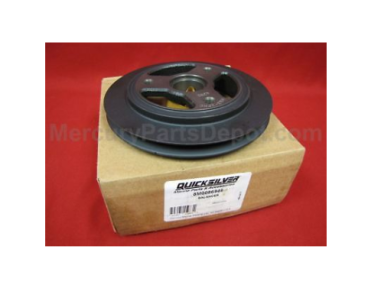

USED: Original MerCruiser Balancer (8M0086946)395,00 € 395,00 €
-
USED: GM / Mercruiser Pulley 19100791 ACB49,95 € 49,95 €
-
USED: Mercruiser Flywheel housing 45892 / 45892A2250,00 € 250,00 €
-
USED: Mercruiser balancer top diameter 203 mm250,00 € 250,00 €
-
USED: OMC 2.5L 3.0L Waterdrain tube29,95 € 29,95 €
-
OMC Flywheel cover42,95 € 42,95 €
-

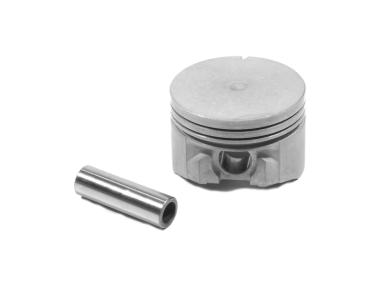

General Motors / MerCruiser Piston: 181 3.0LX (733-810852)Ab 244,88 € 205,79 €
| Nummer: | Bestellnummer: | Volvo OEM: | Beschreibung: |
| 1 | REC10001 | 733-803850T | PISTON: 181 RX 3.0L |
| 1 | REC10016 | 733-38181 | PISTON: 181 RX 3.0L 0.20 |
| 1 | RM733-810852 | 3853340 / 733-810852 | PISTON: 181 3.0LX STD |
| 1 | REC10002 | 734-4858 | PISTON: 4.1L STD |
| 1 | REC10003 | 734-4860 | PISTON: 4.1L 0.30 |
| 2 | REC11007 | 39-17464 | RING SET: PISTON 181 3.0L |
| 2 | REC11008 | 39-66217 | RING SET: PISTON 181 3.0L 0.20 |
| 2 | REC11001 | 39-17464 / 3853960 | RING SET: PISTON 181 3.0LX |
| 2 | REC11002 | 39-67132 | RING SET:. PISTON 4.1L STD |
| 2 | REC11003 | 39-67134 | RING SET:. PISTON 4.1L 0.30 |
| 3 | REC13001 | 23-85701 / 3853149 | BEARING: CONNECTING ROD 3.0L & LXSTD |
| 3 | REC13002 | 23-85704 / 3856117 | BEARING: CONNECTING ROD 3.0L & LX 0.10 |
| 3 | REC13024 | 23-85705 / 3853153 | BEARING: CONNECTING ROD 3.0L & LX 0.20 |
| 3 | RM23-804982 | 23-804982 / 3858954 | BEARING: CONNECTING ROD 3.0LX & GS |
| 3 | REC13003 | 23-85677 | BEARING: CONNECTING ROD 4.1L STD |
| 3 | REC13004 | 23-85680 | BEARING: CONNECTING ROD 4.1L 0.10 |
| 4 | REC15001 | 3852452 / 43-46745 | GEAR: CAMSHAFT 54 DIENTES (54 Teeth) |
| 5 | REC13005 | 23-43293T / 3852829 | BEARING: CAMSHAFT (Set of 4) |
| 6 | REC16001 | 3852262 / 424-3864 | CAMSHAFT: 181 RX |
| 7 | REC13006 | 23-818469001 / 3856731 | BEARING KIT: CRANKSHAFT 3.0L STD |
| 7 | REC13007 | 23-818471 / 23-818471001 | BEARING KIT: CRANKSHAFT 3.0L 0.10 |
| 7 | REC13026 | 23-818472 | BEARING KIT: CRANKSHAFT 3.0L 0.20 |
| 7 | REC13008 | 23-818469 / 23-818469001 / 23-85675 | BEARING KIT: CRANKSHAFT 4.1L STD |
| 7 | REC13009 | 23-818471 / 23-818471001 / 23-85713 | BEARING KIT: CRANKSHAFT 4.1L 0.10 |
| 8 | REC74241 | 26-97335 / 3853341 | SEAL: CRANK FRONT OIL |
| 9 | REC15003 | 43-46743 | GEAR: CRANKSHAFT 181 RX |
| 10 | REC27-49953 | 27-49953 / 3852691 | GASKET: CRANK COVER |
| 11 | REC59341A1 | 3853135 / 59341A1 | COVER: TIMING 181 |
| 12 | MP0025-004 | 3852662 / 55045T | BALANCER: HARMONIC 181 |
| 13 | REC27-14241 | 27-14241 / 27-881715 / 3852656 | GASKET: CRANKSHFT OIL SEAL HOUSING |
| 14 | REC26-14240 | 26-14240 / 26-8M0077606 / 3852657 | SEAL: CRANKSHAFT RR OIL |
| 15 | MP0014-403 | 10-34470 / 3853955 | BOLT: VALVE PUSH ROD COVER |
| 16 | MP0014-401 | 3853130 / 3853138 / 814702 | COVER: VALVE PUSH ROD |
| 17 | FEL17903 | 27-814703 / 3856443 | GASKET: VALVE PUSH ROD COVER 181 |
| 17 | FEL17926 | 27-34209 | GASKET: VALVE PUSH ROD COVER 4.1L |
| 18 | REC095009 | 220-801873 / 220-810843 / 220-8M0084188 | FLYWHEEL 12-3/4’’ |
| 19 | REC157-N | REC157-N | GEAR RING 157 Teeth ∅ 12” |
| 19 | REC1685 | 3853143 | GEAR RING 168 Teeth ∅ 13-3/4” |
| 19 | FED416-124 | N/A | GEAR RING 180 Teeth ∅ 14-1/2” |
| 20 | FEL17200 | FEL17200 | GASKET SET 2.5L / 3.0L (4L) |
| 20 | FEL17219 | FEL17219 | GASKET SET 4.1L (6 In Line) |
| 21 | REC8M0068784 | 3857532 / 815425T / 8M0068784 | OIL PRESSURE SENDER |
| 22 | COUPLER |
