Marina R II Dual LED Rocker Switch (IP56 Watertight) - Without 'Teggle' / Switch

Artikel
Ab 11,75 € 9,88 €

Zur Wunschliste hinzufügen
  • Schnelle Lieferung aus unserem eigenen Lager
  • Größtes Online-Angebot
  • Premium Dealer
Description

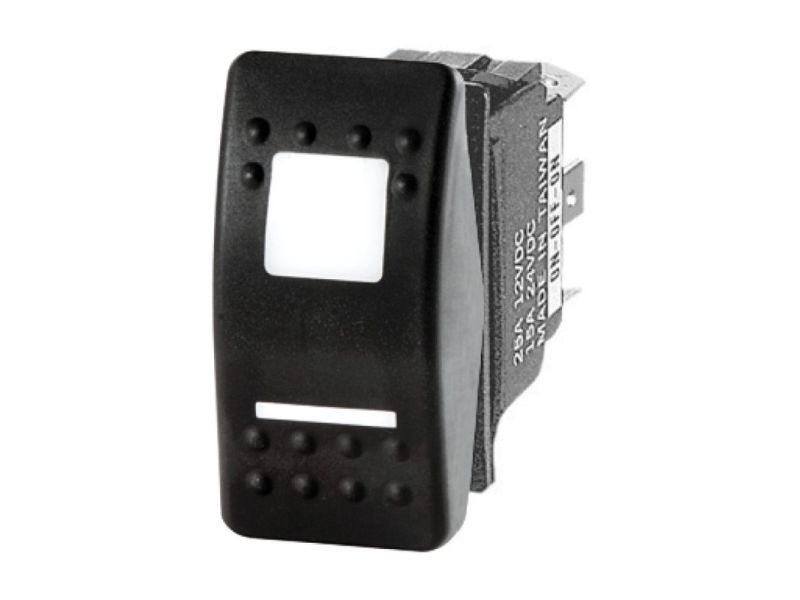

Marina R II Dual LED Rocker Switch - Without 'Teggle' / Switch

IP56 watertight.

21.5 x 36.8-mm rectangular bore required for installation.

Maximum capacity: 20 A at 12 V and 12 A at 24 V

Supplied with double red LED: one for the symbol, which is always on, the second for a special slit under the symbol that switches on when thesymbol indicator is activated.

12 V / 24 V.

Article
number
VersionFunctionTerminalsLED
14.298.01UnipolarON - OFF3Yes
14.298.02Unipolar(ON) - OFF3Yes
14.298.03Bipolar(ON) - OFF - (ON)6No
14.298.04UnipolarON - OFF - ON4Yes
14.298.05Unipolar(ON) - OFF - (ON)4Yes
14.298.06UnipolarON - OFF - (ON)4Yes
14.298.07UnipolarON1 - OFF - ON1+24No

(ON) = with spring return.

14.298.02
Recommended for horns and toilet unit controls

14.298.03
Recommended for hydraulic gangplanks, windlasses, flaps and trims

14.298.04
Recommended for bilge pumps (automatic/manual), navigation and mast head lights

14.298.05
Recommended for for hydraulic gangways, anchor winches and flaps

14.298.06
Recommended for for bilge pumps (automatic and manual mode)

14.298.07
ON1 = circuit 1
ON1+2 = circuit 1+2

navigation lights for vessels up to 12 m:
ON1 = white 360°
ON1+2 = white 360°+red/green 112.5°
