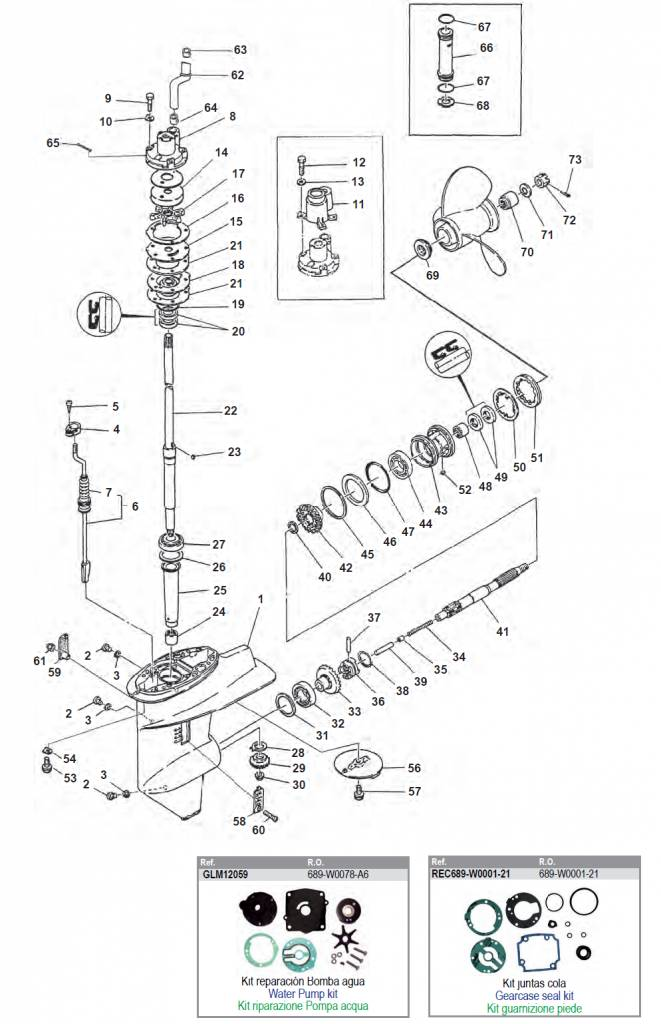

Yamaha 20C/CM - 25 D/DE - C25HP - 30A - C30 Saitenhalter Teile finden Sie bei Allesmarine.nl. Wir haben den größten Vorrat und am nächsten Tag ist alles in Ihrem Haus.
Nr | Bestellnummer: | Yamaha OEM: | Beschreibung: |
GLM87827 | 689-W0001-21-00 | Seal kit | |
REC689-W0078-04 | 689-W0078-04-00 | Waterpomp service kit | |
REC689-W0078-A6 | 689-W0078-A6-00 | Waterpomp service kit | |
2 | MAL9-72653 | 90340-08M04-00 | Plug |
3 | REC90430-08020-00 | 90430-08020-00 | Gasket |
8 | GLM12076 | 689-44311-03-00 | Housing W.P. |
9 | GLM22507 | 90101-06M56-00 | Bolt |
14 | REC689-W4432-01 | 689-W4432-02-00 | Insert Cup |
15 | REC689-44323-00 | 689-44324-A0-00 | Plate |
15 | REC689-44323-00 | 689-44323-03-00 | Plate |
16 | GLM38109 | 689-44324-A0-00 | Gasket |
17 | REC689-44352-02 | 689-44352-02-00 | Impeller |
19 | GLM84285 | 93210-40M10-00 | O-ring |
20 | REC93101-22067 | 93101-22067-00 | Oil seal |
21 | GLM38108 | 689-44316-A0-00 | Gasket |
21 | GLM38009 | 689-44315-A0-00 | Gasket |
22 | REC689-45501-01 | 689-45501-00-00 | Drive shaft |
23 | GLM89589 | 664-44338-00 | Key |
24 | REC93315-017U4 | 93315-017U4-00 | Bearing |
29 | REC689-45551-00 | 689-45551-00-00 | Gear |
30 | REC90179-09M02 | 90179-09M02-00 | Nut |
32 | REC93332-00005 | 93332-00005-00 | Bearing |
33 | REC689-45560-00 | 689-45560-00-00 | Gear |
36 | REC664-45631-01 | 664-45631-01-00 | Clutch |
37 | REC90250-05010 | 90250-05010-00 | Pin |
38 | REC648-45633-00 | 648-45633-00-00 | Sping |
39 | REC648-45635-00 | 648-45635-00-00 | Pin |
40 | REC90201-20417 | 90201-20417-00 | Waser |
41 | REC689-45611-00 | 689-45611-00-00 | Shaft propeller |
42 | REC689-45570-00 | 689-45571-00-00 | Gear R.V |
44 | REC93306-00612 | 93306-00612-00 | Bearing |
48 | REC93315-22004 | 93315-22004-00 | Bearing |
49 | REC93101-20M07 | 93101-20M07-00 | Oil seal |
50 | 14-84814M | 90214-45M02-00 | WASHER,CLAW |
51 | REC664-45384-00 | 664-45384-00-00 | Nut |
52 | REC90282-04010 | 90282-04010-00 | Key |
56 | CM664-45371-01 | 664-45371-01-00 | Anode |
63 | GLM38305 | 689-44366-00-00 | Superior Tubo agua |
64 | GLM12869 | 626-44365-01-00 | Inferior Tubo agua |
69 | REC664-45987-00 | 664-45987-01-00 | Spacer |
70 | REC689-45997-00 | 689-45997-00-00 | Spacer |
71 | GLM21224 | 92990-14200-00 | Waser |
72 | REC90171-14013-00 | 90171-14013-00 | Nut |
73 | REC91490-30030 | 91490-30030-00 | Cotter pin |
SOL3211-099-09 | 664-45941-01-EL | Propeller |
